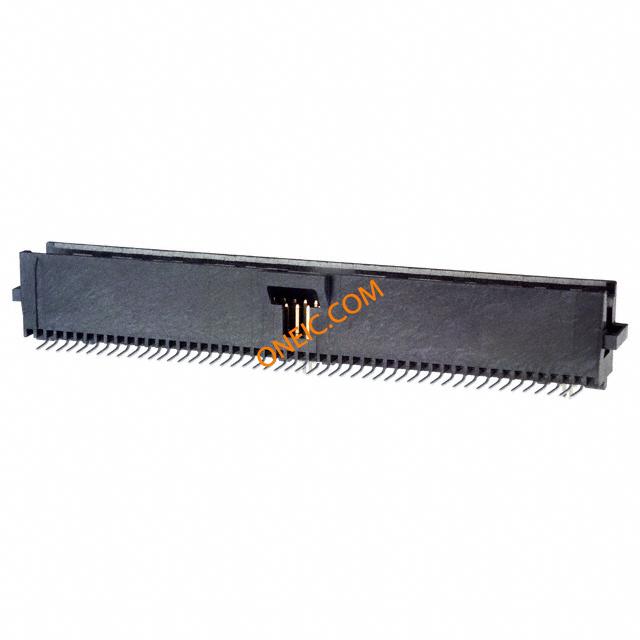

6-104549-0

点击放大查看

6-104549-0

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 100 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN HEADER 100PS .050" STR GOLD Header vertical 100way AmpModu system 50 Headers & Wire Housings 100 POS SMT HDR VERT DUAL ROW Conn Shrouded Header HDR 100 POS 1.27mm Solder ST SMD Tube Product Highlights:Header AssemblyNumber of Positions = 100Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU SHROUDED HEADER HEADERASSEMBLY,AMPMODU,SYSTEM50,100POSITION,DUALROW,SHROUDED,VERTICAL TE Connectivity AMPMODU System 50 系列 2.54mm节距 100路 (2排) 直 PCB 针座, 焊接端接 , 表面安装 100 SYS50 S/M HDR DRST SHRDSN
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU产品类别Headers & Wire Housings
标准包装数量Rail / Tube工厂包装数量7

合规参数

RoHSLead free / RoHS Compliant海关税号85366910
无铅定义Reflow solder capable to 245°C, Reflow solder capable to 260°CRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - AMPMODU System 50 Series额定电压500 V
供电电压30击穿电压500
绝缘电阻5,000最小供电电压30VAC

机械参数

颜色Black深度8.73 mm
间距1.27 mm高度11.12 mm
重量0.004镀层Tin
包装方式Tube遮蔽类型Yes
排间距0.100" (2.54mm)端接方式Solder
引脚间距:0.127mm外壳颜色Black
安装类型Vertical连接器类型Shrouded
接触镀层Gold Over Nickel安装样式Surface Mount
排数2高度（英寸）0.435" (11.05mm)
触头材料Phosphor Bronze壳体材料Thermoplastic Glass Reinforced
总长度69.69 mm刀片材料Copper Alloy
包装数量Tube主要材料InterconnectSystem
端接样式SMD触点数100
接触件端接:Surface Mount Vertical位数100
接触长度 - 配合0.125" (3.18mm)端子柱长度2.54 [0.100]
接触镀层厚度30µin (0.76µm)

产品信息

类型Shrouded Header连接器性别HDR
系列AMPMODU产品特性Board Lock
制造商全称AMP产品子类型Header Assembly
加载位置数All

环境参数

温度范围-65 – +105工作温度-65C to 105C

文档与媒体

在线文档
6-104549-0?RQPN=6-104549-0

相关型号

104550-9

104550-9

te connectivity / amp

Conn Socket Strip RCP 100 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN RECEPT 100POS .050 DUAL SMD Board to Board & Mezzanine Connectors SYS50 SMT 100P RECPT 756 Conn Socket Strip RCP 100 POS 1.27mm Solder ST SMD Tube Product Highlights:Receptacle AssemblyNumber of Positions = 100Number of Rows = DualVertical Mount AnglePCB Mount Style = Surface MountSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU AMPMODU System 50 100 Position Dual Row 1.27 mm Pitch Vertical Receptacle - SMT 100 SYS50 SURFMNT DRST RCPT

¥132.0560
详情
2-111196-4

2-111196-4

te connectivity / amp

Conn IDC Connector RCP 100 POS 1.27mm IDT RA Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 100PS .050X.100" IDC Connector IDC 100 way socket System 50 Headers & Wire Housings 100 POS RECEPT IDC DUAL ROW Conn IDC Connector RCP 100 POS 1.27mm IDT RA Cable Mount Product Highlights:Receptacle AssemblyNumber of Positions = 100Number of Rows = DualWith Mating Connector LockWire/Cable Type = Ribbon CableSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU WIRE-BOARD CONNECTOR RECEPTACLE 100POS 1.27MM Connectors,ribboncablereceptacle,doublerow,100position TE Connectivity AMP-LATCH System 50 系列 2行 100路 1.27mm节距 直角 母 IDC 连接器 , 电缆安装 100 RCPT SYSTEM 50, LEAD FREE

¥45.3000
详情
487937-1

487937-1

te connectivity / amp

Conn Housing RCP 100 POS 1.27mm Crimp ST Cable Mount .050 X .100 AMPMODU System 50 CONN RCPT 100POS.050 DUAL W/LTCH FFC & FPC Connectors 100 HOUSING FFC 50CL .050 X .100 AMPMODU System 50 Product Highlights:HousingNumber of Positions = 100Number of Rows = DualWith Mating Connector LockNormal Insertion ForceSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 100 HOUSING FFC 50CL DR LATCH

¥35.6068
详情

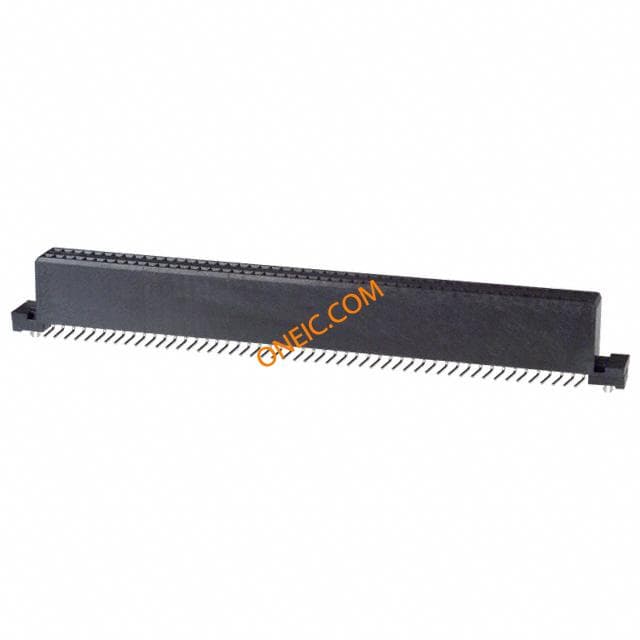

5-104550-9
