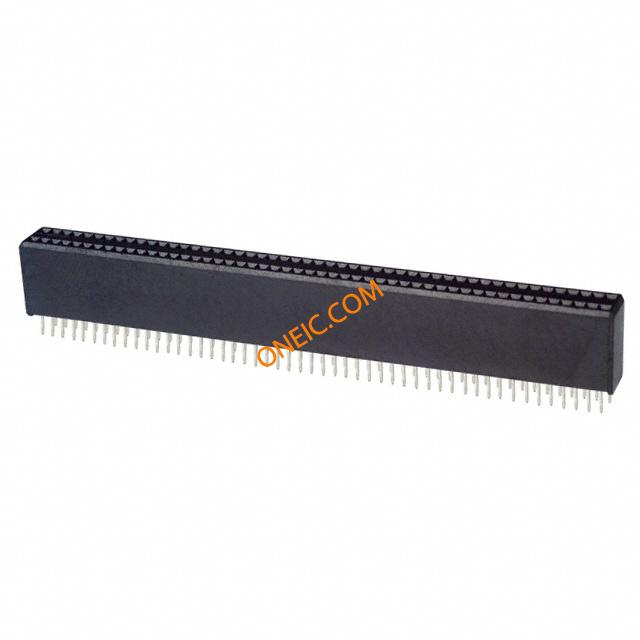

5-104078-8

点击放大查看

5-104078-8

制造商
TE Connectivity Ltd.
描述Conn Socket Strip RCP 100 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN RECEPT 100POS.050 VERT DUAL Board to Board & Mezzanine Connectors 100 POS RECEPT VERT DUAL ROW Conn Socket Strip RCP 100 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Receptacle AssemblyNumber of Positions = 100Number of Rows = DualVertical Mount AnglePCB Mount Style = Through HoleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU TE Connectivity AMPMODU System 50 系列 2行 100路 垂直 1.27mm节距 印刷电路板安装 印刷电路板插座, 板对板 100 SYS 50 RCPT ASSY DRST SN
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU产品类别Board to Board & Mezzanine Connectors
标准包装数量Rail / Tube工厂包装数量8

合规参数

RoHSLead free / RoHS Compliant标准CSA LR7189, UL E28476
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压30 V供电电压30
输入电阻5000额定交流电压30
击穿电压500最大额定电流1A
绝缘电阻5,000最小供电电压30VAC

机械参数

颜色Black深度5.02 mm
间距0.050" (1.27mm)高度8.89 mm
包装方式Tube壳体颜色黑色
轴径尺寸不带方向垂直
排间距0.100" (2.54mm)端接方式Solder
引脚间距0.100" (2.54mm)外壳颜色Black
安装类型Vertical连接器类型Receptacle
接触镀层Tin over Nickel安装样式Thru Hole
排数Dual插入件材料铜合金
触头材料Phosphor Bronze壳体材料Thermoplastic
安装特性压具柱体包装数量Tube
面板安装类型通孔端接排数焊接
端接样式Through Hole板面高度0.350" (8.89mm)
触点数100位数100
兼容外壳尺寸（如TM-700等）插头组件触头长度-柱2.54 mm [ .1 in ]
安装高度（最大）0.350" (8.89mm)表面贴装焊盘尺寸Without
端子柱长度2.54 [0.100]接触镀层厚度30µin (0.76µm)
每排/每行位置数All

产品信息

类型Socket Strip连接器性别RCP
系列AMPMODU SYSTEM 50制造商全称AMP
产品子类型Receptacle Assembly装配配置Board Standoff
加载位置数All

环境参数

温度范围-65 – +105工作温度-65C to 105C

文档与媒体

在线文档
5-104078-8?RQPN=5-104078-8

相关型号

6-104549-0

6-104549-0

te connectivity / amp
