6-104068-7

点击放大查看

6-104068-7

制造商
TE Connectivity Ltd.

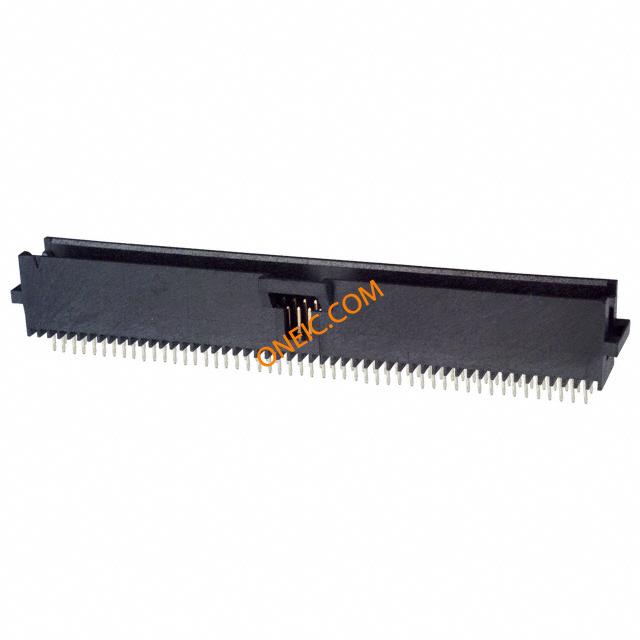

描述Conn Shrouded Header HDR 100 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER VRT .050 100POS 30AU Headers & Wire Housings 100 POS HDR VERT DUAL ROW Conn Shrouded Header HDR 100 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 100Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU TE Connectivity AMPMODU System 50 系列 1.27mm节距 100路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 100 SYSTEM 50 HDR DRST SHRD
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU产品类别Headers & Wire Housings
标准包装数量Rail / Tube工厂包装数量7

合规参数

RoHSLead free / RoHS Compliant标准CSA LR7189, UL E28476
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

输入端150 – 250额定电压30 VAC
供电电压30额定交流电压30
连接器阻抗制动器闭锁频率稳定度不带
击穿电压500最大额定电流1A
绝缘电阻5,000最小供电电压30VAC
保护额定电压（VPR）500 V

机械参数

颜色Black深度8.73 mm
间距1.27 mm高度9.9 mm
底座类型带有包装方式Tube
遮蔽类型Yes壳体颜色黑色
引脚样式圆形, 圆形方向直
排间距0.100" (2.54mm)端接方式Solder
引脚间距0.100" (2.54mm)外壳颜色Black
安装类型Vertical连接器类型Shrouded
接触镀层Gold Over Nickel安装样式Thru Hole
排数2外壳材料（壳体）2- 面
高度（英寸）0.390" (9.91mm)插入件材料铜合金
锁定特性带有触头材料Phosphor Bronze
壳体材料Thermoplastic总长度69.69 mm
包装数量Tube面板安装类型通孔
端接排数焊接端接样式Through Hole
外径.381 mm [ .015 in ]板面高度0.125" (3.18mm)
触点数100端接表面处理带罩
位数100触头长度-柱0.390" (9.91mm)
配接堆叠高度0.450" (11.43mm)安装孔直径带有
接触长度 - 配合0.125" (3.18mm)端子柱长度2.54 [0.100]
接触镀层厚度30µin (0.76µm)堆叠高度（配合）0.450" (11.43mm)
静电放电屏蔽不带每排/每行位置数All

产品信息

备注**Circuit identification feature omitted on 10 and 12 position headers.类型Shrouded Header
连接器性别HDR系列AMPMODU System 50
覆盖范围覆盖钥匙类型否
制造商全称AMP产品子类型Header Assembly
选择性装载否输出配置Through Hole
加载位置数All

环境参数

密封等级不带温度范围-65 – +105
工作温度-65C to 105C封装热阻1.397 mm [ .055 in ]

文档与媒体

在线文档
TE.Connect?C=1&PN=6-104068-7&M=BYPN&LG=1&I=13
在线文档
6-104068-7?RQPN=6-104068-7

相关型号

2-111196-4

2-111196-4

te connectivity / amp

Conn IDC Connector RCP 100 POS 1.27mm IDT RA Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 100PS .050X.100" IDC Connector IDC 100 way socket System 50 Headers & Wire Housings 100 POS RECEPT IDC DUAL ROW Conn IDC Connector RCP 100 POS 1.27mm IDT RA Cable Mount Product Highlights:Receptacle AssemblyNumber of Positions = 100Number of Rows = DualWith Mating Connector LockWire/Cable Type = Ribbon CableSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU WIRE-BOARD CONNECTOR RECEPTACLE 100POS 1.27MM Connectors,ribboncablereceptacle,doublerow,100position TE Connectivity AMP-LATCH System 50 系列 2行 100路 1.27mm节距 直角 母 IDC 连接器 , 电缆安装 100 RCPT SYSTEM 50, LEAD FREE

¥45.3000
详情
487937-1

487937-1

te connectivity / amp

Conn Housing RCP 100 POS 1.27mm Crimp ST Cable Mount .050 X .100 AMPMODU System 50 CONN RCPT 100POS.050 DUAL W/LTCH FFC & FPC Connectors 100 HOUSING FFC 50CL .050 X .100 AMPMODU System 50 Product Highlights:HousingNumber of Positions = 100Number of Rows = DualWith Mating Connector LockNormal Insertion ForceSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 100 HOUSING FFC 50CL DR LATCH

¥35.6068
详情
6-104068-7

6-104068-7

te connectivity / amp

Conn Shrouded Header HDR 100 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER VRT .050 100POS 30AU Headers & Wire Housings 100 POS HDR VERT DUAL ROW Conn Shrouded Header HDR 100 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 100Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU TE Connectivity AMPMODU System 50 系列 1.27mm节距 100路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 100 SYSTEM 50 HDR DRST SHRD

¥87.9580
详情
1-111196-6

1-111196-6

te connectivity / amp

Conn IDC Connector RCP 100 POS 1.27mm IDT RA Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 100POS .050X.100 IDC Headers & Wire Housings 100P RECEPTACLE 300 Conn IDC Connector RCP 100 POS 1.27mm IDT RA Cable Mount Product Highlights:Receptacle AssemblyNumber of Positions = 100Number of Rows = DualWith Mating Connector LockWire/Cable Type = Ribbon CableSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 100 RCPT SYSTEM 50 30 DPLX

¥82.3888
详情
5-104744-5

5-104744-5

te connectivity / amp

Conn Socket Strip RCP 100 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN RECEPT 100POS .050 VERT T/H Board to Board & Mezzanine Connectors 100 SYS 50 RCPT ASSY DRST SN Conn Socket Strip RCP 100 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Connector Type = Connector - Receptacle100 PositionsNumber of Rows = DualVertical Mount AnglePCB Mount Style = Through HoleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 100 SYS 50 RCPT ASSY DRST SN

¥70.6520
详情
5-104078-8

5-104078-8

te connectivity / amp

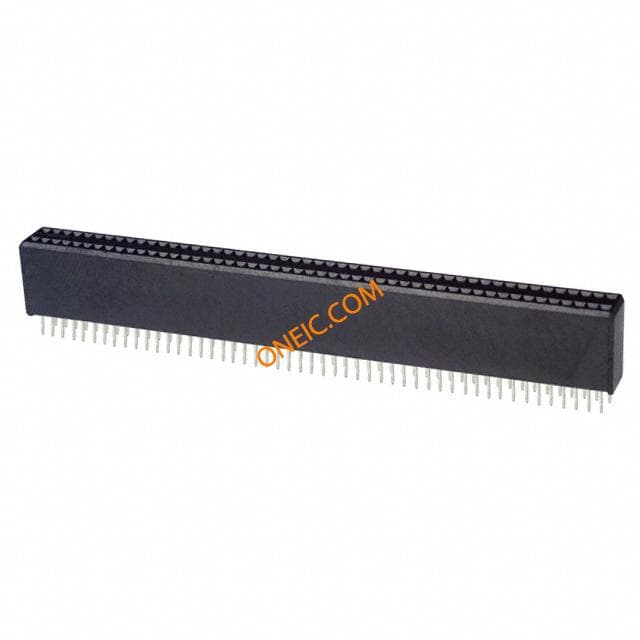

Conn Socket Strip RCP 100 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN RECEPT 100POS.050 VERT DUAL Board to Board & Mezzanine Connectors 100 POS RECEPT VERT DUAL ROW Conn Socket Strip RCP 100 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Receptacle AssemblyNumber of Positions = 100Number of Rows = DualVertical Mount AnglePCB Mount Style = Through HoleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU TE Connectivity AMPMODU System 50 系列 2行 100路 垂直 1.27mm节距 印刷电路板安装 印刷电路板插座, 板对板 100 SYS 50 RCPT ASSY DRST SN
