1-104549-0

点击放大查看

1-104549-0

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 100 POS 1.27mm Solder ST SMD Tube Headers & Wire Housings SYS50 SMT HDR 100P SHROUDED .050 X .100 AMPMODU System 50 CONN HEADER VERT .050 100POS AU Conn Shrouded Header HDR 100 POS 1.27mm Solder ST SMD Tube Product Highlights:Header AssemblyNumber of Positions = 100Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 100 SYS50 SRFMNT HDR DRST SHRD
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU其他名称A3260
产品类别Headers & Wire Housings标准包装数量Rail / Tube
工厂包装数量7

合规参数

RoHSNo无铅定义Reflow solder capable to 245°C, Reflow solder capable to 260°C
标准编号CSA LR7189, UL E28476RoHS/ELV合规状态ELV compliant, 5 of 6 Compliant
材料阻燃等级UL 94V-0

电气参数

额定电压30 VAC供电电压30
额定交流电压30连接器阻抗镍打底镀锡铅
击穿电压500最大额定电流1
绝缘电阻5,000保护额定电压（VPR）500 VAC

机械参数

颜色Black间距1.27 mm
镀层Tin-Lead over Nickel底座类型带有
锁定类型带有包装方式Tube
遮蔽类型Yes壳体颜色黑色
稳定器不带排间距0.100" (2.54mm)
端接方式Solder外壳颜色Black
安装类型Vertical连接器类型Shrouded
接触镀层Gold Over Nickel安装样式SMD/SMT
排数2外壳材料（壳体）2- 面
电路板厚度1.57高度（英寸）0.435" (11.05mm)
插入件材料磷青铜触头材料Phosphor Bronze
壳体材料Thermoplastic Glass Reinforced总长度.05
刀片材料Copper Alloy安装特性压具柱体
包装数量Tube面板安装类型通孔
端接样式插针第一连接器类型带罩
外径.381 mm [ .015 in ]触点数100
端接表面处理带有位数100
安装孔直径带有接触长度 - 配合0.125" (3.18mm)
端子柱长度2.54 [0.100]接触镀层厚度30µin (0.76µm)
螺钉材料 - 镀层铜合金静电放电屏蔽不带
第一连接器安装特征否接触件镀层 - 插柱（配合端）哑光

产品信息

类型Shrouded Header连接器性别HDR
系列AMPMODU System 50产品特性Board Lock
钥匙类型否制造商全称AMP
产品子类型Headers - Shrouded加载位置数All

环境参数

密封等级不带温度范围-65 – +105
防护等级带罩工作温度-65 – 105

文档与媒体

在线文档
1-104549-0
在线文档
1-104549-0?RQPN=1-104549-0

相关型号

104550-9

104550-9

te connectivity / amp

Conn Socket Strip RCP 100 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN RECEPT 100POS .050 DUAL SMD Board to Board & Mezzanine Connectors SYS50 SMT 100P RECPT 756 Conn Socket Strip RCP 100 POS 1.27mm Solder ST SMD Tube Product Highlights:Receptacle AssemblyNumber of Positions = 100Number of Rows = DualVertical Mount AnglePCB Mount Style = Surface MountSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU AMPMODU System 50 100 Position Dual Row 1.27 mm Pitch Vertical Receptacle - SMT 100 SYS50 SURFMNT DRST RCPT

¥132.0560
详情
2-111196-4

2-111196-4

te connectivity / amp

Conn IDC Connector RCP 100 POS 1.27mm IDT RA Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 100PS .050X.100" IDC Connector IDC 100 way socket System 50 Headers & Wire Housings 100 POS RECEPT IDC DUAL ROW Conn IDC Connector RCP 100 POS 1.27mm IDT RA Cable Mount Product Highlights:Receptacle AssemblyNumber of Positions = 100Number of Rows = DualWith Mating Connector LockWire/Cable Type = Ribbon CableSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU WIRE-BOARD CONNECTOR RECEPTACLE 100POS 1.27MM Connectors,ribboncablereceptacle,doublerow,100position TE Connectivity AMP-LATCH System 50 系列 2行 100路 1.27mm节距 直角 母 IDC 连接器 , 电缆安装 100 RCPT SYSTEM 50, LEAD FREE

¥45.3000
详情
487937-1

487937-1

te connectivity / amp

Conn Housing RCP 100 POS 1.27mm Crimp ST Cable Mount .050 X .100 AMPMODU System 50 CONN RCPT 100POS.050 DUAL W/LTCH FFC & FPC Connectors 100 HOUSING FFC 50CL .050 X .100 AMPMODU System 50 Product Highlights:HousingNumber of Positions = 100Number of Rows = DualWith Mating Connector LockNormal Insertion ForceSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 100 HOUSING FFC 50CL DR LATCH

¥35.6068
详情

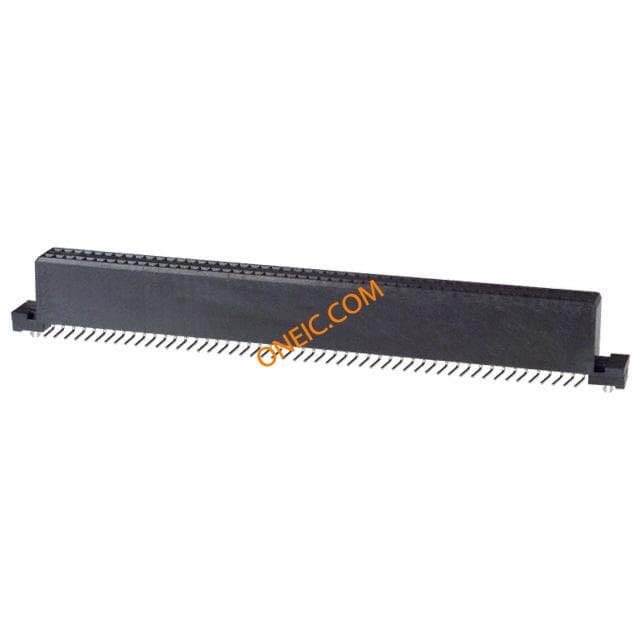

5-104550-9
