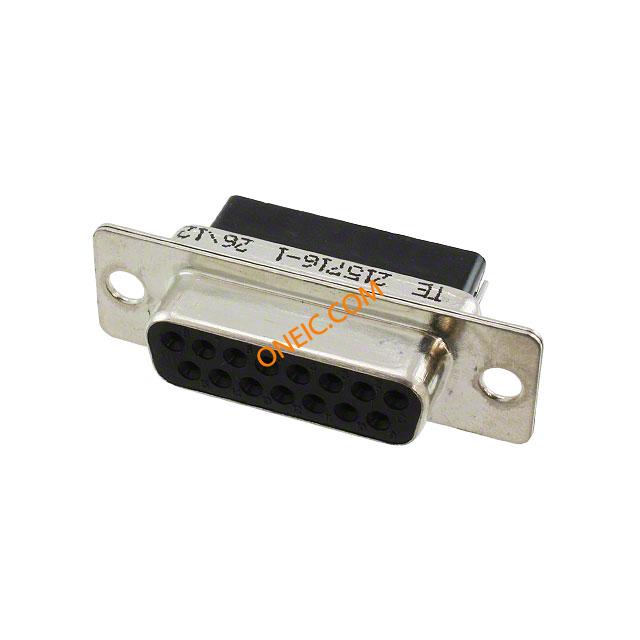

215716-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 15 POS Crimp ST Cable Mount 15 Terminal 1 Port D-Sub Standard Connectors 15P HDP20 REC ASSY Standard Cable Connectors CONN RCPT 15POS CRIMP SNAP METAL Conn D-Subminiature SKT 15 POS Crimp ST Cable Mount 15 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 15ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub SOCKET, DSUB, DA 15WAY |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366990 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite HD-20 Series | ||
机械参数
| 颜色 | Black | 重量 | 6.973 |
| 包装方式 | Bulk | 外壳尺寸 | 2 |
| 端接方式 | Crimp | 触点尺寸 | 20 |
| 触头类型 | Signal | 第二连接器 | With |
| 安装类型 | Cable Mount | 外壳镀层 | Tin |
| 连接器类型 | Crimp Snap | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | Panel | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 插入件材料 | Nylon | 锁定特性 | Mounting Holes |
| 本体材料 | :Steel | 接地凹痕 | Without |
| 端接样式 | Solder | 触点数 | 15 |
| 接触件端接 | :Solder | 介电材料 | Polyamide (PA), Nylon, Glass Filled |
| 位数 | 15 | 外壳尺寸-插件 | Front Metal Shell |
| 外壳材料及表面处理 | Steel, Tin Plated | 外壳尺寸，连接器布局 | 2 (DA, A) |
产品信息
| 备注 | Version with Grounding Tab for FASTON Receptacle. | 类型 | D-Subminiature |
| 等级 | Standard | 连接器性别 | SKT |
| 系列 | HDP-20 (Crimp Snap) | 产品子类型 | Connector |
文档与媒体
相关型号
6-66505-0
TE Connectivity / AMP
D-Sub Contacts SOCKET 28-24 REEL CONN SOCKET 24-28AWG GOLD CRIMP
205201-7
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece D-Sub Contacts SOCKET 24-20 Standard Cable Connectors CONN SOCKET 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 Socket Contact 24-20AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = CrimpWire Range = 0.2 - 0.6 [24-20] mm² [AWG]Search Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONTACT, SOCKET, 24-20AWG, CRIMP AMPLIMITEHDP-20SocketContact,24-20AWG,GoldFlashoverNickel,Crimp SOCKET CONT.
745253-6
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece D-Sub Contacts CRIMP SOCKET 26-22 BULK Standard Cable Connectors CONN D-SUB SOCKET 22-26AWG AU AMPLIMITE HDP-20 socket crimp contact Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = CrimpWire Insulation Diameter = 1.27 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONNTACT, D-SUB, FEMALE, 26-22AWG HDP-20ConnectorContacts;PrecisionFormed;Socket;26-22AWG HDP20 Series 22-26 AWG Gold Flash Crimp Socket D-Sub Contact TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 母 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 26 → 22 AWG 20 DF SOCKET CONT L.P.
167293-1
te connectivity / amp
Conn Housing PL 15 POS Crimp ST D-Sub Standard Connectors 15P HDP20 PLUG ASSY Standard Cable Connectors CONN D-SUB PLUG 15POS CRIMP SNAP BOX FOR D-SUB MALE 15 Conn Housing PL 15 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 15PlugWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub PLUG HOUSING, D, 15WAY D-Sub; PIN:15; male; w/o terminals; for cable; B:8.4mm; C:33.3mm D-Sub crimp plug-housing 15P, 167293-1, TE Connectivity TE Connectivity AMPLIMITE HDP-20系列 15路 直 压接式 D-sub 连接器, 插头 15P.HDP20 PLUG ASSY
2-111196-4
te connectivity / amp

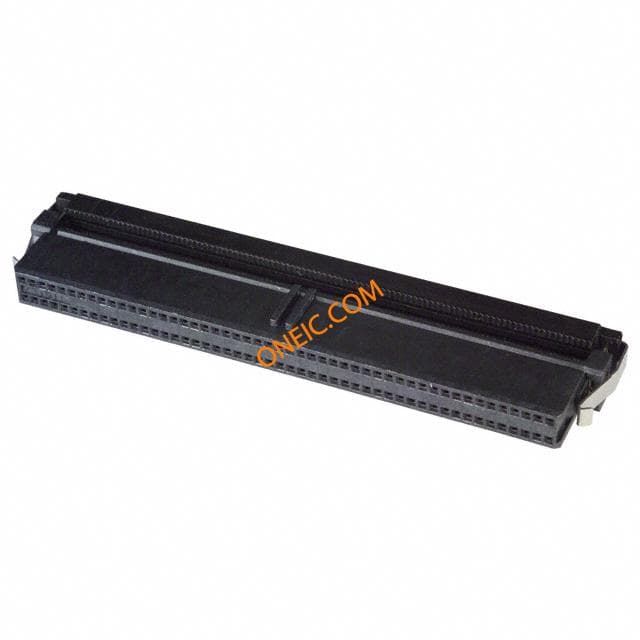

Conn IDC Connector RCP 100 POS 1.27mm IDT RA Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 100PS .050X.100" IDC Connector IDC 100 way socket System 50 Headers & Wire Housings 100 POS RECEPT IDC DUAL ROW Conn IDC Connector RCP 100 POS 1.27mm IDT RA Cable Mount Product Highlights:Receptacle AssemblyNumber of Positions = 100Number of Rows = DualWith Mating Connector LockWire/Cable Type = Ribbon CableSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU WIRE-BOARD CONNECTOR RECEPTACLE 100POS 1.27MM Connectors,ribboncablereceptacle,doublerow,100position TE Connectivity AMP-LATCH System 50 系列 2行 100路 1.27mm节距 直角 母 IDC 连接器 , 电缆安装 100 RCPT SYSTEM 50, LEAD FREE
