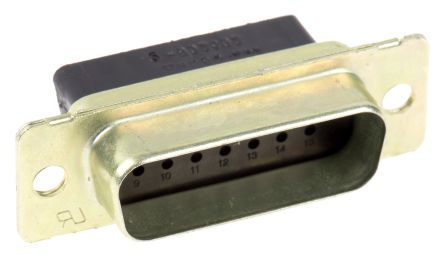

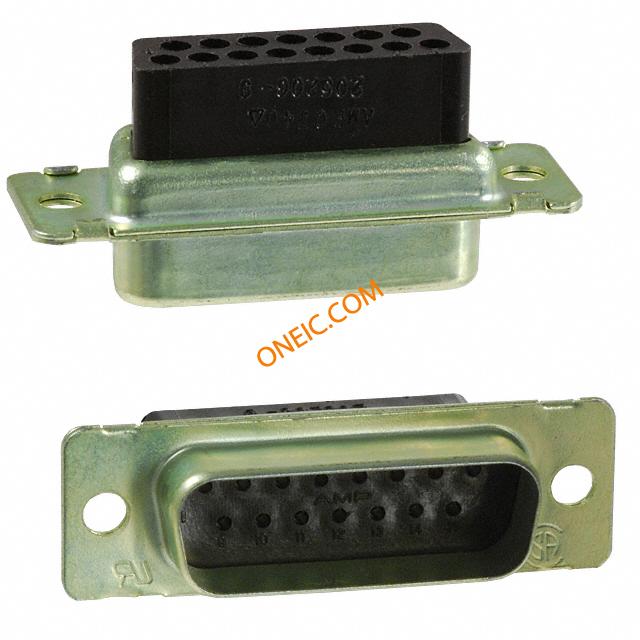

205206-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 15 POS Crimp ST Cable Mount D-Sub Standard Connectors 15P PLUG ZINC Standard Cable Connectors CONN D-SUB HOUSING PLUG 15POS AMPLIMITE HDP-20 d-sub cable plug,15 pin Conn Housing PL 15 POS Crimp ST Cable Mount Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 15PlugWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONNECTOR, D-SUB, MALE Conn;D-Sub;CablePlug;15Pos;STR;HDP-20Series;CrimpSnap;28-24AWG;MetalShell TE Connectivity AMPLIMITE HDP-20系列 15路 直 压接式 D-sub 连接器, 插头 CRIMP SNAP PLUG ASSY,SIZE 2 |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 800 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 标准 | Insert,UL94V-0 | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | ULRecognized,ULListedandCSACertified |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250 V ac | 最小输入电压 | 250VAC |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 深度 | 12.55mm |
| 宽度 | 17.7mm | 高度 | 12.54 mm |
| 长度 | 39.14mm | 重量 | 0.002 |
| 包装方式 | Bulk | 外壳尺寸 | 2 |
| 导线线规 | 28-24 | 端接方式 | Crimp |
| 触点尺寸 | 20 | 触头类型 | Signal |
| 第二连接器 | With | 安装类型 | Straight |
| 外壳镀层 | Zinc | 行程角度 | Straight |
| 连接器类型 | Crimp Snap | 法兰特征 | Housing/Shell (Unthreaded) |
| 外壳涂层 | Zinc | 安装样式 | Wire |
| 排数 | 2 | 壳体镀层 | :Tin |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 插入件材料 | Thermoplastic | 锁定特性 | Mounting Holes |
| 本体材料 | :Steel | 壳体材料 | Steel |
| 总长度 | 39.14 mm | 主要材料 | D-Subminiature |
| 尺寸/外形 | 39.14 x 17.7 x 12.55mm | 接地凹痕 | Without |
| 端接样式 | Crimp | 触点数 | 15 |
| 介电材料 | Polyamide (PA), Nylon, Glass Filled | 位数 | 15 |
| 外壳尺寸-插件 | Full Metal Shell | 外壳镀层厚度 | 200µin (5.08µm) |
| 外壳材料及表面处理 | Steel, Yellow Trivalent Chromium Chromate Zinc Plated | 外壳尺寸，连接器布局 | 2 (DA, A) |
产品信息
| 备注 | Plugs accept size 20 DF pin contacts. | 类型 | Housing |
| 等级 | Standard | 连接器性别 | PL |
| 系列 | HDP-20 | 制造商全称 | HDP-20 |
| 产品子类型 | Connector | 应用细节 | Commercial |
| 适用产品/相关产品 | :HDP-20 Series D Sub Connectors | ||
环境参数
| 工作温度 | +105°C | ||
