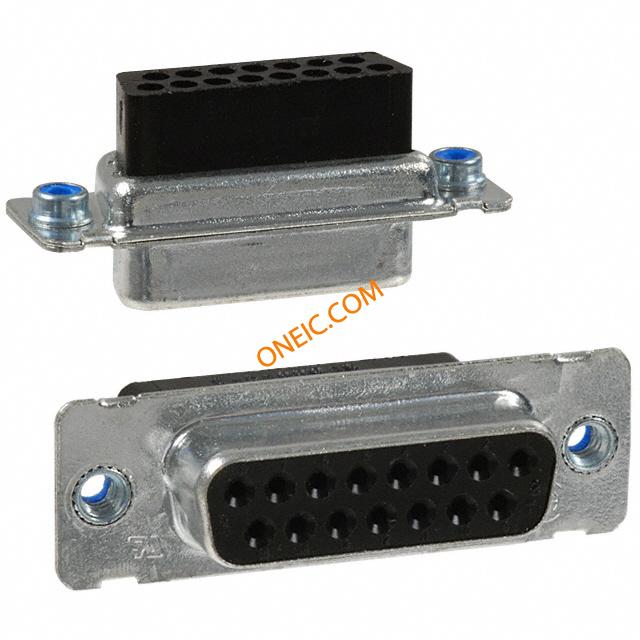

1658644-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 15 POS Crimp ST D-Sub Standard Connectors DSUB A15S CRIMP Standard Cable Connectors CONN D-SUB HOUSING RECEPT 15POS AMPLIMITE HDP-20 Cable Plug 4-40 nut 15P Conn Housing RCP 15 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 15ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB SHELL, RECEPTACLE, 15POS, STEEL Conn;D-Sub;CableSocket;15Pos;STR;HDP-20Series;CrimpSnap;20AWG;MetalShell HDp-20 Series 15 Position Receptacle Crimp Snap Standard Cable Connector TE Connectivity AMPLIMITE HDP-20系列 15路 直 压接式 D-sub 连接器, 插座 HDP-20,RCPT,SIZE 2, 15 POSN,CL |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 800 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | Insert,UL94V-0 |
| 海关税号 | 85366910 | 无铅定义 | Not relevant for lead free process |
| 认证机构 | ULRecognized,ULListedandCSACertified | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 V ac | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 17.9 mm |
| 高度 | 12.54 mm | 重量 | 0.005 |
| 包装方式 | Bulk | 外壳尺寸 | 2 |
| 导线线规 | 20 | 端接方式 | Crimp |
| 触点尺寸 | 20 | 触头类型 | Signal |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Straight | 外壳镀层 | Tin |
| 行程角度 | Straight | 连接器类型 | Crimp Snap |
| 法兰特征 | Board Side (4-40) | 外壳涂层 | Tin |
| 安装样式 | Wire | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 插入件材料 | Thermoplastic | 锁定特性 | Clinch Nut, 4-40 UNC |
| 本体材料 | :Metal | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 39.14 mm |
| 主要材料 | D-Subminiature | 接地凹痕 | Without |
| 端接样式 | Crimp | 触点数 | 15 |
| 介电材料 | Thermoplastic | 位数 | 15 |
| 外壳尺寸-插件 | Full Metal Shell | 外壳镀层厚度 | 200µin (5.08µm) |
| 外壳材料及表面处理 | Steel, Tin Plated | 外壳尺寸，连接器布局 | 2 (DA, A) |
产品信息
| 备注 | Receptacles accept size 20 DF socket contacts. | 类型 | Housing |
| 等级 | Standard | 连接器性别 | RCP |
| 系列 | HDP-20 (Crimp Snap) | 制造商全称 | HDP-20 |
| 产品子类型 | Connector | 应用细节 | Commercial |
| 适用产品/相关产品 | :HDP-20 Series Crimp Snap-In Contacts | ||
环境参数
| 工作温度 | -55C to 105C | ||
