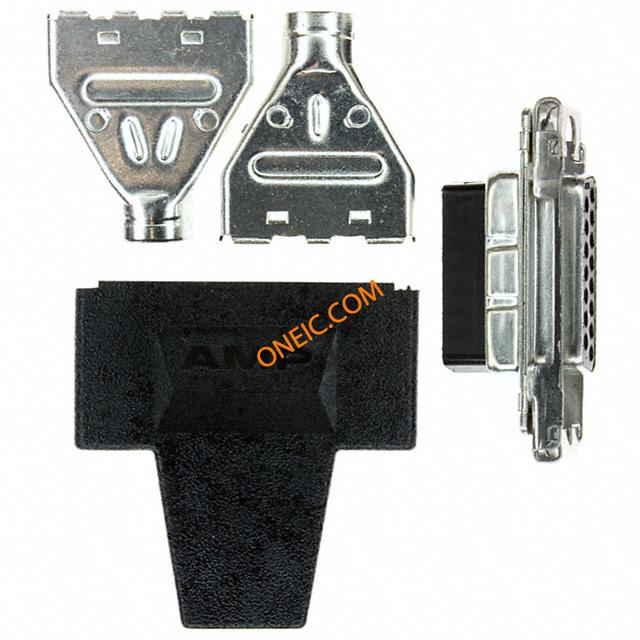

5749246-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 15 POS Crimp ST Cable Mount 15Terminal 1Port D-Sub Standard Connectors KIT RCPT 15P HDP-20 SHLD ENCLS Standard Cable Connectors CONN D-SUB RCPT 15POS W/O CONT Conn Housing RCP 15 POS Crimp ST Bulk Conn Housing RCP 15 POS Crimp ST Bulk Product Highlights:Connector KitProduct Series = HDP-20 (Crimp Snap)Number of Positions = 15ShieldedReceptacleSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub KIT,RCPT,15P,HDP-20,SHLD ENCLSRE |
| 分类 |
商业参数
| 其他名称 | A31539 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 连接器阻抗 | 滑销 | ||
机械参数
| 颜色 | Black | 外形尺寸(长x宽) | 2 |
| 镀层 | Tin over matte Copper | 包装方式 | Bulk |
| 屏蔽 | 是 | 壳体颜色 | 黑色 |
| 外壳尺寸 | 2 | 屏蔽类型 | Yes |
| 端接方式 | Crimp | 触点尺寸 | 20 |
| 触头类型 | Signal | 外壳表面处理 | 铜镀锡 |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Cable Mount | 外壳镀层 | Tin over Copper |
| 端子尺寸 | 20 | 连接器类型 | Receptacle for Female Contacts |
| 法兰特征 | Mating Side | 安装样式 | Wire |
| 排数 | 2 | 外壳材料（壳体） | Carbon Steel |
| 连接器样式 | D-Sub | 插入件材料 | Nylon |
| 锁定特性 | Slide Latches | 屏蔽材料 | Steel |
| 壳体材料 | Nylon | 包装数量 | 1 |
| 接地凹痕 | Without | 端接样式 | Crimp |
| 触点数 | 15 POS | 介电材料 | Polyamide (PA), Nylon, Glass Filled |
| 绝缘直径 | 4.83 â 9.53 [0.190 â 0.375] | 位数 | 15 |
| 外壳尺寸-插件 | Full Metal Shell | 外壳镀层厚度 | 200µin (5.08µm) |
| 外壳材料及表面处理 | Steel, Tin Plated | 接触件表面处理 - 配合 | 哑光 |
| 触点材料 - 柱 | Brass | 夹持材料 - 镀层 | Tin over Copper |
| 外部壳体材料 | PVC, Elastomer, Styrene polyolefin | 触点材料 - 镀层 | 玻璃纤维尼龙 |
| 外壳尺寸，连接器布局 | 2 (DA, A) | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | D-Subminiature |
| 等级 | Standard | 连接器性别 | SKT |
| 系列 | HDP-20 (Crimp Snap) | 产品特性 | Backshell, Latch Lock, Shielded |
| 预装 | Yes | 产品子类型 | Connector Kit |
| 其他规格 | 4.83 – 9.53 mm [ .19 – .375 in ] | ||
