点击放大查看

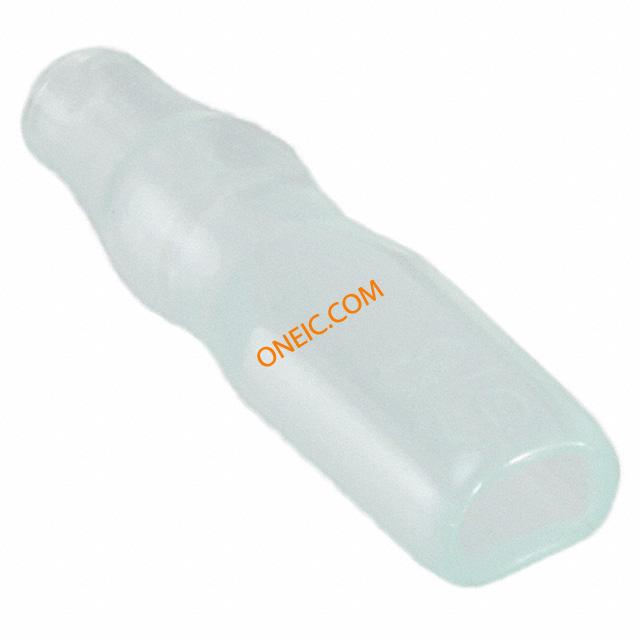

170823-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Insulation Sleeve Soft Vinyl Chloride Clear Loose Piece FASTON Uninsulated Receptacles & Housings CONN INSULATION SLEEVE .110 Faston 110,connector sleeve,natural,21mm Terminals SLEEVE FOR 110 F Connector Accessories Insulation Sleeve Soft Vinyl Chloride Clear Loose Piece Product Highlights:Insulation SleeveInsulation Diameter = 1.80 [.071] mm [in]Soft Vinyl Chloride MaterialHousing Color = NaturalLine = FASTON .110Search Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING Faston110,connectorsleeve,natural,21mm CONNECTORSLEEVE,NATURAL TE Connectivity 21mm 压接端子盖 |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 颜色 | Clear | 长度 | 21.00 [0.827] |
| 材料（通用） | Soft Vinyl Chloride | 包装方式 | Bulk |
| 外壳颜色 | Natural | 安装类型 | Free Hanging (In-Line) |
| 端子尺寸 | 0.110" (2.79mm) | 端子类型 | Quick Connect, Disconnect |
| 总长度 | FASTON .110 | 包装数量 | Loose Piece |
| 绝缘直径 | 1.80 [.071] | 位数 | 1 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Insulation Sleeve |
| 样式 | Sleeve | 连接器性别 | Female, Receptacle |
| 系列 | FASTON | 产品子类型 | Insulation Sleeve |
| 附件类型 | Insulation Sleeve | 射频系列/标准 | 170823 |
| 适用产品/相关产品 | 0.110" (2.79mm) Quick Connects | ||
