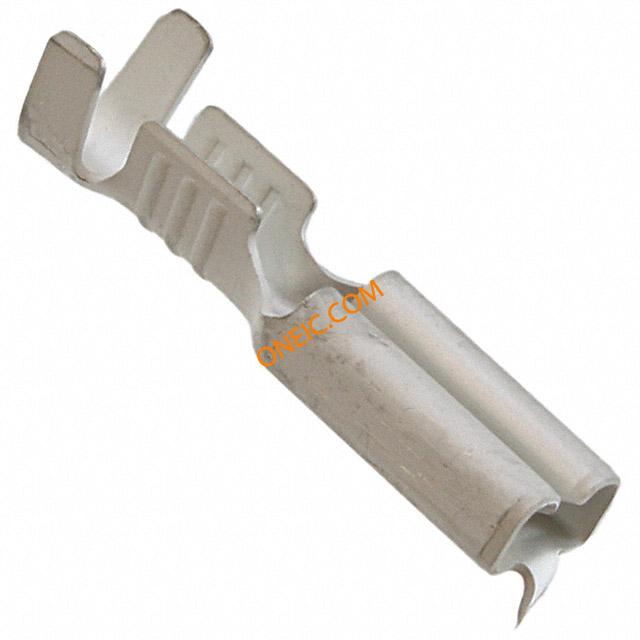

160534-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 17-20AWG RCP 14.5mm 3.8mm Tin Strip Terminals 110 FASTON REC FASTON Uninsulated Receptacles & Housings CONN RCPT FASTON TAB STRGHT Quick Disconnect Terminal 17-20AWG RCP 14.5mm 3.8mm Tin Strip Product Highlights:ReceptacleTab Fit = 2.79 x 0.79 mmBoard Mount = NoReceptacle Style = StraightInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING TE Connectivity FASTON .110 系列 压接插座 , 2.19 x 2.19mm, 镀锡触芯 FASTON 110 REC 0.5-1.0MM2 .009X.450 TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A107163CT |
| 产品类别 | Terminals | 标准包装数量 | 10,000 |
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| UL列名 | Listed | 无铅定义 | Not relevant for lead free process |
| 认可国家 | 是 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | 材料阻燃等级 | UL 94V-2 |
电气参数
| 核心类型 | Open | 最大电压 | 250 |
| 最大频率 | Single | 开关功能 | 快速连接 |
| 连接器类型 - 电压输入 | Without | ||
机械参数
| 表面处理 | Tin | 长度 | 14mm |
| 材料（通用） | Brass | 包装方式 | Reel |
| 插片宽度 | 2.79 x 0.79 [.110 x .031] | 电缆类型 | Regular Wire |
| 绝缘类型 | Not Insulated | 插片长度 | 0.248" (6.30mm) |
| 导线线规 | 20-17 | 端接方式 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 0.11 in x 0.031 in |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 电缆直径 | 1mm² | 电缆材料 | Stranded |
| 连接器类型 | 快速断开终端, 母座 | 接触镀层 | Tin |
| 连接器样式 | Straight | 连接器用途 | Wire & Cable |
| 箔压接区域 | F-Crimp | 插入件材料 | 黄铜 |
| 插入力 | Normal | 触头材料 | Brass |
| 总长度 | Commercial | 包装数量 | Strip |
| 导线端接方式 | No | 绝缘高度 | Insulation Support |
| 端接样式 | 母端 | 适用端子尺寸 | 2 – 3 mm [ .08 – .118 in ] |
| 绝缘直径 | 2.00-3.00 [.079-.118] | 绝缘材料 - 类型 | No |
| 总厚度 | .25 mm [ .01 in ] | 焊盘布局尺寸 | 2.19 x 2.19mm |
| 法兰上方插针尺寸 | 2.8 mm [ .11 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 接触镀层厚度 | 400 | 线规或范围 - AWG | 17AWG |
| 线规或范围 - mm² | 0.50-1.00² [20-17] | 第二连接器安装特性 | No |
| 外径-未扩张 | 3 mm [ .118 in ] | ||
产品信息
| 备注 | Versions according to DIN 46247, Part 1, all other versions have dimples, which | 连接器性别 | Female |
| 系列 | 110 | 制造商全称 | AMP |
| 产品子类型 | Receptacle | ||
环境参数
| 工作温度 | 130 | ||
