点击放大查看

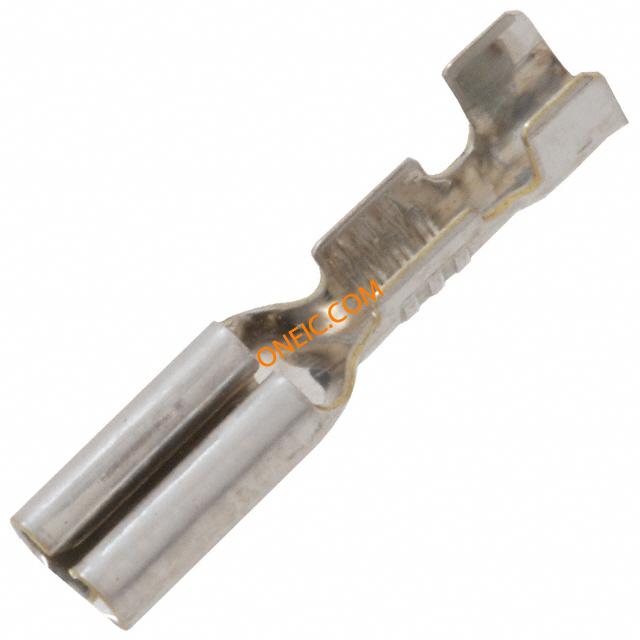

60197-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 18-22AWG RCP 16.12mm 3.81mm Pre-Tin Strip Terminals FASTON TAB FASTON Uninsulated Receptacles & Housings CONN RECEPT FAST 18-22AWG .110 Quick Disconnect Terminal 18-22AWG RCP 16.12mm 3.81mm Pre-Tin Strip Product Highlights:ReceptacleTab Fit = 2.79 x 0.81 mmBoard Mount = NoReceptacle Style = StraightInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING TERMINAL, FEMALE DISCONNECT 0.11IN CRIMP TERMINAL,FASTON,RECEPTACLE,22-18AWG FASTON 110 REC 22-18 AWG PTPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 15,000 | 工厂包装数量 | 15000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| UL列名 | Listed | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | Yes |
电气参数
| 连接器类型 - 电压输入 | Without | ||
机械参数
| 表面处理 | Pre-Tin | 重量 | 0.00001 |
| 材料（通用） | Brass | 包装方式 | Reel |
| 插片宽度 | 2.79 x 0.81 [.110 x .032] | 厚度 | 0.25 [0.010] |
| 电缆类型 | Regular Wire | 绝缘类型 | Not Insulated |
| 插片长度 | 0.250" (6.35mm) | 导线线规 | 22-18 |
| 端接方式 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 0.11 in x 0.032 in | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 连接器类型 | :Female Disconnect |
| 接触镀层 | Tin | 连接器样式 | Straight |
| 箔压接区域 | F-Crimp | 插入力 | Normal |
| 触头材料 | Brass | 绝缘颜色 | :Uninsulated |
| 总长度 | 0.635" (16.13mm) | 包装数量 | Strip |
| 绝缘高度 | Insulation Support | 端接样式 | Crimp |
| 绝缘直径 | 1.52-2.54 [.060-.100] | 线规或范围 - AWG | :22AWG |
| 线规或范围 - mm² | 0.30-0.90² [22-18] | 第二连接器安装特性 | No |
产品信息
| 连接器性别 | Female | 系列 | 110 |
| 制造商全称 | AMP | 产品子类型 | Receptacle |
