| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece Terminals 110 FASTON IS FASTON Uninsulated Receptacles & Housings CONN UNINS RECPT 17-20AWG 0.110 Receptacle terminal,FASTON 110,AWG 20-17 Contact SKT Crimp ST Cable Mount Loose Piece Search Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING Receptacle2.79x0.79FASTON Push-on receptacle, bare 2.8 x 0.8 mm 0.5...1 mm², 160626-1, TE Connectivity TE Connectivity FASTON .110 系列 压接插座 , 2.79 x 0.79mm 110 FASTON IS |
| 分类 |
商业参数
| 产品 | Faston Terminals | 标准包装数量 | Bulk |
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| UL列名 | Listed | 无铅定义 | Not relevant for lead free process |
| 认可国家 | 是 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 核心类型 | Open | 最大频率 | Single |
| 开关功能 | 快速连接 | 连接器类型 - 电压输入 | Without |
机械参数
| 表面处理 | None | 材料（通用） | Brass |
| 包装方式 | Bulk | 插片宽度 | 2.79 x 0.79 [.110 x .031] |
| 电缆类型 | Regular Wire | 绝缘类型 | Non-Insulated |
| 插片长度 | 0.248" (6.30mm) | 导线线规 | 17-20 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 安装类型 | Free Hanging (In-Line) | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 电缆直径 | 1mm² |
| 电缆材料 | Stranded | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | 无镀层 | 连接器样式 | Straight |
| 连接器用途 | Wire & Cable | 箔压接区域 | F-Crimp |
| 插入件材料 | 黄铜 | 插入力 | Normal |
| 触头材料 | Brass | 总长度 | Commercial |
| 包装数量 | Loose Piece | 导线端接方式 | No |
| 绝缘高度 | Insulation Support | 端接样式 | 母端 |
| 适用端子尺寸 | 2 – 3 mm [ .08 – .118 in ] | 横截面形状 | 0.5...1 mm² |
| 绝缘直径 | 2.00-3.00 [.079-.118] | 绝缘材料 - 类型 | No |
| 总厚度 | .25 mm [ .01 in ] | 焊盘布局尺寸 | 2.79 x 0.79mm |
| 法兰上方插针尺寸 | 2.8 mm [ .11 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 线规或范围 - AWG | 17AWG | 线规或范围 - mm² | 0.50-1.00² [20-17] |
| 第二连接器安装特性 | No | 外径-未扩张 | 3 mm [ .118 in ] |
产品信息
| 备注 | Versions according to DIN 46247, Part 1, all other versions have dimples, which | 连接器性别 | SKT |
| 系列 | 110 | 制造商全称 | AMP |
| 产品子类型 | Receptacle | ||
环境参数
| 工作温度 | -55...+125 °C | ||
文档与媒体
相关型号
170823-8
te connectivity / amp
Connector Accessories Insulation Sleeve Soft Vinyl Chloride Natural Loose Piece FASTON Uninsulated Receptacles & Housings CONN INSULATION SLEEVE .110 Terminals SLEEVE FOR 110 F
1-170823-0
te connectivity / amp
Connector Accessories Insulation Sleeve Soft Vinyl Chloride Natural Loose Piece FASTON Uninsulated Receptacles & Housings CONN INSULATION SLEEVE .110 Headers & Wire Housings SLEEVE FOR 110 F
170823-1
te connectivity / amp
Connector Accessories Insulation Sleeve Soft Vinyl Chloride Clear Loose Piece Terminals FASTON 110 SLEEVE FASTON Uninsulated Receptacles & Housings CONN INSULATION SLEEVE .110 FASTON, Insulation sleeve, 2.79mm FASTON Uninsulated Receptacles & Housings Product Highlights:Insulation SleeveInsulation Diameter = 2.50 [.098] Max. mm [in]Soft Vinyl Chloride MaterialHousing Color = NaturalLine = FASTON .110Search Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING FASTON,Insulationsleeve,2.79mm TE Connectivity 压接端子盖
170823-9
te connectivity / amp
Connector Accessories Insulation Sleeve Soft Vinyl Chloride Clear Loose Piece FASTON Uninsulated Receptacles & Housings CONN INSULATION SLEEVE .110 Faston 110,connector sleeve,natural,21mm Terminals SLEEVE FOR 110 F Connector Accessories Insulation Sleeve Soft Vinyl Chloride Clear Loose Piece Product Highlights:Insulation SleeveInsulation Diameter = 1.80 [.071] mm [in]Soft Vinyl Chloride MaterialHousing Color = NaturalLine = FASTON .110Search Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING Faston110,connectorsleeve,natural,21mm CONNECTORSLEEVE,NATURAL TE Connectivity 21mm 压接端子盖
521311-2
te connectivity / amp
3 CIR 110 FAST HSG N NAT 3CIR110FASTHSGNNAT Headers & Wire Housings 3 CIR 110 FAST HSG N NAT
1-170823-1
te connectivity / amp
Connector Accessories Insulation Sleeve Soft Vinyl Chloride Clear Loose Piece FASTON Uninsulated Receptacles & Housings CONN INSULATION SLEEVE .110 Faston 110,connector sleeve,natural,23mm Headers & Wire Housings SLEEVE FOR 110 F Faston110,connectorsleeve,natural,23mm CONNECTORSLEEVE,NATURAL TE Connectivity 23mm 压接端子盖
539743-2
te connectivity / amp

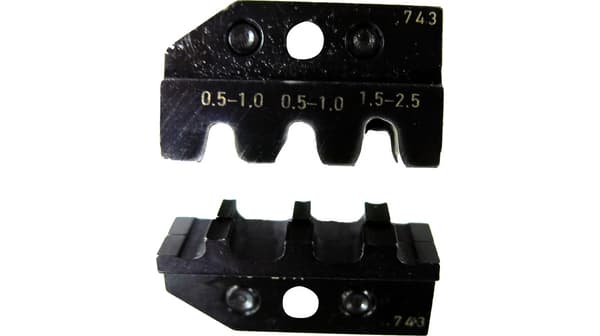

DIE F2.8FF TAB Punches & Dies DIE F2.8FF TAB TOOL DIE SET 2.8MM FF TAB Crimping dies, 539743-2, TE Connectivity TE Connectivity ERGOCRIMP 系列 压接工具模具 , 0.5 → 1 mm²，1.5 mm²，2.5 mm² 线规格
