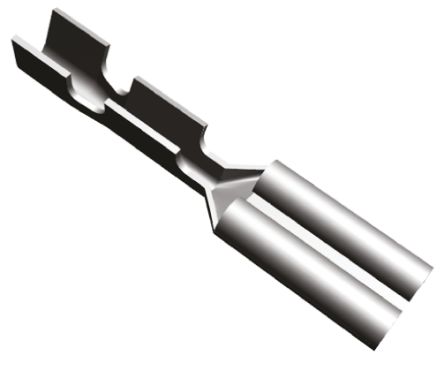

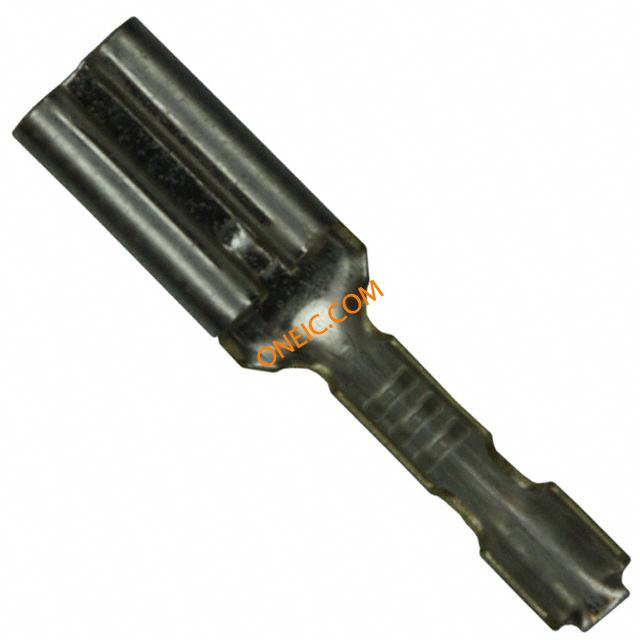

42067-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 22-24AWG RCP 16.12mm 3.81mm Pre-Tin Strip Terminals 24-22 AWG .110 RCPT FASTON Uninsulated Receptacles & Housings CONN RECEPT FAST 22-24AWG .110 Quick Disconnect Terminal 22-24AWG RCP 16.12mm 3.81mm Pre-Tin Strip Product Highlights:ReceptacleTab Fit = 2.79 x 0.51 mmBoard Mount = NoReceptacle Style = StraightInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING TERMINAL, FEMALE DISCONNECT 0.11IN CRIMP TE Connectivity FASTON .110 系列 压接插座 , 2.79 x 0.51mm, 镀锡触芯 FASTON 110 REC 24-22 AWG PTPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 20,000 | 工厂包装数量 | 20000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| UL列名 | Listed | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 连接器类型 - 电压输入 | Without | ||
机械参数
| 颜色 | Not Required | 深度 | 3.81 mm |
| 表面处理 | Pre-Tin | 长度 | 0.71 in |
| 重量 | 0 | 材料（通用） | Brass |
| 包装方式 | Reel | 插片宽度 | 2.79 x 0.51 [.110 x .020] |
| 厚度 | 0.25 [0.010] | 电缆类型 | Regular Wire |
| 绝缘类型 | Not Insulated | 插片长度 | 0.250" (6.35mm) |
| 导线线规 | 24-22 | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Wire |
| 螺柱/焊片尺寸 | 0.11 in x 0.02 in | 插片厚度 | 0.020" (0.51mm) |
| 端子类型 | Standard | 连接器类型 | :Female Disconnect |
| 接触镀层 | Tin | 壳体镀层 | Pre-Tin |
| 连接器样式 | Straight | 箔压接区域 | F-Crimp |
| 插入力 | Normal | 触头材料 | Brass |
| 绝缘颜色 | :Uninsulated | 总长度 | 0.635" (16.13mm) |
| 包装数量 | Strip | 绝缘高度 | Insulation Support |
| 端接样式 | Crimp | 绝缘直径 | 1.02-1.52 [.040-.060] |
| 线规或范围 - AWG | :24AWG | 线规或范围 - mm² | 0.20-0.40² [24-22] |
| 第二连接器安装特性 | No | ||
产品信息
| 备注 | UL listed for 22 AWG wire only. | 类型 | Disconnects |
| 连接器性别 | Female | 系列 | 110 |
| 制造商全称 | AMP | 产品子类型 | Receptacle |
