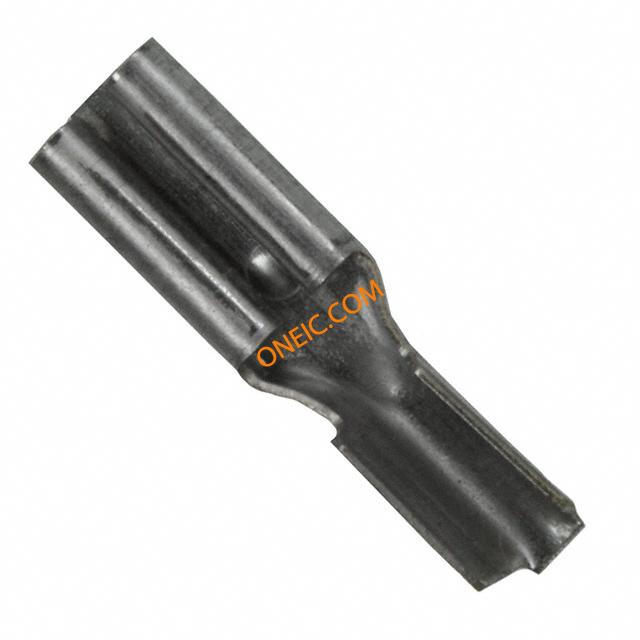

61457-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 16-20AWG RCP 13.63mm 3.75mm Pre-Tin Strip Terminals 20-16 AWG .110 RCPT FASTON Uninsulated Receptacles & Housings CONN RECEPT FAST 16-20AWG .110 Quick Disconnect Terminal 16-20AWG RCP 13.63mm 3.75mm Pre-Tin Strip Product Highlights:Product Classification = Connectors - Terminals and SplicesTerminalTerminal Type = ReceptacleTab Fit = 2.79 x 0.41 mmBoard Mount = NoSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING FASTON 110 RECEPTACLE 20-16 AWG PTPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 60,000 | 工厂包装数量 | 20000 |
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| UL列名 | Listed | 无铅定义 | Not relevant for lead free process |
| 认可国家 | 是 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 核心类型 | Open | 最大频率 | Single |
| 开关功能 | 快速连接 | 连接器类型 - 电压输入 | Without |
机械参数
| 表面处理 | Pre-Tin | 材料（通用） | Brass |
| 包装方式 | Reel | 插片宽度 | 2.79 x 0.41 [.110 x .016] |
| 厚度 | 0.25 [0.010] | 电缆类型 | Regular Wire |
| 绝缘类型 | Non-Insulated | 插片长度 | 0.250" (6.35mm) |
| 导线线规 | 16-20 AWG | 端接方式 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 插片厚度 | 0.016" (0.41mm) |
| 端子类型 | Standard | 电缆材料 | Stranded |
| 连接器类型 | Yes | 接触镀层 | Tin |
| 连接器样式 | Straight | 连接器用途 | Wire & Cable |
| 箔压接区域 | F-Crimp | 插入件材料 | 黄铜 |
| 插入力 | Normal | 触头材料 | Brass |
| 总长度 | 0.537" (13.64mm) | 包装数量 | Strip |
| 导线端接方式 | No | 绝缘高度 | Non-Insulation Support |
| 端接样式 | 母端 | 绝缘材料 - 类型 | No |
| 总厚度 | .25 mm [ .01 in ] | 法兰上方插针尺寸 | 2.8 mm [ .11 in ] |
| 法兰下方引脚尺寸 | .41 mm [ .016 in ] | 线规或范围 - mm² | 0.50-1.40² [20-16] |
| 第二连接器安装特性 | No | ||
产品信息
| 连接器性别 | Female | 系列 | 110 |
| 制造商全称 | AMP | 产品子类型 | Receptacle |
