首页产品分类连接器解决方案D-Sub连接器D-Sub连接器1658609-2
1658609-2

点击放大查看

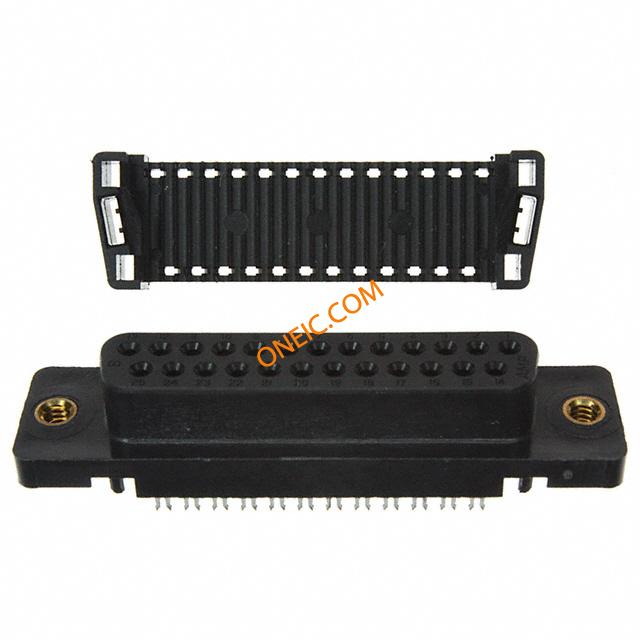

1658609-2

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature SKT 25 POS 2.76mm IDT RA Cable Mount 25 Terminal 1 Port D-Sub Standard Connectors DSUB B25S IDC RIBBON Standard Cable Connectors CONN D-SUB RECEPT 25POS 30 GOLD Conn D-Subminiature SKT 25 POS 2.76mm IDT RA Cable Mount 25 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDF-20 (Ribbon Cable)Number of Positions = 25ReceptacleWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 25POS, RCPT 25 POS HDF RCPT, AP
分类
连接器解决方案D-Sub连接器D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Rail / Tube
工厂包装数量1

合规参数

RoHSRoHS Compliant海关税号85369010
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE CONNECTIVITY - Amplimite HDF-20 Series最大额定电流1.25A

机械参数

颜色Black重量0.0001
包装方式Tube电缆类型Ribbon Cable
外壳尺寸3端接方式IDC, Ribbon Cable
触点尺寸20触头类型Signal
第二连接器With电缆开口747275-2
安装类型Free Hanging (In-Line)外壳镀层Tin
连接器类型Insulation Displacement Crimp (IDC)接触镀层Tin over Nickel
法兰特征Housing/Shell (4-40)安装样式Wire
排数2连接器样式D-Sub
插入件材料Brass锁定特性Threaded Insert, 4-40 UNC
本体材料:Plastic材料表面处理None
外形（宽 x 高）Low触头材料Phosphor Bronze
壳体材料Thermoplastic接地凹痕Without
端接样式Crimp触点数25
接触件端接:IDC / IDT绝缘直径0.81 – 0.97 [0.032 – 0.038]
位数25外壳尺寸-插件All Plastic
螺纹/螺钉/孔尺寸Standard接触镀层厚度30µin (0.76µm)
外部壳体材料Thermoplastic线规或范围 - AWG0.08 - 0.15 [28-26]
外壳尺寸，连接器布局3 (DB, B)

产品信息

备注All plug assemblies are supplied with housing and cover preassembled等级Standard
连接器性别Female系列HDF-20 (Ribbon Cable)
产品特性Feed Through对数747275-2
产品子类型Connector

环境参数

工作温度-55°C ~ 105°C
