点击放大查看

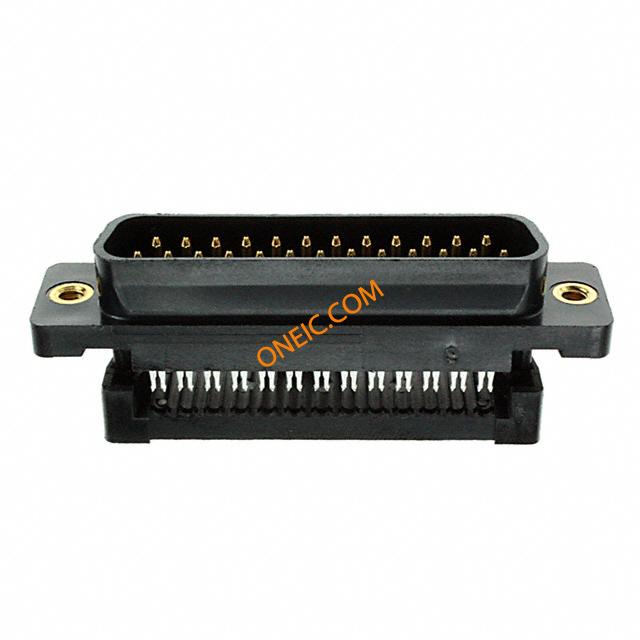

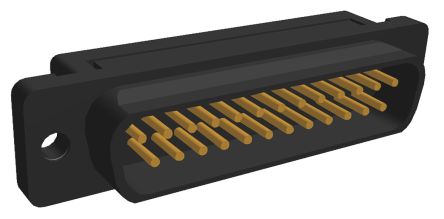

1658611-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature M 25 POS IDT RA Cable Mount 25 Terminal 1 Port D-Sub Standard Connectors DSUB B25P IDC RIBBON Standard Cable Connectors CONN DSUB PLUG 25POS IDC GOLD Conn D-Subminiature M 25 POS IDT RA Cable Mount 25 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDF-20 (Ribbon Cable)25 PositionsWithout EnclosureHousing Gender = PlugSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 25POS, PLUG TE Connectivity AMPLIMITE HDF-20 系列 1.27mm 节距 25 路 IDC D-sub 连接器, 插头, 热塑性外壳 25 POS HDF PLUG, AP, LEAD FREE |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 40 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite HDF-20 Series | 最大额定电流 | 1.25A |
机械参数
| 颜色 | Black | 重量 | 0 |
| 包装方式 | Tube | 电缆类型 | Ribbon Cable |
| 外壳尺寸 | 3 | 端接方式 | IDT |
| 触点尺寸 | 20 | 触头类型 | Signal |
| 第二连接器 | With | 电缆开口 | 747275-2 |
| 安装类型 | Cable Mount | 外壳镀层 | Thermoplastic |
| 连接器类型 | Insulation Displacement Crimp (IDC) | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (4-40) | 安装样式 | Wire |
| 排数 | 2 | 外壳材料（壳体） | Plastic |
| 连接器样式 | D-Sub | 插入件材料 | Brass |
| 锁定特性 | Threaded Insert, 4-40 UNC | 本体材料 | :Plastic |
| 材料表面处理 | None | 外形（宽 x 高） | Low |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 接地凹痕 | With | 端接样式 | IDC |
| 触点数 | 25 | 接触件端接 | :IDC / IDT |
| 绝缘直径 | 0.81 â 0.97 [0.032 â 0.038] | 位数 | 25 |
| 外壳尺寸-插件 | All Plastic | 螺纹/螺钉/孔尺寸 | Standard |
| 接触镀层厚度 | Flash | 外部壳体材料 | Thermoplastic |
| 线规或范围 - AWG | 0.08 - 0.15 [28-26] | 外壳尺寸，连接器布局 | 3 (DB, B) |
产品信息
| 备注 | All plug assemblies are supplied with housing and cover preassembled | 类型 | D-Subminiature |
| 等级 | Standard | 连接器性别 | M |
| 系列 | HDF-20 (Ribbon Cable) | 产品特性 | Feed Through |
| 对数 | 747275-2 | 产品子类型 | Connector |
环境参数
| 工作温度 | -55°C ~ 105°C | ||
