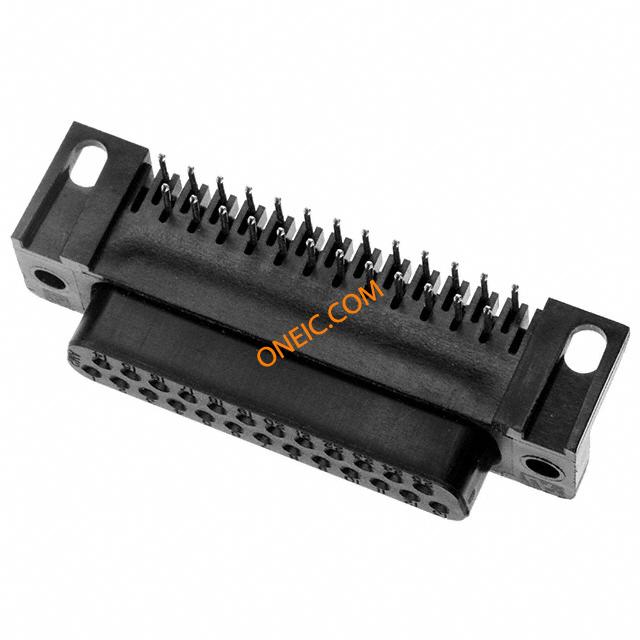

点击放大查看
745132-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 25 POS 2.74mm Solder RA Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors 25P APFL RCPT RA 318 Standard Board Mount Connectors CONN D-SUB RCPT R/A 25POS PCB AU Conn D-Subminiature SKT 25 POS 2.74mm Solder RA Thru-Hole 25 Terminal 1 Port Product Highlights:25 PositionsHousing Gender = ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 25 APFL RCPT RA 318 |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 65 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| 标准编号 | UL E28476 | RoHS/ELV合规状态 | ELV compliant, 5 of 6 Compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 接地方式 | Without | 额定电压 | 125V |
| 连接器阻抗 | 安装孔 | 最大额定电流 | 6A |
机械参数
| 颜色 | Black | 间距 | 2.74 mm |
| 密封型 | No | 外形尺寸(长x宽) | 3 |
| 占位面积 | 8.08 [.318] | 锁定类型 | 带有 |
| 包装方式 | Tray | 壳体颜色 | 黑色 |
| 引脚样式 | 圆形, 圆形 | 外壳尺寸 | 3 |
| 端接方式 | Solder | 触头类型 | Signal |
| 柱间距 | .108 | 第二连接器 | Without |
| 触点形状 | Round | 安装类型 | Through Hole |
| 端子尺寸 | .12 | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (Unthreaded) |
| 接地类型 | Without | 安装样式 | Through Hole |
| 排数 | 2 | 外壳材料（壳体） | 全塑 |
| 电路板厚度 | 0.093 [2.36] | 连接器样式 | D-Sub |
| 插入件材料 | 锌 | 外形（宽 x 高） | Standard |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 安装特性 | 安装孔 | 包装数量 | 130 |
| 面板安装类型 | Without | 尺寸/外形 | 0.66 [.026] |
| 接地凹痕 | Without | 端接样式 | Through Hole |
| 连接器颜色 | None | 外径 | .66 mm [ .026 in ] |
| 触点数 | 25 | 位数 | 25 |
| 外壳尺寸-插件 | All Plastic | 端子柱长度 | 3.18 [0.125] |
| 接触镀层厚度 | 30µin (0.76µm) | 外壳与棱镜材料 | 是 |
| 外壳尺寸，连接器布局 | 3 (DB, B) | ||
产品信息
| 备注 | All receptacles are preloaded with size 20 DF posted socket contacts | 类型 | D-Subminiature |
| 连接器性别 | SKT | 系列 | HD-20 |
| 料盒尺寸 | 8.08 mm [ .318 in ] | 可密封 | 否 |
| 制造商全称 | AMP | 预装 | 是 |
| 产品子类型 | 连接器 | ||
环境参数
| 工作温度 | -55°C ~ 105°C | 封装热阻 | 2.36 mm [ .093 in ] |
