点击放大查看

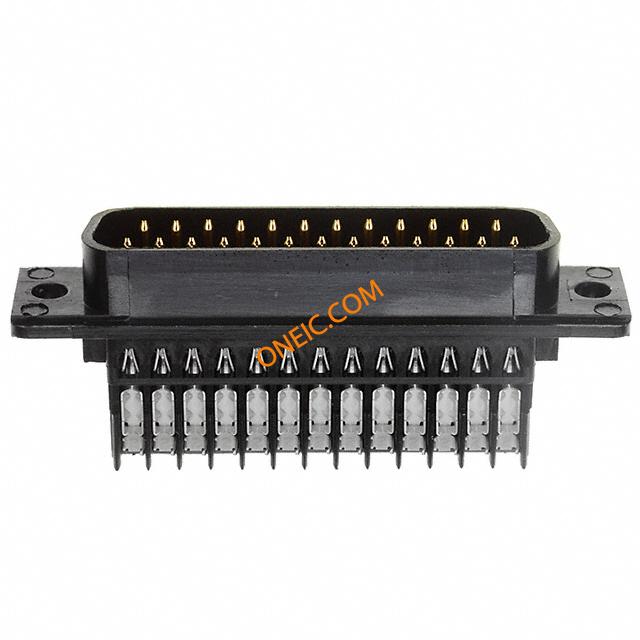

745211-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PL 25 POS 2.76mm IDT ST Cable Mount 25 Terminal 1 Port D-Sub Standard Connectors DSUB B25P IDC 26-22 AWG Standard Cable Connectors CONN D-SUB PLUG 25P 22-26AWG AU Conn D-Subminiature PL 25 POS 2.76mm IDT ST Cable Mount 25 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDE-20 (IDC)Number of Positions = 25PlugWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 25POS, PLUG Conn;D-Sub;CablePlug;25Pos;STR;HDE-20Series;IDC;26-22AWG;AllPlasticShell 25 HDE AP PLUG, LEAD FREE |
| 分类 |
商业参数
| 其他名称 | A31941 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Trays | 工厂包装数量 | 84 |
合规参数
| RoHS | RoHS Compliant | 标准 | UL94V-0 |
| 海关税号 | 85366910 | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | 认证机构 | ULRecognized,ULListedandCSACertified |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite HDE-20 Series | 额定电压 | 250V |
| 最大额定电流 | Varies by Wire Gauge | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 21.84 mm |
| 间距 | 2.76 mm | 高度 | 12.92 mm |
| 重量 | 0 | 包装方式 | Tray |
| 电缆类型 | Discrete Wire, Round Jacketed Cable | 绝缘类型 | Insulated |
| 外壳尺寸 | 3 | 导线线规 | 26-22 |
| 端接方式 | IDT | 触点尺寸 | 20 |
| 触头类型 | Signal | 第二连接器 | With |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Insulation Displacement Crimp (IDC) | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Through Hole |
| 排数 | 2 | 外壳材料（壳体） | Plastic |
| 连接器样式 | D-Sub | 锁定特性 | Mounting Holes |
| 本体材料 | :Plastic | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 53.08 mm |
| 主要材料 | D-Subminiature | 接地凹痕 | Without |
| 端接样式 | IDC | 触点数 | 25 |
| 接触件端接 | :IDC / IDT | 绝缘直径 | 1.52 [0.060] |
| 位数 | 25 | 外壳尺寸-插件 | All Plastic |
| 接触镀层厚度 | Flash | 线规或范围 - mm² | 0.15 - 0.40 [26-22] |
| 外壳尺寸，连接器布局 | 3 (DB, B) | ||
产品信息
| 备注 | All connectors are preloaded. Individual conductor strands should be larger tha | 类型 | D-Subminiature |
| 等级 | Standard | 连接器性别 | PL |
| 系列 | HDE-20 | 制造商全称 | HDE-20 |
| 产品子类型 | Connector | 端口数 | 1 Port |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
