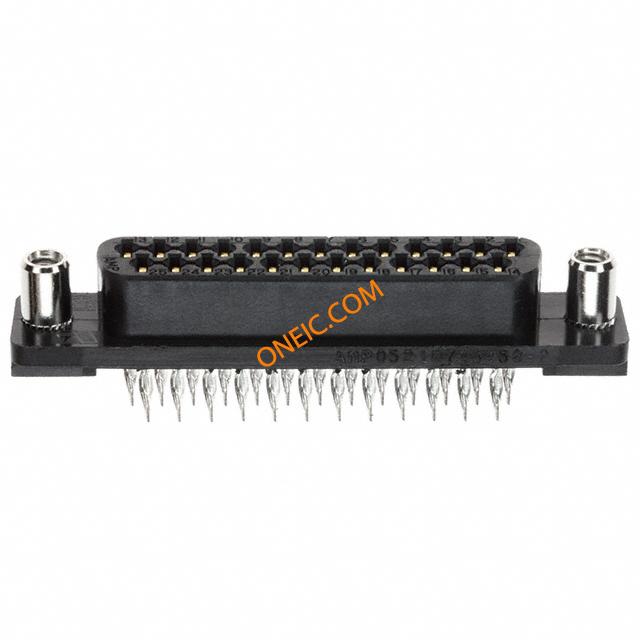

点击放大查看
745458-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 25 POS 2.76mm Press Fit ST Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors HD-20 25P SOCKET Standard Board Mount Connectors CONN D-SUB RCPT STR 25POS PCB AU Standard Board Mount Connectors Product Highlights:25 PositionsConnector Style = ReceptaclePCB Mount Angle = VerticalProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 25 RCPT ACT PIN/AP LOW SCRLK |
| 分类 |
商业参数
| 其他名称 | A23137 | 标准包装规格 | 78 |
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 78 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | 无铅定义 | Not suitable for lead free processing |
| 标准编号 | UL E81956 | RoHS/ELV合规状态 | RoHS/Not ELV Compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 接地方式 | Without | 连接器阻抗 | 母端螺钉锁，固定 |
机械参数
| 颜色 | Black | 间距 | 2.76 mm |
| 密封型 | No | 外形尺寸(长x宽) | 3 |
| 锁定类型 | 带有 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 外壳尺寸 | 3 |
| 端接方式 | Press Fit | 触头类型 | Signal |
| 柱间距 | .109 | 第二连接器 | With |
| 安装类型 | Through Hole | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 法兰特征 | Mating Side; Female Screwlock (4-40) |
| 接地类型 | Without | 安装样式 | Through Hole |
| 排数 | 2 | 外壳材料（壳体） | 全塑 |
| 电路板厚度 | 0.093 [2.36] | 连接器样式 | D-Sub |
| 插入件材料 | 铜合金 | 锁定特性 | Female Screwlocks, Fixed |
| 外形（宽 x 高） | Low | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 安装特性 | 作用/符合标准的尾, 安装孔 |
| 包装数量 | 78 | 面板安装类型 | Without |
| 接地凹痕 | Without | 端接样式 | Through Hole |
| 连接器颜色 | None | 触点数 | 25 |
| 位数 | 25 | 外壳尺寸-插件 | All Plastic |
| 端子螺钉表面处理 | 镍 | 安装孔直径 | 3.05 [.120] |
| 端子柱长度 | 5.80 [0.228] | 接触镀层厚度 | 30µin (0.76µm) |
| 螺钉材料 - 镀层 | Brass | 外壳与棱镜材料 | 是 |
| 外壳尺寸，连接器布局 | 3 (DB, B) | ||
产品信息
| 类型 | D-Subminiature | 连接器性别 | SKT |
| 系列 | HD-20 | 可密封 | 否 |
| 制造商全称 | AMP | 预装 | 是 |
| 产品子类型 | 连接器 | ||
环境参数
| 工作温度 | -55°C ~ 105°C | 封装热阻 | 2.36 mm [ .093 in ] |
