点击放大查看

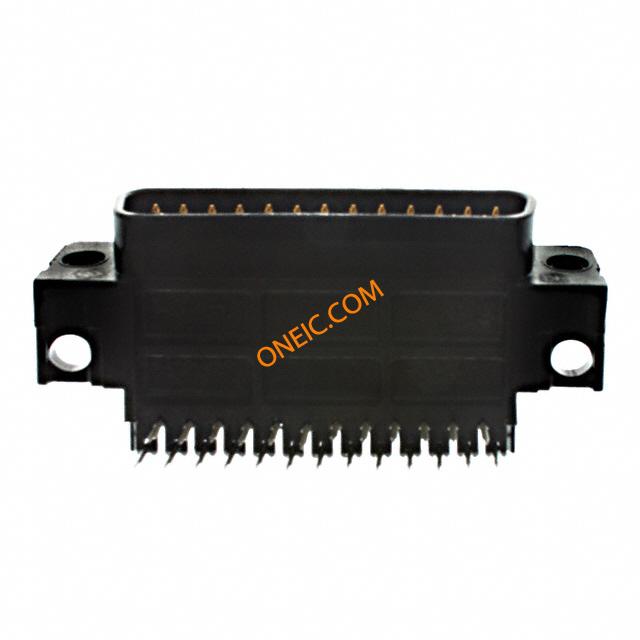

5748873-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors DSUB B25P RA590 Standard Board Mount Connectors CONN D-SUB PLUG R/A 25POS PCB AU Conn D-Subminiature PIN 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port Product Highlights:Number of Positions = 25PlugPCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub Conn;D-Sub;PCBPlug;25Pos;RTAng;HD-20Series;20AWG;AllPlasticShell TE Connectivity Amplimite HD-20 系列 25 路 直角 通孔安装 PCB D-sub 连接器 插头 AMP III PLUG 25P RA 590 THD IN |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 70 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接地方式 | Without | 额定电压 | 125V |
| 连接器阻抗 | 螺纹插针 | 最大额定电流 | 6A |
机械参数
| 颜色 | Black | 深度 | 24.91 mm |
| 间距 | 2.76 mm | 宽度 | 24.91mm |
| 高度 | 11.48 mm | 长度 | 53.09mm |
| 密封型 | No | 外形尺寸(长x宽) | 3 |
| 包装方式 | Tray | 壳体颜色 | 黑色 |
| 引脚样式 | Round | 外壳尺寸 | 3 |
| 方向 | 直角 | 端接方式 | Solder |
| 触头类型 | Signal | 第二连接器 | With |
| 触点形状 | Round | 安装类型 | Through Hole |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (4-40) | 接地类型 | Without |
| 安装样式 | Through Hole | 排数 | 2 |
| 电路板厚度 | 0.093 [2.36] | 连接器样式 | D-Sub |
| 插入件材料 | Zinc | 锁定特性 | Threaded Inserts |
| 材料表面处理 | Clear Chromate | 外形（宽 x 高） | Standard |
| 触头材料 | Brass | 壳体材料 | Nylon|Polyester |
| 总长度 | 53.09 mm | 安装特性 | 安装孔 |
| 包装数量 | 70 | 面板安装类型 | Without |
| 尺寸/外形 | 0.66 [.026] | 接地凹痕 | Without |
| 外形尺寸 长x宽x高 | 14.99 [.590] | 端接样式 | Through Hole |
| 第一触头极性 | PIN | 连接器颜色 | None |
| 外径 | .66 mm [ .026 in ] | 触点数 | 25 |
| 位数 | 25 | 外壳尺寸-插件 | All Plastic |
| 安装孔直径 | 3.18 [.125] | 端子柱长度 | 3.18 [0.125] |
| 接触镀层厚度 | 30µin (0.76µm) | 外壳与棱镜材料 | 是 |
| 外壳尺寸，连接器布局 | 3 (DB, B) | ||
产品信息
| 备注 | Plugs are preloaded with size 20 DF posted pin contacts | 类型 | D-Subminiature |
| 连接器性别 | PIN | 系列 | HD-20 |
| 可密封 | 否 | 制造商全称 | AMP |
| 预装 | 是 | 产品子类型 | 连接器 |
| 端口数 | 1 | 基础产品编号 | 5748873 |
| 其他规格 | 4-40 UNC，螺纹插件 | ||
环境参数
| 工作温度 | -55°C ~ 105°C | 封装热阻 | 2.36 mm [ .093 in ] |
