39-01-2100
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 10 POS 4.2mm Crimp ST Bag 10 way receptacle,Mini-Fit Jr Headers & Wire Housings 10 CKT RCPT HOUSING RECEPTACLE, MINI-FIT, 10WAY PLUG & SOCKET HOUSING, RECEPTACLE, NYLON RECEPTACLE HOUSING; 94V-2; 10 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 10 路 直 母 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Mini-Fit Jr. | 零件号别名 | 0039012100 5557-10R |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 2500 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL | 材料阻燃等级 | :UL94V-2 |
电气参数
| 额定电压 | 600 V | 工作电压 | :250V |
| 接触电阻 | :10mohm | 介电强度 | :1500V/m |
| 最大额定电流 | 13 A | ||
机械参数
| 颜色 | :Natural | 深度 | 19.6mm |
| 间距 | 4.2 mm | 宽度 | 15.1mm |
| 长度 | 22.2mm | 重量 | 0.002 |
| 材料（通用） | :Clear nylon | 基体材料 | :PA Polyamide (Nylon) |
| 安装类型 | Straight | 安装样式 | Free Hanging |
| 排数 | 2 | 壳体材料 | Nylon |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 10 | 位数 | :10 |
产品信息
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | 5557 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacles / Sockets - Housings | 适用产品/相关产品 | Mini-Fit Jr. Receptacle |
文档与媒体
相关型号
46018-1541
Molex
Headers & Wire Housings MF PLUS HMC CRIMP Contact SKT Crimp ST Cable Mount Reel CONTACT, SOCKET, 20-18 AWG, CRIMP Mini-Fit® High Cycle female Crimp terminal, 18-20 AWG Reeled
39-00-0079
molex
Contact SKT Crimp ST Cable Mount Reel Crimp term,4.2mm,female,16 AWG,reel Headers & Wire Housings SOCKET 16 AWG REEL TERMINAL, 16AWG, MINI-FIT CONTACT, CRIMP, SOCKET, 16AWG, MI CONTACT, CRIMP, RECEPTACLE, 16AWG, REEL Molex MINI-FIT 系列 母 压接接线端子, 压接, 镀锡触点
46018-2541
Molex
Headers & Wire Housings MF PLUS HMC CRIMP Contact SKT Crimp ST Cable Mount Reel CRIMP SKT, MF PLUS HMC, 22-24 AWG Mini-Fit® High Cycle female Crimp terminal, 22-24 AWG Reeled
76650-0163
molex

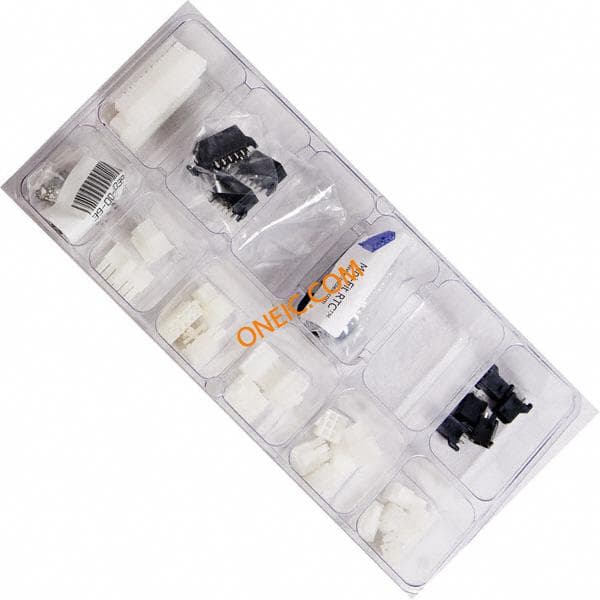

COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,12,24,4,6,8POS 8-12A THROUGH HOLE MOUNTING RECEPTACLE, VERTICAL HEADER 4.2MM PITCH 600V 24-18 WIRE SIZE KIT CONN MINI-FIT RTC I/O Connectors MINI-FIT RTC KIT COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,12,24,4,6,8POS 8-12A THROUGH HOLE MOUNTING RECEPTACLE, VERTICAL HEADER 4.2MM PITCH ... Kit Description:Vertical Header and ReceptacleKit Category:Wire to BoardSolution:PowerPackaging:Clamshell: 12.75" by 6"Num. Pieces:134 MINI-FIT RTC PWR CONNECTOR KIT VERT HEADER & RECEPT
76650-0015
molex

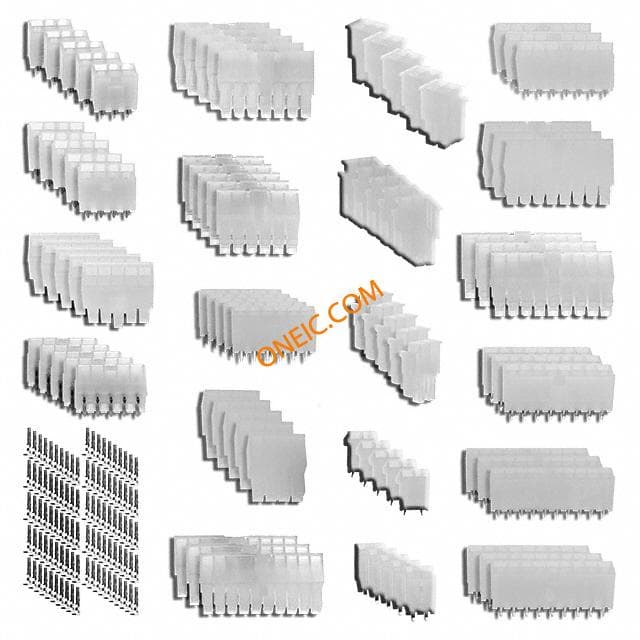

COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,12,14,16,18,2,20,3,4,6,8POS 3-9A FREE-HANGING, THROUGH HOLE MOUNTING RECEPTACLE, VERTICAL HEADER 4.2MM PITCH 600V 24-18 WIRE SIZE KIT CONN MINI-FIT JR 4.20MM Board to Board & Mezzanine Connectors MINIFIT JR KIT WTB COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,12,14,16,18,2,20,3,4,6,8POS 3-9A FREE-HANGING, THROUGH HOLE MOUNTING RECEPTACLE, VERTICAL HEADER 4.2MM ... Kit Description:Vertical Header and ReceptacleKit Category:Wire to BoardSolution:PowerPackaging:Clamshell: 12.75" by 6"Num. Pieces:182 MINI-FIT JR. PWR CONNECTOR KIT VERT HEADER & RECEPT
39-01-2100
molex
Conn Housing RCP 10 POS 4.2mm Crimp ST Bag 10 way receptacle,Mini-Fit Jr Headers & Wire Housings 10 CKT RCPT HOUSING RECEPTACLE, MINI-FIT, 10WAY PLUG & SOCKET HOUSING, RECEPTACLE, NYLON RECEPTACLE HOUSING; 94V-2; 10 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 10 路 直 母 压接连接器外壳
1-794954-0
te connectivity / amp
Conn Housing RCP 10 POS 4.2mm Crimp ST VAL-U-LOK Series Connector System CONN RECEPT 10POS FREE HANGING 10 way receptacle 4.20mm Val-u-Lok Pin & Socket Connectors RECEPTACLE HSG 10P Conn Housing RCP 10 POS 4.2mm Crimp ST Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP RECEPTACLE HOUSING, 94V-2, 10WAY Connector;Nylon;Natural;SoftShell;FreeHanging;AMPBrand/PESeries Female crimp housing Pitch4.2 mm Poles 2 x 5 VAL-U-LOK, 1-794954-0, TE Connectivity TE Connectivity VAL-U-LOK 系列 2 行 4.2mm 节距 10 路 直 母 压接连接器外壳 10P RCPT VAL-U-LOK V2
76650-0013
molex

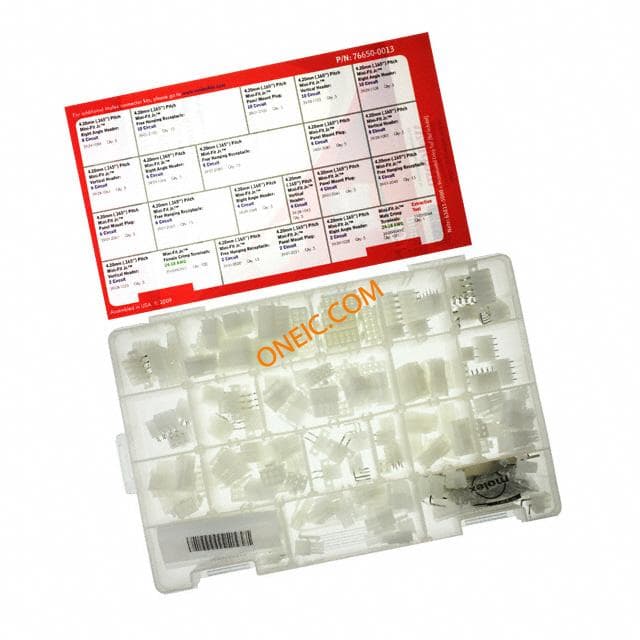

COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,2,4,6,8POS 3-9A PANEL MOUNT, THROUGH HOLE MOUNTING PLUGS,RECEPTACLE,RIGHT ANGLE HEADER, VERTICAL HEADER 4.2MM PITCH 600V 24-18 WIRE SIZE KIT CONN MINI-FIT JR 4.20MM Board to Board & Mezzanine Connectors MINIFIT JR DELUX KIT COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,2,4,6,8POS 3-9A PANEL MOUNT, THROUGH HOLE MOUNTING PLUGS,RECEPTACLE,RIGHT ANGLE HEADER, ... Kit Description:Vertical and Right Angle Header Plug and ReceptacleKit Category:Wire to Wire and Wire to BoardSolution:PowerPackaging:Tackle Box: 11" by 7.25"Num. Pieces:351 MINI-FIT JR. DELUXE PWR CONNECTOR KIT VERT & RT ANGLE HEADER PLUG & RECEPT
1-1586041-0
te connectivity / amp

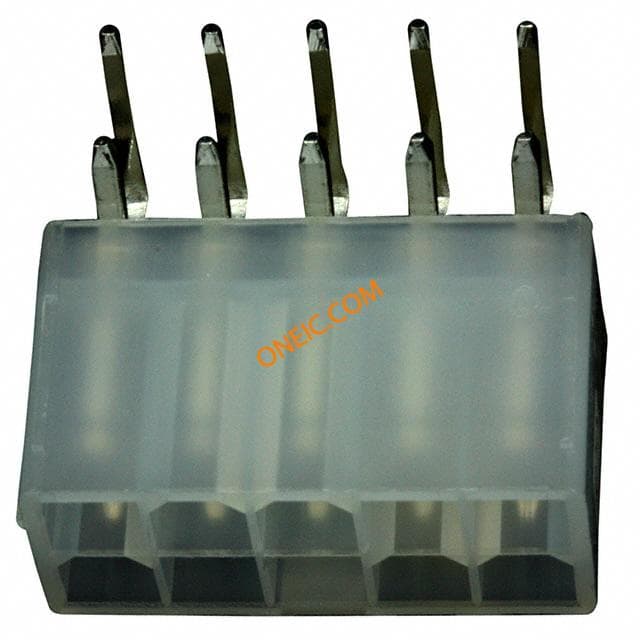

Conn Wire to Board HDR 10 POS 4.2mm Solder RA Thru-Hole VAL-U-LOK Series Connector System CONN HEADER 10POS R/A W/O PEGS Pin & Socket Connectors RA HDR W/O PEGS 10P Conn Power HDR 10 POS 4.2mm Solder RA Thru-Hole 10 Terminal 1 Port Conn Power HDR 10 POS 4.2mm Solder RA Thru-Hole 10 Terminal 1 Port Product Highlights:Pin HeaderNumber of Circuits = 10UL 94V-2Number of Rows = DualRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER,RIGHTANGLE,VAL-U-LOK,10POS,DUALROW,UL94V-2,W/OPEGS Male connector 90° Pitch4.2 mm Poles 2 x 5 VAL-U-LOK, 1-1586041-0, TE Connectivity 10P VAL-U-LOK R/A HDR V2
15-06-0105
Molex Connector Corporation
CONN PLUG 10POS W/PANEL MNT EARS Headers & Wire Housings PLUG DUAL ROW 10POS w/panel mount ears Conn Housing PL 10 POS 4.2mm Crimp ST Bag PLUG & SOCKET CONN, PLUG, 10POS, 4.2MM MINIFIT BMI PLUG PANMNT V-2
39-01-2106
Molex Connector Corporation
CONN PLUG 10POS PANEL MOUNT 4.20mm,housing,MiniFit,plug,DR,10w Headers & Wire Housings 10 CKT PLUG HOUSING 39-01-2106 4.20mm Pitch Mini-Fit Jr.™ Plug Housing, Dual Row, with and without Panel Mount Ears, UL 94V-0, Panel Mount, 10 Circuits PLUG, MINI-FIT, DUAL ROW, PNL MT, 10WAY .165 mini fit jr, dual row 10 circuits Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 10 路 直 公 压接连接器外壳
39-30-0100
Molex Connector Corporation
CONN HEADER 10POS 4.2MM R/A TIN Molex 5569 Series 4.2mm Pitch 10 Way 2 Row Right Angle PCB Header, Solder Termination, 7A Headers & Wire Housings 10 CKT R/A HEADER Conn Power HDR 10 POS 4.2mm Solder RA Thru-Hole 10 Terminal 1 Port Bag HEADER, RIGHT ANGLE, DUAL ROW, 10 WAY Molex MINI-FIT JR. 系列 4.2mm节距 10路 (2排) 直角 PCB 针座, 焊接端接, 7A , 通孔
39-29-1108
Molex Connector Corporation
CONN HEADER 10POS 4.2MM R/A TIN Molex 5569 Series 4.2mm Pitch 10 Way 2 Row Right Angle PCB Header, Solder Termination, 7A Headers & Wire Housings 10 CKT R/A HEADER Conn Power HDR 10 POS 4.2mm Solder RA Thru-Hole 10 Terminal 1 Port Bag HEADER, RIGHT ANGLE, MINI-FIT, 10WAY Nylon Header; 600 V; 10; 2; 0.165 in.; 1500 VAC; 7 A; 10 milliohms (Min.) Molex MINI-FIT JR. 系列 4.2mm节距 10路 (2排) 直角 PCB 针座, 焊接端接, 7A , 通孔
46015-1003
Molex

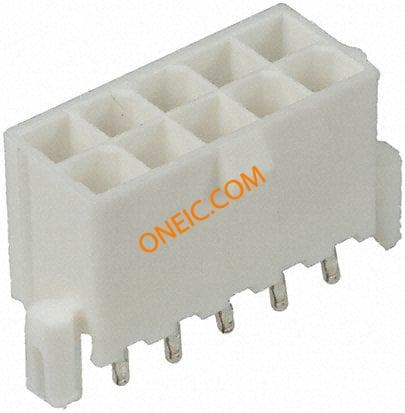

Molex 46015 Series 4.2mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 12A Headers & Wire Housings MF+ HCS VERT HDR DR 10CKT V-0 PEG TIN Male header Pitch4.2 mm Poles 2 x 5 Mini-Fit® Plus HCS, 46015-1003, Molex Molex Mini-Fit Plus 系列 4.2mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 12A , 通孔
39-28-1103
Molex
Molex 5566 Series 4.2mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings 10 CKT VERT HEADER Conn Power HDR 10 POS 4.2mm Solder ST Thru-Hole 10 Terminal 1 Port Bag HEADER, VERTICAL, DUAL ROW, 10WAY, NYLON VERTICAL HEADER ASSEMBLIES-TIN PLATD; 94V-2; 10 CIRCUITS Molex MINI-FIT JR. 系列 4.2mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 7A , 通孔
39-00-0207
Molex
Crimp term,female,tin,18-24AWG,reel Headers & Wire Housings MN-FT TERM 18-24G F Reel of 4000 Contact SKT Crimp ST Cable Mount Reel Molex MINI-FIT 系列 母 压接接线端子, 压接, 镀锡镀镍触点
46015-1002
Molex

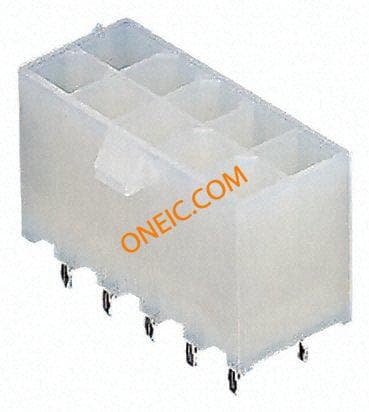

Molex 46015 Series 4.2mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 12A Headers & Wire Housings MF+ HCS VERT HDR DR 10CKT V-0 TIN Molex Mini-Fit Plus 系列 4.2mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 12A , 通孔
