点击放大查看

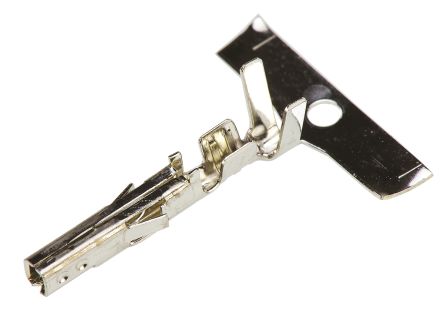

39-00-0207
| 制造商 | Molex, LLC |
| 描述 | Crimp term,female,tin,18-24AWG,reel Headers & Wire Housings MN-FT TERM 18-24G F Reel of 4000 Contact SKT Crimp ST Cable Mount Reel Molex MINI-FIT 系列 母 压接接线端子, 压接, 镀锡镀镍触点 |
| 分类 |
商业参数
| 商标名 | Mini-Fit Jr. | 零件号别名 | 0039000207 5556-SP |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 4000 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 600 V | 接触电阻 | 10mΩ |
机械参数
| 包装方式 | Reel | 导线线规 | 24-18 |
| 端接方式 | Crimp | 连接器类型 | 母座 |
| 接触镀层 | Tin over Nickel | 触头材料 | Brass |
| 端接排数 | 压接 | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 线规或范围 - AWG | 18AWG |
产品信息
| 连接器性别 | Female | 系列 | 5556 |
| 产品子类型 | Contacts | 基础产品编号 | 5556 |
环境参数
| 工作温度 | 105°C | ||
文档与媒体
相关型号
63819-0900
molex
Connector Accessories Hand Crimp Tool Crimpers MOLEX CRIMP TOOL Hand Tool MiniFit 5556/58 16-28 AWG Hand Crimp Tool For Mini-Fit Jr. Male and Female Crimp Terminals, 16-24 AWG CRIMP TOOL, MINI FIT, 16-24AWG CRIMP TOOL; 24-18awg Crimping pliers, 63819-0900, Molex Molex HANDTOOL 系列 接端 压接工具 , 适用于24 → 16 AWG 线规格

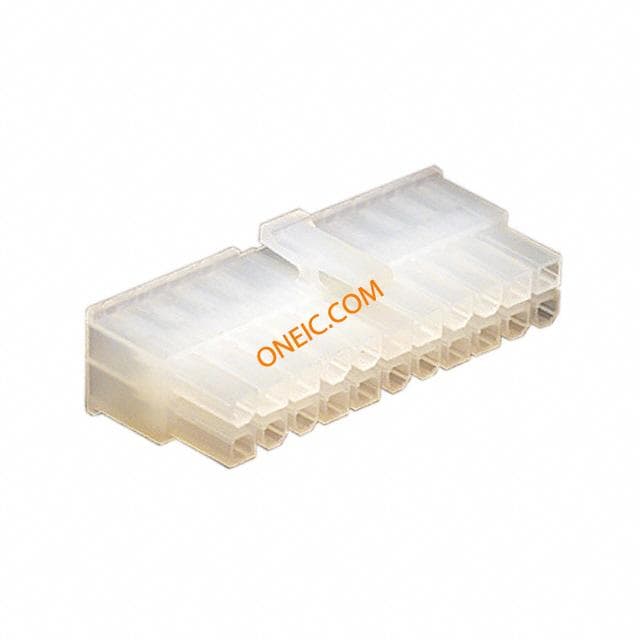

39-01-2225
