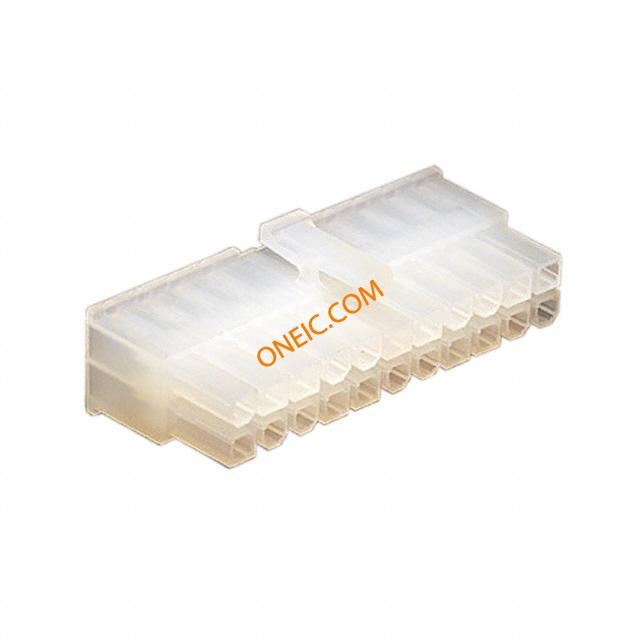

39-01-2225
| 制造商 | Molex, LLC |
| 描述 | Conn Housing F 22 POS 4.2mm Crimp ST Cable Mount Bag CONN RECEPT 22POS DUAL Housing 4.20mm Dual row receptacle22w Headers & Wire Housings 22 CKT RCPT HOUSING PLUG & SOCKET HOUSING, RECEPTACLE, NYLON Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 22 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Mini-Fit Jr. | 零件号别名 | 0039012225 5557-22R-210 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 2000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 13 A |
机械参数
| 颜色 | Natural | 深度 | 19.6mm |
| 间距 | 0.165" (4.20mm) | 宽度 | 15.1mm |
| 长度 | 47.4mm | 重量 | 0.002 |
| 包装方式 | Bulk | 排间距 | 0.165" (4.20mm) |
| 触头类型 | Female Socket | 基体材料 | :Nylon 6/6 |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 紧固类型 | Latch Lock | 安装样式 | Free Hanging |
| 排数 | 2 | 壳体材料 | Nylon |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 22 | 接触件端接 | Crimp |
| 位数 | 22 | 第一连接器安装类型 | :Cable |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | 5557 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacles / Sockets - Housings | 适用产品/相关产品 | Mini-Fit Jr. Receptacle |
