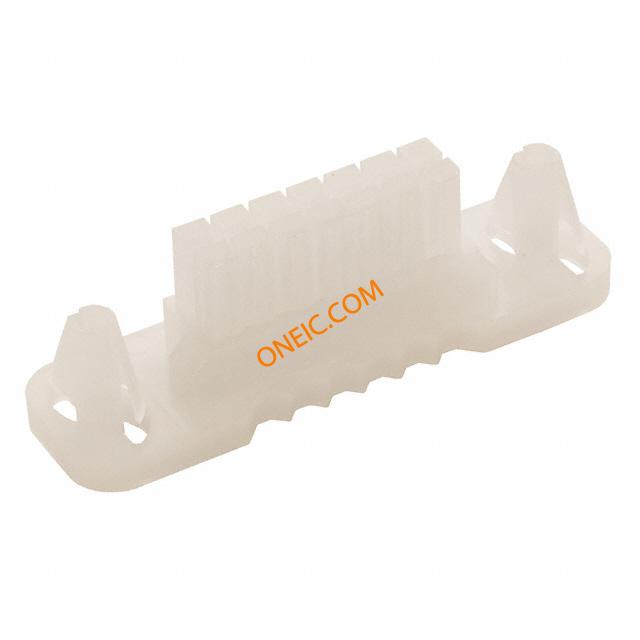

15-06-0140
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPT 14POS W/PANEL MOUNT 14w D/R BMI receptacle housing Headers & Wire Housings RECPT DUAL ROW 14POS w/panel mount ears Conn Housing RCP 14 POS 4.2mm Crimp ST Bag HOUSING, 4.20MM, 14WAY MINIFIT JR BMI PMRCPT 14 pos with panelmount ears MINIFITJRBMIPMRCPT14poswithpanelmountears Molex MINI-FIT BMI 系列 2 行 4.2mm 节距 14 路 直 母 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Mini-Fit BMI | 零件号别名 | 0015060140 42474-1411 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 800 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85366990 | ||
电气参数
| 输出数量 | 14 | 最大额定电流 | 11 A, 6 A |
机械参数
| 颜色 | Natural | 深度 | 19.6mm |
| 间距 | 0.165" (4.20mm) | 宽度 | 17.3mm |
| 长度 | 61.2mm | 重量 | 0.054 |
| 包装方式 | Bulk | 排间距 | 0.165" (4.20mm) |
| 触头类型 | Female Socket | 安装类型 | Panel Mount |
| 行程角度 | Straight | 连接器类型 | Receptacle |
| 安装样式 | Wire | 排数 | 2 |
| 壳体材料 | Nylon | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 14 |
| 接触件端接 | Crimp | 位数 | 14 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Receptacle Panel Mount |
| 连接器性别 | Female | 系列 | 42474 |
| CAD图纸 | 3D CAD Model | 制造商全称 | Mini-Fit BMI |
| 产品子类型 | Receptacles / Sockets - Housings | 电路数 | 14 |
| 适用产品/相关产品 | Mini-Fit BMI Receptacle | ||
