点击放大查看

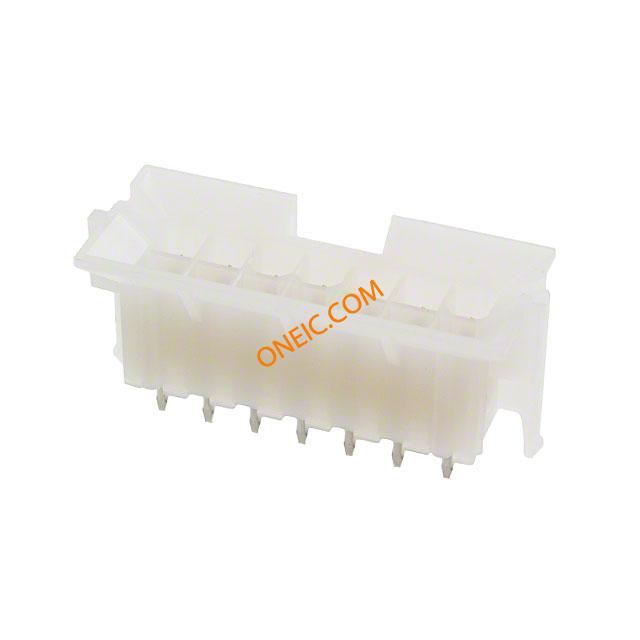

0460111401
| 制造商 | Molex, LLC |
| 描述 | CONN VERT BMI HDR ASY GOLD HCS |
商业参数
| 标准包装数量 | 320 | ||
机械参数
| 颜色 | Natural | 间距 | 0.165" (4.20mm) |
| 包装方式 | Tray | 排间距 | 0.165" (4.20mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 紧固类型 | Locking Ramp |
| 排数 | 2 | 位数 | 14 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 产品特性 | Board Lock | 加载位置数 | All |
