点击放大查看
0039012140
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 14 POS 4.2mm Crimp ST Bag CONN RECEPT 14POS DUAL CONNECTOR HOUSING, RECEPTACLE, 14POS, 2ROW, 4.2MM |
| 分类 |
商业参数
| 交货时间 | 20 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | ||
电气参数
| 最大额定电流 | 13/Contact A | 最小输入电压 | 600VDC|600VAC |
| 最小供电电压 | 600VDC/600VAC | ||
机械参数
| 颜色 | Natural | 深度 | 19.6 mm |
| 间距 | 0.165" (4.20mm) | 高度 | 15.1 mm |
| 重量 | 0.003 | 包装方式 | Bag |
| 排间距 | 0.165" (4.20mm) | 触头类型 | Female Socket |
| 基体材料 | :PA Polyamide (Nylon) | 外壳颜色 | Natural |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Latch Lock | 排数 | 2 |
| 壳体材料 | Nylon 66 | 总长度 | 30.6 mm |
| 触点数 | 14 | 接触件端接 | Crimp |
| 位数 | 14 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | :Mini-Fit Jr |
| 行业别名 | 39-01-2140, 39012140 | 适用产品/相关产品 | :5556, 44485 Mini-Fit Crimp Terminals |
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
0039299143
molex
Conn Wire to Board HDR 14 POS 4.2mm Solder ST Thru-Hole Tray CONN HEADER 14POS 4.2MM VERT TIN
0039301142
molex
Conn Wire to Board HDR 14 POS 4.2mm Solder RA Thru-Hole Tray Conn Power HDR 14 POS 4.2mm Solder RA Thru-Hole 14 Terminal 1 Port Bag CONN HEADER 14POS 4.2MM R/A GOLD
0039288140
molex
Conn Wire to Board HDR 14 POS 4.2mm Solder ST Thru-Hole Tray Conn Power HDR 14 POS 4.2mm Solder ST Thru-Hole 14 Terminal 1 Port Bag CONN HEADER 14POS 4.2MM VERT TIN
0039299146
molex
Conn Wire to Board HDR 14 POS 4.2mm Solder ST Thru-Hole Tray Conn Power HDR 14 POS 4.2mm Solder ST Thru-Hole 14 Terminal 1 Port Tray CONN HEADER 14POS 4.2MM VERT TIN
0015286141
molex
Conn Wire to Board HDR 14 POS 4.2mm Solder ST Thru-Hole Tray Conn Power HDR 14 POS 4.2mm Solder ST Thru-Hole 14 Terminal 1 Port Tray CONN VERT HEADER 14POS DUAL
0039300140
molex
Conn Wire to Board HDR 14 POS 4.2mm Solder RA Thru-Hole Tray Conn Power HDR 14 POS 4.2mm Solder RA Thru-Hole 14 Terminal 1 Port Bag CONN HEADER 14POS 4.2MM R/A TIN Connector
0039291147
Molex
Conn Power HDR 14 POS 4.2mm Solder RA Thru-Hole 14 Terminal 1 Port Bag CONN HEADER 14POS DL R/A TIN Conn Wire to Board HDR 14 POS 4.2mm Solder RA Thru-Hole Bag
0039299142
Molex
Conn Power HDR 14 POS 4.2mm Solder ST Thru-Hole 14 Terminal 1 Port Tray CONN HEADER 14POS 4.2MM VERT TIN
0015246141
Molex
Conn Power HDR 14 POS 4.2mm Solder ST Thru-Hole 14 Terminal 1 Port Tray CONN HEADER VERT 14POS T/H
0039296148
Molex
Conn Power HDR 14 POS 4.2mm Solder ST Thru-Hole 14 Terminal 1 Port Bag CONN HEADER 14POS 4.2MM VERT GOL
15-06-0145
Molex Connector Corporation
CONN PLUG 14POS W/PANEL MNT EARS Headers & Wire Housings PLUG DUAL ROW 14POS w/panel mount ears Conn Housing PL 14 POS 4.2mm Crimp ST Bag
39-01-2141
Molex Connector Corporation
CONN PLUG 14POS PANEL MOUNT 14 way dual row panel mount plug Headers & Wire Housings 14 CKT PLUG HOUSING Conn Housing M 14 POS 4.2mm Crimp ST Panel Mount Bag 14CKT NEW MINI FIT HOUSIN 555914P Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 14 路 直 公 面板安装 压接连接器外壳

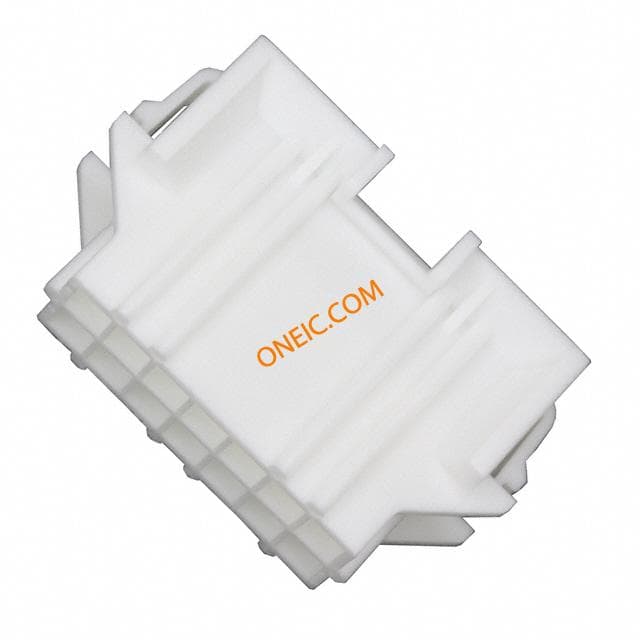

15-06-0146
Molex Connector Corporation
CONN PLUG 14POS W/PANEL MNT EARS Plug Housing 4.20mm BMI UL94V-0,D/R,14w Headers & Wire Housings 4.20MM PLUG HSG 14P 2ROW W/PNL MT EARS 4.20mm Pitch Mini-Fit® BMI Plug Housing, Dual Row with Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-0, 14 Circuits Molex MINI-FIT BMI 系列 2 行 4.2mm 节距 14 路 直 公 面板安装 压接连接器外壳
0460111401
Molex Inc
CONN VERT BMI HDR ASY GOLD HCS

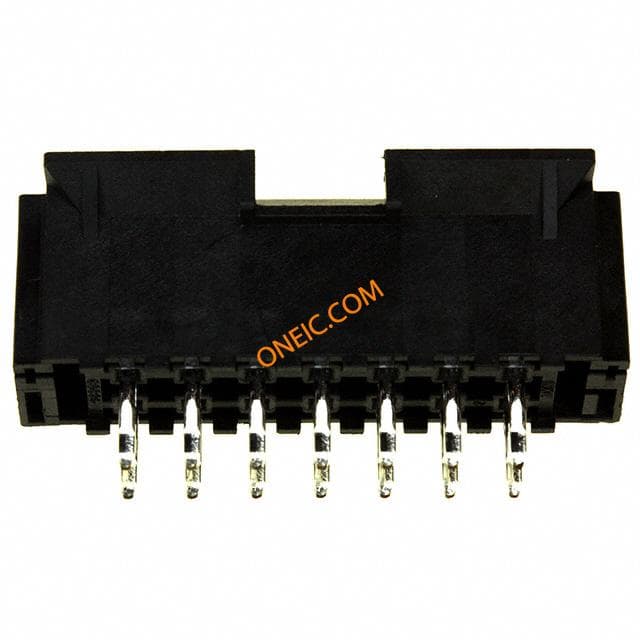

43879-0027
Molex Connector Corporation
CONN HEADER 14POS 4.2MM DUAL TIN Headers & Wire Housings VERT MINIFIT CPI 14P dual row interface 4.20mm Pitch Mini-Fit® CPI Header, Compliant Pin Interface, Dual Row, Vertical, 14 Circuits, Tin (Sn) Plating HEADER, MINI-FIT CPI, TIN, 14WAY

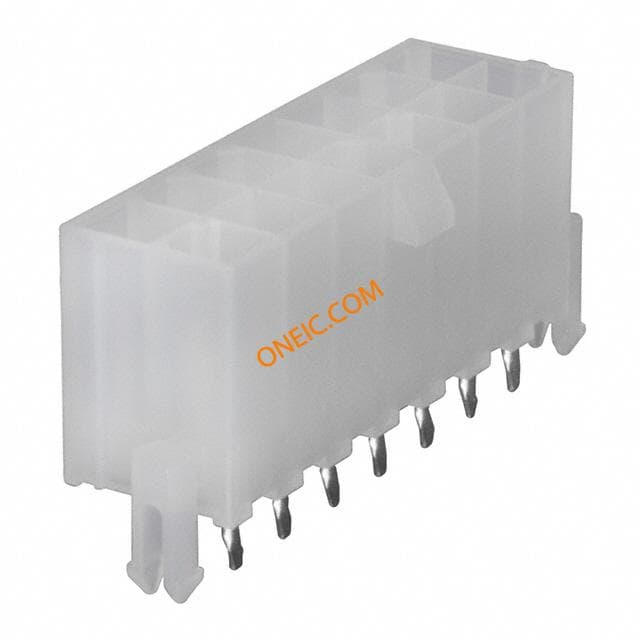

39-30-6147
Molex Connector Corporation
CONN HEADER 14POS 4.2MM VERT TIN Headers & Wire Housings 4.2MM 2R VERT14P HDR SN W/SNAP-IN PEG LCK Conn Power HDR 14 POS 4.2mm Solder ST Thru-Hole 14 Terminal 1 Port Tray

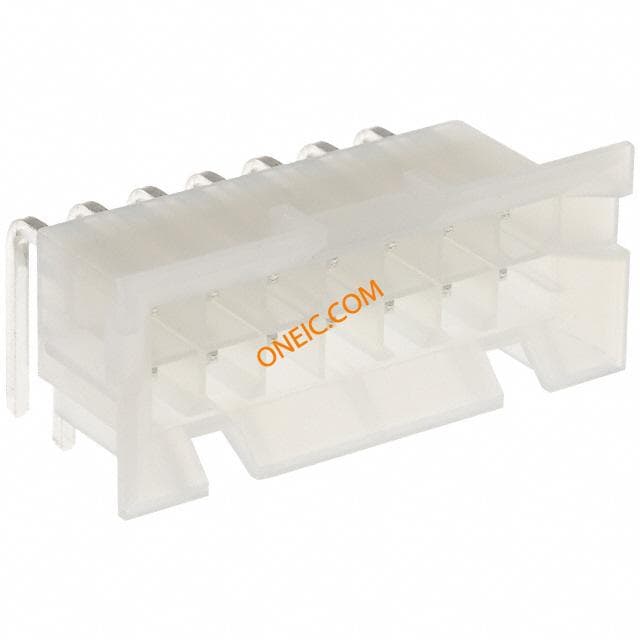

15-24-6140
Molex Connector Corporation
CONN HEADER 14POS 4.2MM R/A TIN Headers & Wire Housings R/A HDR DUAL ROW 14P Conn Power HDR 14 POS 4.2mm Solder RA Thru-Hole 14 Terminal 1 Port Tray

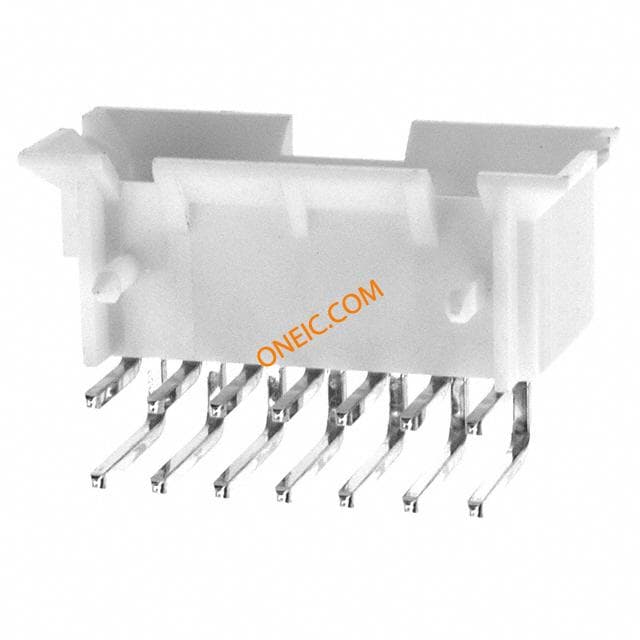

15-24-9144
Molex Connector Corporation
CONN HEADER 14POS 4.2MM R/A TIN Headers & Wire Housings R/A HDR DUAL ROW 14P Conn Power HDR 14 POS 4.2mm Solder RA Thru-Hole 14 Terminal 1 Port Tray Molex MINI-FIT BMI 系列 4.2mm节距 14路 (2排) 直角 PCB 针座, 焊接端接, 13A , 通孔

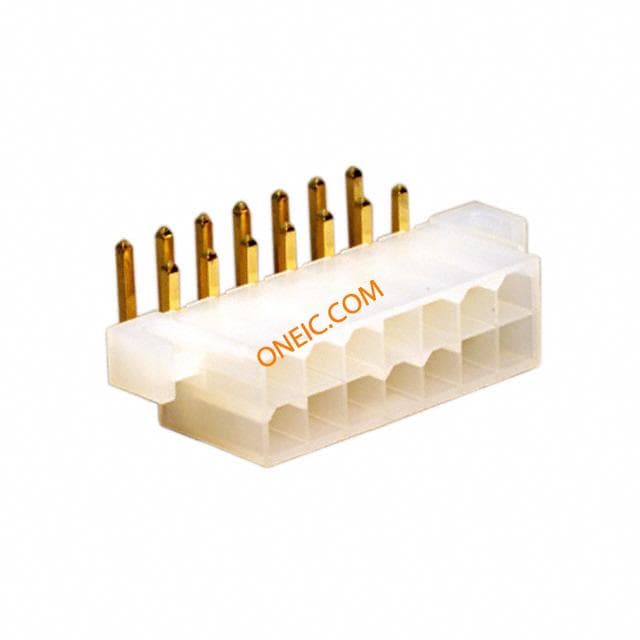

39-29-5143
