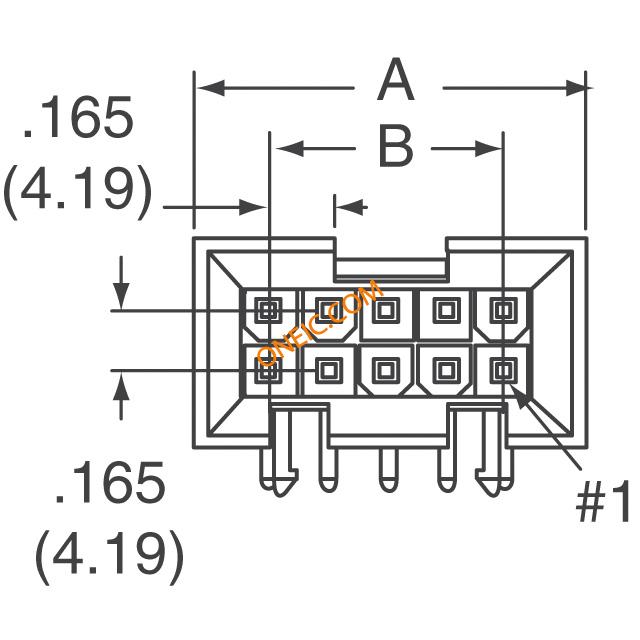

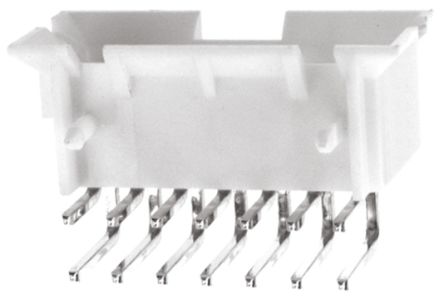

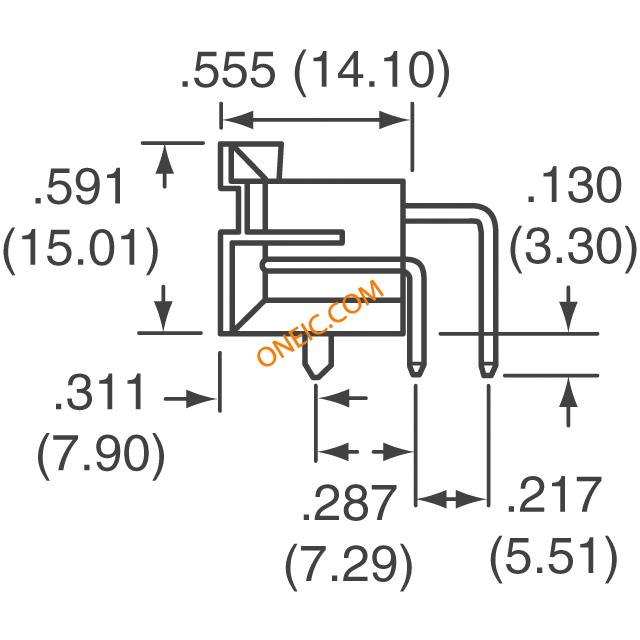

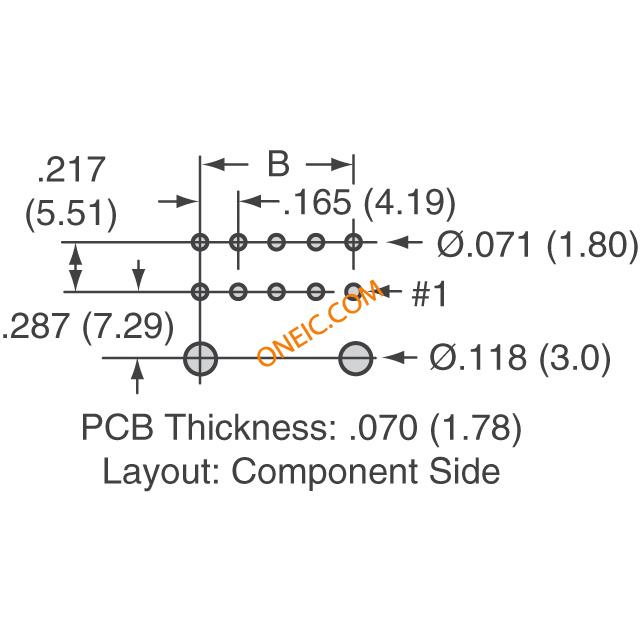

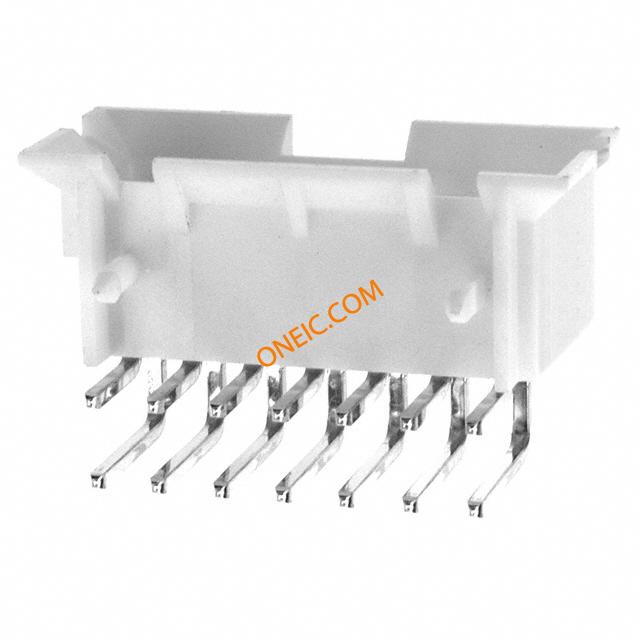

15-24-9144
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 14POS 4.2MM R/A TIN Headers & Wire Housings R/A HDR DUAL ROW 14P Conn Power HDR 14 POS 4.2mm Solder RA Thru-Hole 14 Terminal 1 Port Tray Molex MINI-FIT BMI 系列 4.2mm节距 14路 (2排) 直角 PCB 针座, 焊接端接, 13A , 通孔 |
| 分类 |
商业参数
| 商标名 | Mini-Fit BMI | 零件号别名 | 0015249144 A-42404-14B1 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 360 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 11 A, 6 A |
机械参数
| 颜色 | Natural | 间距 | 0.165" (4.20mm) |
| 包装方式 | Tray | 方向 | 直角 |
| 排间距 | 0.165" (4.20mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Nylon | 端接排数 | 焊接 |
| 端接样式 | Through Hole | 触点数 | 14 |
| 位数 | 14 | 接触镀层厚度 | 100µin (2.54µm) |
产品信息
| 类型 | Pin Header | 系列 | 42404 |
| 覆盖范围 | 覆盖 | 产品特性 | Board Lock |
| 产品子类型 | Header Assemblies | 基础产品编号 | 42404 |
| 加载位置数 | All | ||
相关型号
0015248152
molex
Conn Wire to Board HDR 14 POS 4.2mm Solder ST Thru-Hole Tray CONN RCPT 14POS VERT DUAL
0039012140
molex
Conn Housing RCP 14 POS 4.2mm Crimp ST Bag CONN RECEPT 14POS DUAL CONNECTOR HOUSING, RECEPTACLE, 14POS, 2ROW, 4.2MM
0039012145
molex
Conn Housing RCP 14 POS 4.2mm Crimp ST Bag CONN RECEPT 14POS DUAL Conn Housing F 14 POS 4.2mm Crimp ST Cable Mount Bag
0015247140
Molex
Conn Power RCP 14 POS 4.2mm Solder ST Thru-Hole 14 Terminal 1 Port Tray CONN HEADER 14POS 4.2MM VERT TIN
0424741441
Molex
Conn Housing RCP 14 POS 4.2mm Crimp ST Bag MINIFIT JR BMI PMRCPT DLRW V-0

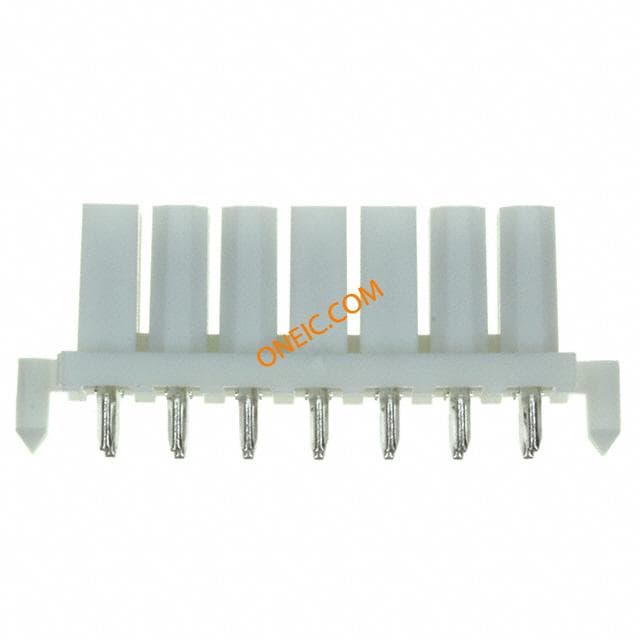

15-24-7141
Molex Connector Corporation
CONN HEADER 14POS 4.2MM VERT TIN Headers & Wire Housings RECPT VERT HDR 14P DUAL ROW

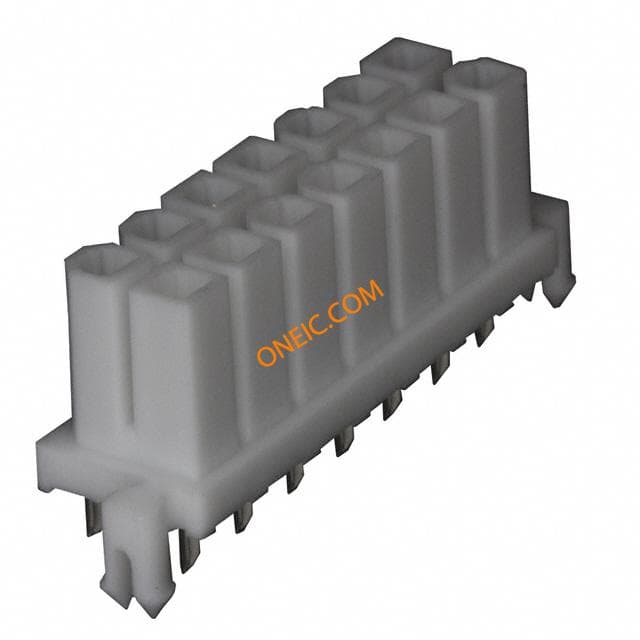

15-24-7143
Molex Connector Corporation
CONN HEADER 14POS 4.2MM STR GOLD Headers & Wire Housings 2x7 Au 94V-0 VRT HDR 4.20mm Pitch Mini-Fit® BMI Receptacle Header, Dual Row, Vertical, with Snap-In Plastic Pegs, 0.80µm Gold (Au), UL 94V-0, 14 Circuits
15-06-0140
Molex Connector Corporation
CONN RECEPT 14POS W/PANEL MOUNT 14w D/R BMI receptacle housing Headers & Wire Housings RECPT DUAL ROW 14POS w/panel mount ears Conn Housing RCP 14 POS 4.2mm Crimp ST Bag HOUSING, 4.20MM, 14WAY MINIFIT JR BMI PMRCPT 14 pos with panelmount ears MINIFITJRBMIPMRCPT14poswithpanelmountears Molex MINI-FIT BMI 系列 2 行 4.2mm 节距 14 路 直 母 压接连接器外壳

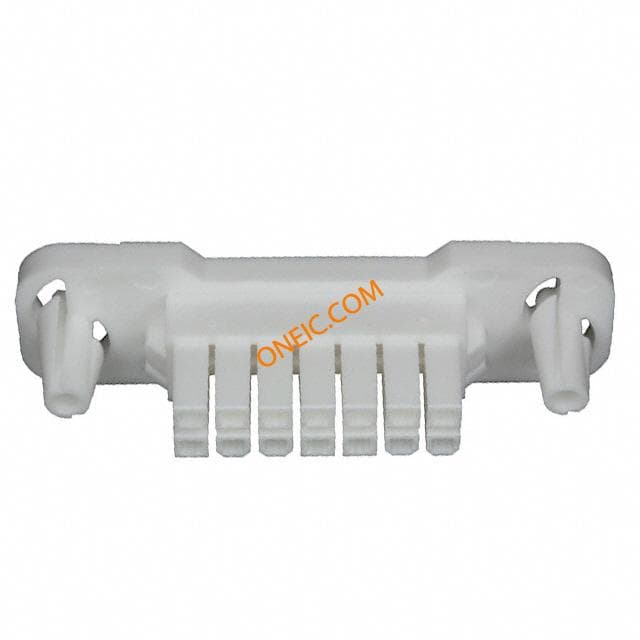

15-06-0141
Molex Connector Corporation
CONN RECEPT 14POS W/PANEL MOUNT Housing 4.2mm BMI recept,D/R,UL94V-0,14w Headers & Wire Housings RECPT DUAL ROW 14P w/panel mount ears 4.20mm Pitch Mini-Fit® BMI Receptacle Housing, Dual Row with Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-0, 14 Circuits CONNECTOR, HOUSING, RCPT, 14POS Molex MINI-FIT BMI 系列 2 行 4.2mm 节距 14 路 直 母 面板安装 压接连接器外壳

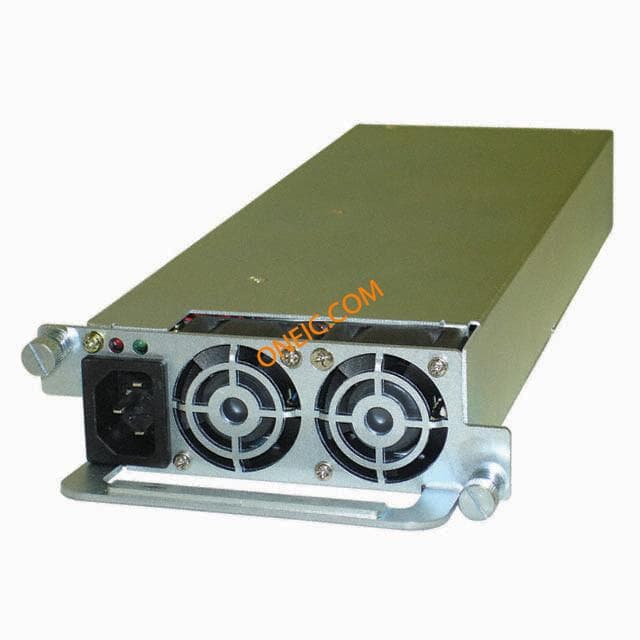

PSM500-210-R
