点击放大查看

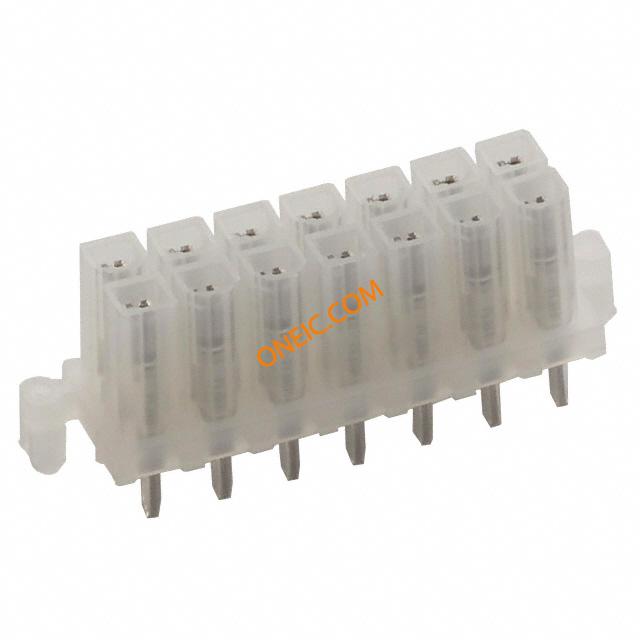

0015247140
| 制造商 | Molex, LLC |
| 描述 | Conn Power RCP 14 POS 4.2mm Solder ST Thru-Hole 14 Terminal 1 Port Tray CONN HEADER 14POS 4.2MM VERT TIN |
| 分类 |
商业参数
| 交货时间 | 43 Days | 子类别 | Connector Power |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 mohm | 最大额定电流 | 6/Contact A |
| 最小输入电压 | 600V | 最小供电电压 | 600V |
机械参数
| 颜色 | Natural | 深度 | 9.6 mm |
| 间距 | 0.165" (4.20mm) | 高度 | 11.34 mm |
| 直径 | Not Required mm | 包装方式 | Tray |
| 排间距 | 0.165" (4.20mm) | 端接方式 | Solder |
| 触头类型 | Female Socket | 外壳颜色 | Natural |
| 安装类型 | Through Hole | 连接器类型 | Receptacle |
| 接触镀层 | Tin Over Nickel | 安装样式 | Through Hole |
| 排数 | 2 | 触头材料 | Brass Alloy |
| 壳体材料 | Nylon 6/6 | 总长度 | 34.6 mm |
| 触点数 | 14 | 位数 | 14 |
| 接触镀层厚度 | 100µin (2.54µm) | ||
产品信息
| 类型 | Power | 连接器性别 | RCP |
| 产品特性 | Board Lock | 端口数 | 1 |
| 行业别名 | 15-24-7140, 15247140 | 加载位置数 | All |
环境参数
| 工作温度 | -40C to 105C | 结工作温度 | 105C |
文档与媒体
相关型号
15-24-6146
Molex
Headers & Wire Housings HEADER 94V-2 538-15-24-6046 CONN HEADER 14POS 4.2MM VERT TIN Conn Power HDR 14 POS 4.2mm Solder ST Thru-Hole 14 Terminal 1 Port Tray

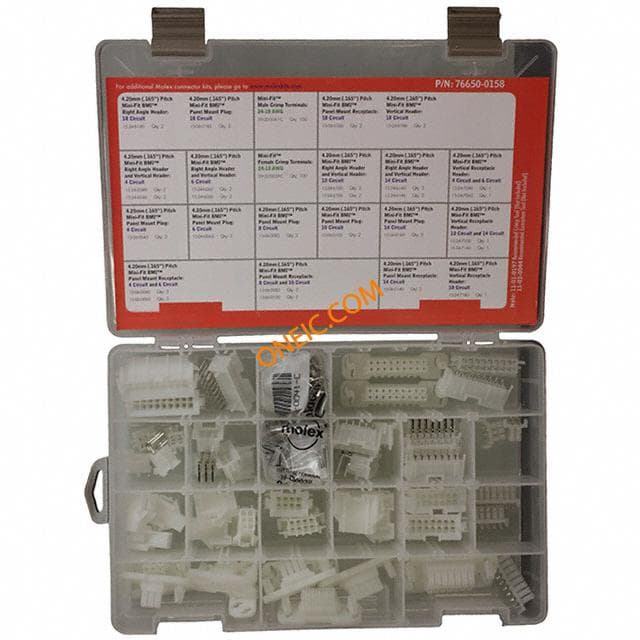

76650-0158
