点击放大查看

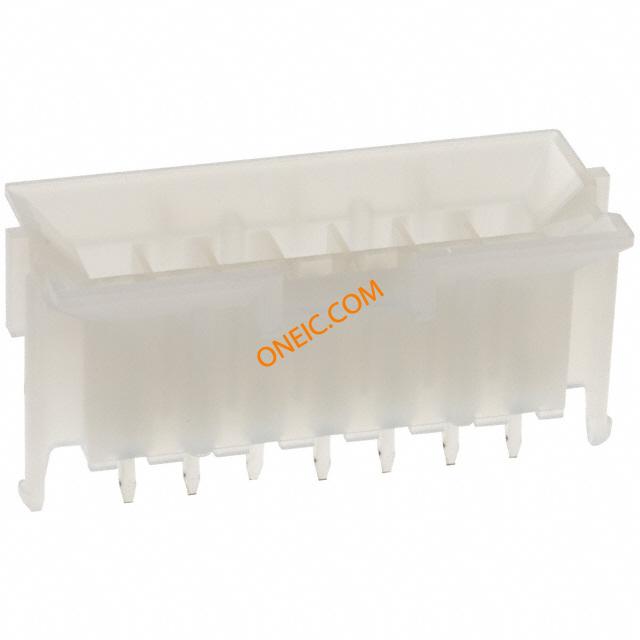

15-24-6146
| 制造商 | Molex, LLC |
| 描述 | Headers & Wire Housings HEADER 94V-2 538-15-24-6046 CONN HEADER 14POS 4.2MM VERT TIN Conn Power HDR 14 POS 4.2mm Solder ST Thru-Hole 14 Terminal 1 Port Tray |
商业参数
| 标准包装数量 | 10 | ||
机械参数
| 颜色 | Natural | 间距 | 0.165" (4.20mm) |
| 包装方式 | Tray | 排间距 | 0.165" (4.20mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin | 排数 | 2 |
| 位数 | 14 | 接触镀层厚度 | 100µin (2.54µm) |
产品信息
| 产品特性 | Board Lock | 加载位置数 | All |
文档与媒体
