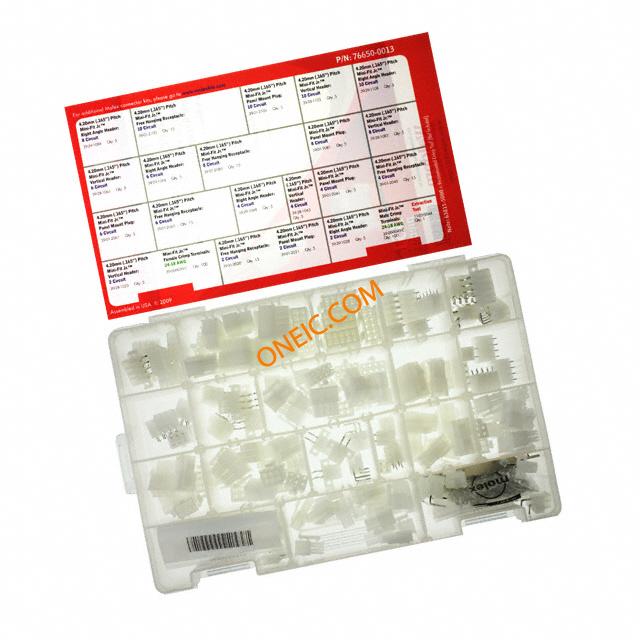

76650-0013
| 制造商 | Molex, LLC |
| 描述 | COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,2,4,6,8POS 3-9A PANEL MOUNT, THROUGH HOLE MOUNTING PLUGS,RECEPTACLE,RIGHT ANGLE HEADER, VERTICAL HEADER 4.2MM PITCH 600V 24-18 WIRE SIZE KIT CONN MINI-FIT JR 4.20MM Board to Board & Mezzanine Connectors MINIFIT JR DELUX KIT COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,2,4,6,8POS 3-9A PANEL MOUNT, THROUGH HOLE MOUNTING PLUGS,RECEPTACLE,RIGHT ANGLE HEADER, ... Kit Description:Vertical and Right Angle Header Plug and ReceptacleKit Category:Wire to Wire and Wire to BoardSolution:PowerPackaging:Tackle Box: 11" by 7.25"Num. Pieces:351 MINI-FIT JR. DELUXE PWR CONNECTOR KIT VERT & RT ANGLE HEADER PLUG & RECEPT |
| 分类 |
商业参数
| 标准包装规格 | 1 | 零件号别名 | 0766500013 |
| 产品类别 | Board to Board & Mezzanine Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 电压 | 600 V | 额定电压 | 600 V |
| 最大额定电流 | 3 A to 9 A | ||
机械参数
| 间距 | 4.2 mm | 包装方式 | Plastic Box with Bin Guide |
| 导线线规 | 24-18 | 安装类型 | Vertical, Right |
| 行程角度 | Vertical/Right Angle | 连接器类型 | Receptacles, Plugs and Headers |
| 触点数 | 2 to 10 | ||
产品信息
| 系列 | 76650 | 值 | 351 pcs - Assorted 2, 4, 6, 8, 10 Circuit Header, Housing, 24 ~ 18 AWG Crimp Terminals, Extraction Tool |
| 套件类型 | Rectangular - Contact, Header, Housing | 制造商全称 | 76650 |
| 产品子类型 | Kits | 配置 | Wire-to-Board, Wire-to-Wire |
| 应用细节 | Appliances, Automotive, Home Applications, Computer and Gaming, Industrial and Business Equipment, Telecommunications and Medical Equipment | ||
文档与媒体
相关型号
39-01-2041
molex
Conn Housing PL 4 POS 4.2mm Crimp ST Panel Mount Bag 4 way dual row panel mount plug Headers & Wire Housings 4 CKT PLUG HOUSING Conn Housing M 4 POS 4.2mm Crimp ST Panel Mount Bag PLUG, MINI-FIT, 4WAY PLUG HOUSING-PANEL MOUNT; 94V-2; 4 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 4 路 直 公 面板安装 压接连接器外壳
39-01-2100
molex
Conn Housing RCP 10 POS 4.2mm Crimp ST Bag 10 way receptacle,Mini-Fit Jr Headers & Wire Housings 10 CKT RCPT HOUSING RECEPTACLE, MINI-FIT, 10WAY PLUG & SOCKET HOUSING, RECEPTACLE, NYLON RECEPTACLE HOUSING; 94V-2; 10 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 10 路 直 母 压接连接器外壳
39-01-2080
Molex Connector Corporation
CONN RECEPT 8POS DUAL 8 way receptacle,Mini-Fit Jr Headers & Wire Housings 8 CKT RCPT HOUSING Conn Housing RCP 8 POS 4.2mm Crimp ST Bag RECEPTACLE, 8WAY, CRIMP, MINI-FIT PLUG & SOCKET HOUSING, RECEPTACLE, NYLON RECEPTACLE HOUSING; 94V-2; 8 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 8 路 直 母 压接连接器外壳
39-01-2081
Molex Connector Corporation
CONN PLUG 8POS PANEL MOUNT 8 way dual row panel mount plug Headers & Wire Housings 8 CKT PLUG HOUSING Conn Housing M 8 POS 4.2mm Crimp ST Panel Mount Bag HOUSING, PLUG, DUAL ROW, 8WAY PLUG HOUSING-PANEL MOUNT; 94V-2; 8 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 8 路 直 公 面板安装 压接连接器外壳
39-01-2021
Molex
2 way dual row panel mount plug Headers & Wire Housings 2 CKT PLUG HOUSING Conn Housing M 2 POS Crimp ST Panel Mount Bag PLUG, MINI-FIT, 2WAY, CRIMP PLUG HOUSING-PANEL MOUNT; 94V-2; 2 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 2 路 直 公 压接连接器外壳
39-01-2060
Molex
6 way receptacle,Mini-Fit Jr Headers & Wire Housings 6 CKT RCPT HOUSING Conn Housing RCP 6 POS 4.2mm Crimp ST Bag RECEPTACLE, MINI-FIT, 6WAY, CRIMP RECEPTACLE HOUSING; 94V-2; 6 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 6 路 直 母 压接连接器外壳
39-01-2040
Molex
4 way receptacle,Mini-Fit Jr Headers & Wire Housings 4 CKT RCPT HOUSING Conn Housing RCP 4 POS 4.2mm Crimp ST Bag RECEPTACLE, MINI-FIT, 4WAY ,CRIMP RECEPTACLE HOUSING; 94V-2; 4 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 4 路 直 母 压接连接器外壳
39-01-2020
Molex
2 way receptacle,Mini-Fit Jr Headers & Wire Housings 2 CKT RCPT HOUSING Conn Housing RCP 2 POS Crimp ST Bag RECEPTACLE, MINI-FIT, 2WAY ,CRIMP PLUG & SOCKET HOUSING, RECEPTACLE, NYLON RECEPTACLE HOUSING; 94V-2; 2 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 2 路 直 母 压接连接器外壳
39-01-2061
Molex
6 way dual row panel mount plug Headers & Wire Housings 6 CKT PLUG HOUSING Conn Housing M 6 POS 4.2mm Crimp ST Panel Mount Bag PLUG, MINI-FIT, 6WAY PLUG HOUSING-PANEL MOUNT; 94V-2; 6 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 6 路 直 公 面板安装 压接连接器外壳
39-29-1068
Molex
Molex 5569 Series 4.2mm Pitch 6 Way 2 Row Right Angle PCB Header, Solder Termination, 8A Headers & Wire Housings 6 CKT R/A HEADER Conn Power HDR 6 POS 4.2mm Solder RA Thru-Hole 6 Terminal 1 Port Bag HEADER, RIGHT ANGLE, DUAL ROW, 6 WAY RT ANGLE HEADER TIN PLATE W/PCB MNT FLANGE; 94V-2; 6 CIRCUT Molex MINI-FIT JR. 系列 4.2mm节距 6路 (2排) 直角 PCB 针座, 焊接端接, 8A , 通孔
