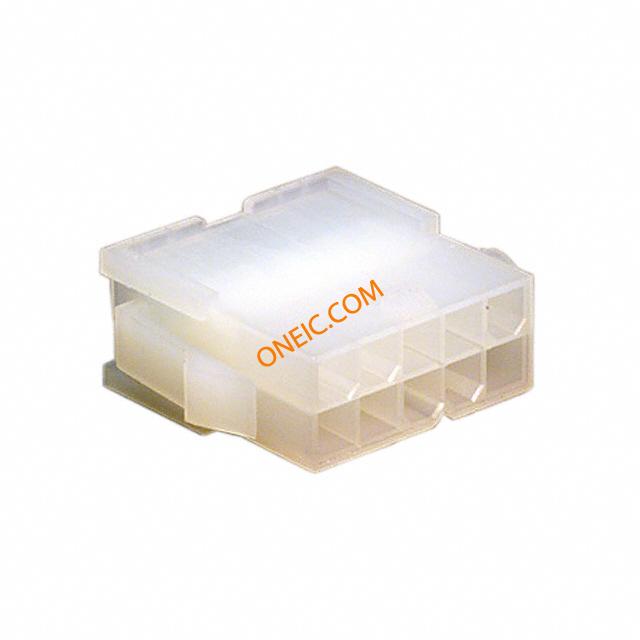

点击放大查看
39-01-2106
| 制造商 | Molex, LLC |
| 描述 | CONN PLUG 10POS PANEL MOUNT 4.20mm,housing,MiniFit,plug,DR,10w Headers & Wire Housings 10 CKT PLUG HOUSING 39-01-2106 4.20mm Pitch Mini-Fit Jr.™ Plug Housing, Dual Row, with and without Panel Mount Ears, UL 94V-0, Panel Mount, 10 Circuits PLUG, MINI-FIT, DUAL ROW, PNL MT, 10WAY .165 mini fit jr, dual row 10 circuits Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 10 路 直 公 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Mini-Fit Jr. | 零件号别名 | 0039012106 5559-10P-210 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 2000 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 13 A |
| 连接器类型 - 电压输入 | Male | ||
机械参数
| 颜色 | Ivory | 深度 | 23.9mm |
| 间距 | 0.165" (4.20mm) | 宽度 | 11.6mm |
| 重量 | 0.003292 | 材料（通用） | :Nylon |
| 包装方式 | Bulk | 排间距 | 0.165" (4.20mm) |
| 触头类型 | Male Pin | 安装类型 | Panel Mount, Snap-In |
| 连接器类型 | Plug | 紧固类型 | Locking Ramp |
| 排数 | 2 | 壳体材料 | Nylon |
| 连接器颜色 | :Natural | 触点数 | 10 |
| 接触件端接 | Crimp | 位数 | 10 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Plug Housing |
| 连接器性别 | Male | 系列 | 5559 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Wire Housings |
| 适用产品/相关产品 | Mini-Fit Jr. Plug | ||
环境参数
| 工作温度 | :105°C | ||
