点击放大查看

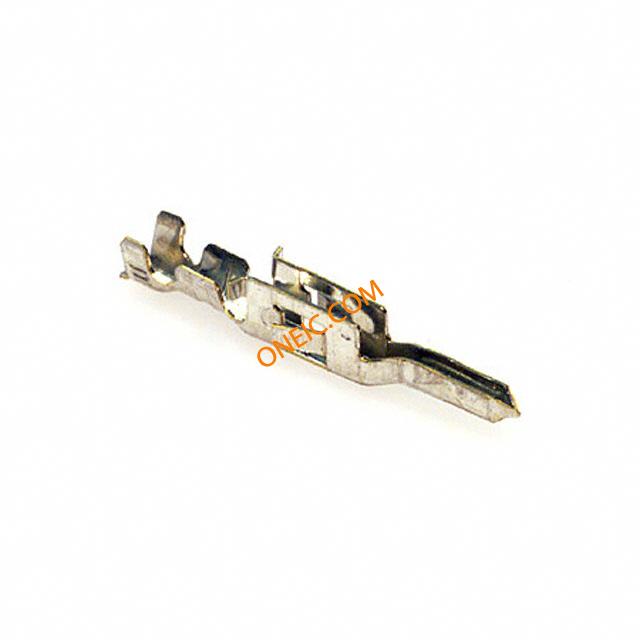

0039000048
| 制造商 | Molex, LLC |
| 描述 | Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 22-28AWG TIN |
| 分类 |
商业参数
| 其他名称 | WM2502CT | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 9 | ||
机械参数
| 深度 | 2.3 | 高度 | 2.3 |
| 包装方式 | Reel | 导线线规 | 22-28 AWG |
| 屏蔽类型 | No | 端接方式 | Crimp |
| 触头类型 | Signal | 安装类型 | Cable Mount |
| 插针或插孔 | Pin | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Tin Over Copper | 触头材料 | Brass |
| 总长度 | 16.8 | 接触件端接 | Crimp |
产品信息
| 类型 | Power | 连接器性别 | PIN |
文档与媒体
