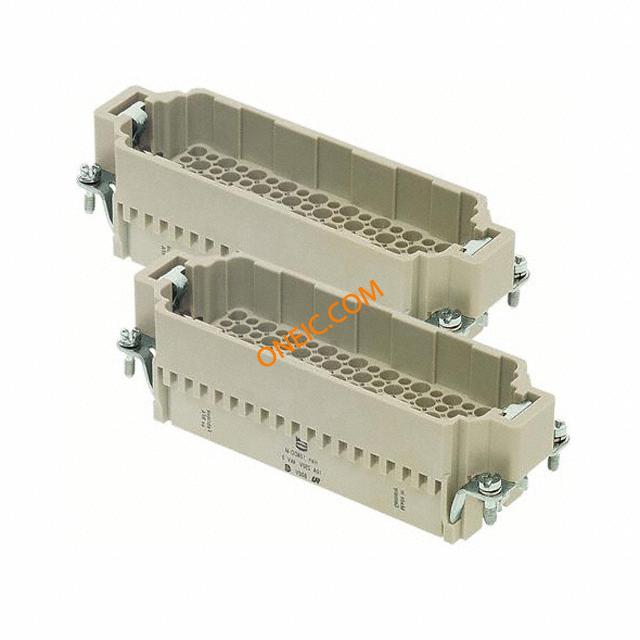

09161083001

制造商	HARTING Technology Group
描述	Conn Housing M 108Signal/1Ground POS Crimp ST Heavy Duty Power Connectors HAN DD 108P M CRIMP ORDER CONTACTS SEP HAN DD 108 POS. M INSERT CRIMP Insert; 250 V; 10 A; Male; 108; RoHS Compliant; Han DD Series RECTANGULAR HAN INSERT PLUG 108WAY CRIMP Insert;250V;10A;Male;108;RoHSCompliant;HanDDSeries Connector: HAN; male; Han DD; PIN:108; 108+PE; size 24B; UL94V-0 Han DD Male Insert: Han DD 108 Position M Insert Crimp Harting Han DD 系列 6行 108针 108P+E极插头插入式插件
分类	连接器解决方案同轴连接器(RF)射频同轴连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	09 09-16-108-3001 108 16 3001	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
海关税号	85369010	材料阻燃等级	UL94 V-0

电气参数

测试电压	4kV	额定电压	600V
最大额定电流	10A	最小输入电压	250V
连接器类型 - 电压输入	for HAN D terminals

机械参数

尺寸	24B	颜色	Gray
深度	33.6	高度	34
重量	0.068	包装方式	Bulk
重量（g）	70.00000	触头类型	Han® D
安装类型	Straight	连接器类型	Insert without Contacts
排数	6	封装形式	size 24B
插入件材料	:Signal	插入力	Male
壳体材料	Polycarbonate	总长度	111
包装数量	3	尺寸/外形	24B
端接样式	Crimp	触点数	108Signal/1Ground
位数	108+Ground	外壳尺寸-插件	:24B
绝缘材料 - 材质	polycarbonate	线规或范围 - AWG	26-14
第一连接器安装特征	108+PE

产品信息

SPG	3	类型	Housing
连接器性别	M	系列	Han-DD
产品子类型	Housings	适配器系列	Han DD
单元数量	1	适用产品/相关产品	:Male crimp contacts, Han 108DD Housings and Hoods

环境参数

工作温度

-40°C ~ 125°C

相关型号

19300241422

Harting Technology Group

Connector Accessories Hood Metal Heavy Duty Power Connectors HAN 24B M32 TOP METAL HOOD HAN B HOOD TOP LC 4 PEGS M32 Low type top entry metric hood,M32 24B HAN24BHOODTOPENTRYLC4PEGSM32 Enclosure: for rectangular connectors; Han; size 24B; for cable Han B Hoods: Han B Hood Top Entry LC 4 Pegs M32 Harting Han B 系列顶入电源连接器

¥47.7219

详情

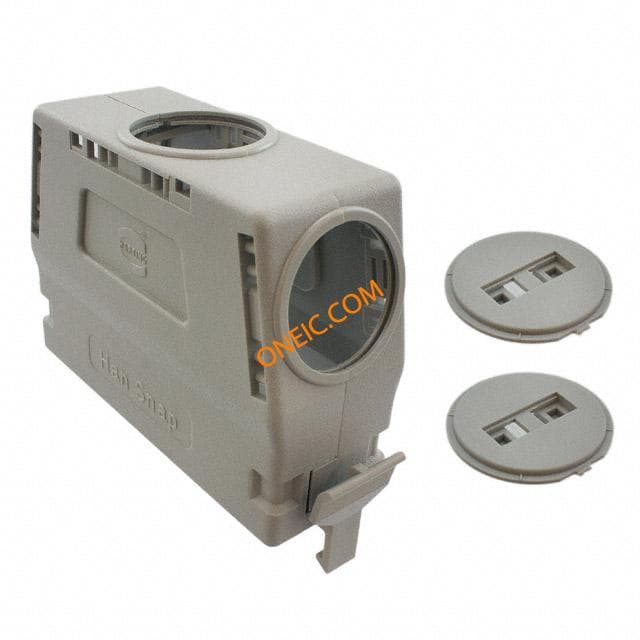

09330240401

Harting Technology Group

Connector Accessories Shell Housing HAN SNAP SHELL HOUSING SIZE 24 Heavy Duty Power Connectors HAN 24B HOOD Han Snap: Han Snap Shell Housing Size 24 Harting Han Snap 系列电源连接器外壳

¥118.6500

详情

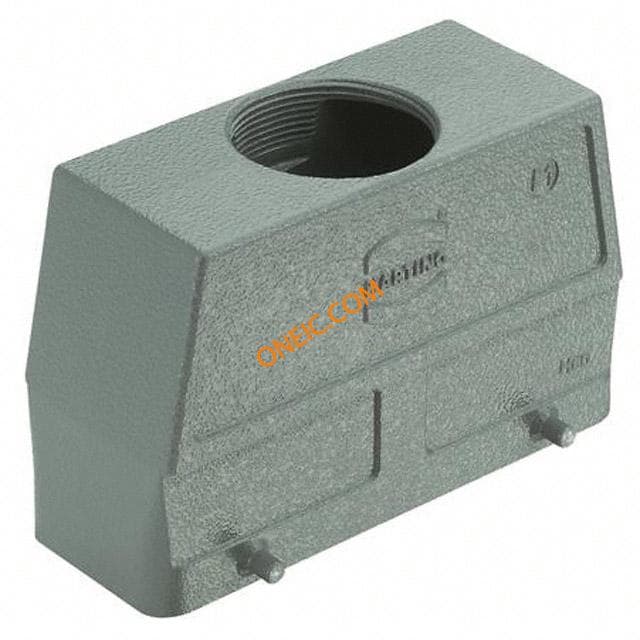

19300240428

Harting Technology Group

HAN 24B-GG-M40 HOOD Heavy Duty Power Connectors METAL HOOD HAN 24B 2 LVR LCKING HAN B HOOD TOP HC M40 HANBHOODTOPENTRYHCM40 Enclosure: for rectangular connectors; Han; size 24B; for cable Han B Hoods: Han B Hood Top Entry HC M40 Harting Han B 系列顶入电源连接器

¥235.5600

详情

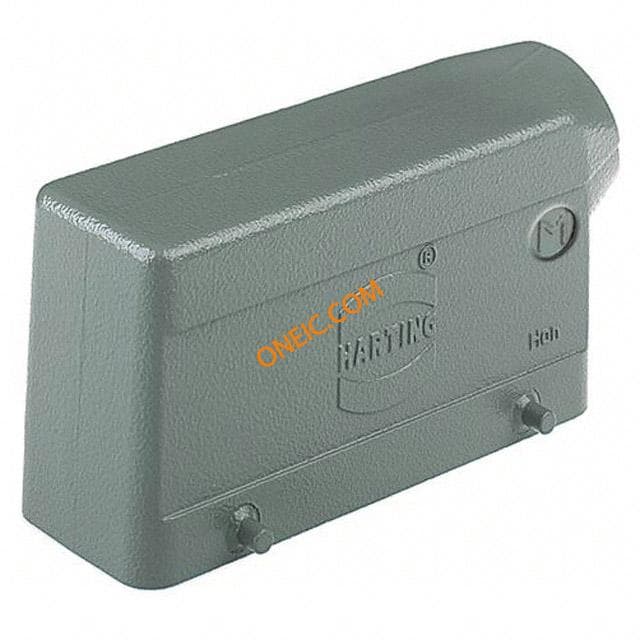

19300241522

Harting Technology Group

Connector Accessories 9 POS Hood Metal Heavy Duty Power Connectors HAN 24B SIDE ENTRY METAL 2 LEVERS HAN B HOOD SIDE LC M32 HAN 24B HOOD SIDE ENTRY LC M32 4 PEG HAN24BHOODSIDEENTRYLCM324PEG Han B Hoods: Han B Hood Side Entry LC M32 Harting Han B 系列侧入电源连接器

¥89.6920

详情

09150006101

Harting Technology Group

Contact PIN Crimp ST Cable Mount Heavy Duty Power Connectors HAN D MALE AWG 16 SILVER PLATED CRIMP HAN D M CRIMP CONT AWG16 Han-Com(R) crimp pin contact,1.5sq.mm Connector;MaleInsert;SilverPlated16AWGCrimpContact;HanDDModular Contact; male; 1.5mm2; Han D; silver plated; crimped; 10A; 3um Han D Male Contact: Han D M Crimp Contact Ag 1,5 QMM-AWG16 Harting Han Contacts 系列公插压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器

¥2.2932

详情

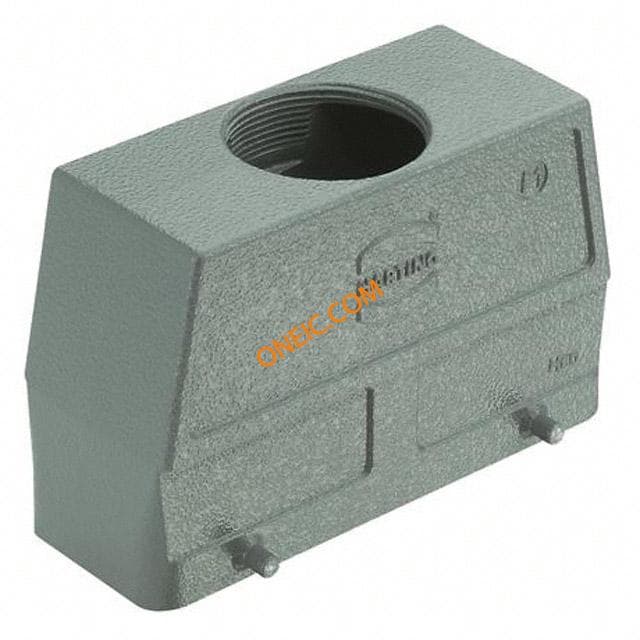

19300240427

Harting Technology Group

Connector Accessories 9 POS Hood Top Entry Metal Heavy Duty Power Connectors HAN 24B M32 TOP METAL HOOD HAN B HOOD TOP HC M32 High type top entry metric hood,M32 24B HAN24BHOODTOPENTRYHC4PEGSM32 Enclosure: for rectangular connectors; Han; size 24B; for cable Han B Hoods: Han B Hood Top Entry HC M32 Harting Han B 系列顶入电源连接器

¥86.6756

详情

09161083101

Harting Technology Group

Conn Housing F 108Signal/1Ground POS Crimp ST Heavy Duty Power Connectors HAN DD 108P F CRIMP ORDER CONTACTS SEP HAN DD 108 POS. F INSERT CRIMP Power Connector Insert; Female; 108 PowerConnectorInsert;Female;108 Connector: HAN; female; Han DD; PIN:108; 108+PE; size 24B; UL94V-0 Han DD Female Insert: Han DD 108 Position F Insert Crimp

¥78.8332

详情

19300240547

Harting Technology Group

Connector Accessories Hood Heavy Duty Power Connectors HAN 24B M32 SIDE METAL HOOD CONN HAN 24B HOOD SIDE M32 HAN 24B HOOD SIDE ENTRY HC 2 PEGS M32 HAN24BHOODSIDEENTRYHC2PEGSM32 Han B Hoods: Han B Hood Side Entry HC 2 Reels M32 Harting Han B 系列侧入电源连接器

¥191.0712

详情

19300240527

Harting Technology Group

Connector Accessories 9 POS Hood Metal Heavy Duty Power Connectors HAN 24B M32 SIDE METAL HOOD HAN B HOOD SIDE HC M32 High type side entry metric hood,M32 24B HAN24BHOODSIDEENTRYHC4PEGSM32 Enclosure: for rectangular connectors; Han; size 24B; for cable Han B Hoods: Han B Hood Side Entry HC M32 Harting Han B 系列侧入电源连接器

¥88.2000

详情

09628240301

Harting Technology Group

Connector Accessories Bulkhead Housing Heavy Duty Power Connectors BULKHEAD MOUNTING HAN 24B 2 LVR LCKING HAN EMC/B 24 BASE PANEL Bulkhead housing Han 24B EMC Han EMC Housings: Han EMC/B 24 Base Panel Harting Han B 系列电源连接器

¥244.6200

详情

09300240301

Harting Technology Group

Connector Accessories Housing Bulkhead Mounting Heavy Duty Power Connectors HAN 24B BULKHEAD MNT 2 LEVERS METAL HAN B BASE PANEL 2 LEVERS 2 Lever B/head Mnt Housing Harting 24B Housing;Metal;DoubleLever;165.4mmLx57mmWx28.5mmH;HanComSeries Enclosure: for Han connectors; Han; size 24B; with double latch Han B Housings: Han B Base Panel 2 Levers Harting Han B 系列电源连接器外壳

¥76.4400

详情

09150006106

Harting Technology Group

Contact PIN Crimp ST Cable Mount Heavy Duty Power Connectors HAN D MALE AWG 14 SILVER PLATED CRIMP HAN D M CRIMP CONTACT AG AWG 14 Han D Male Crimp Contact Ag AWG 14 Connector;Male Insert;Silver Plated 14 AWG Crimp Contact;Han DD Modular Connector;MaleInsert;SilverPlated14AWGCrimpContact;HanDDModular Contact; male; 2.5mm2; Han D; silver plated; crimped; 10A; 3um Han D Male Contact: Han D M Crimp Contact Ag AWG 14 Harting Han Contacts 系列公插压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器

¥2.1560

详情

09150006171

Harting

HAN D M CRIMP CONTACT FE(AU) Heavy Duty Power Connectors MALE CONTACT GOLD PLATED

¥54.8760

详情

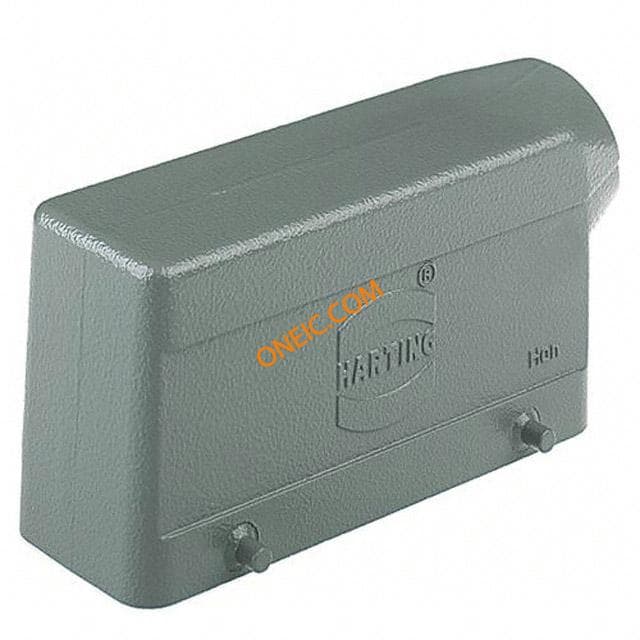

09300241520

Harting

HAN B HOOD SIDE LC 4 PEGS PG 21 Heavy Duty Power Connectors HAN 24B PG21 SIDE METAL HOOD Lo type side entry hood for 2 lever,PG21 Hood;Metal;120mm;56mm;62.5mm;Pg21CableEntry Enclosure: for Han connectors; Han; size 24B; for cable; angled Han B Hoods: Han B Hood Side Entry LC 4 Pegs PG 21 Harting Han B 系列侧入电源连接器

¥126.8400

详情

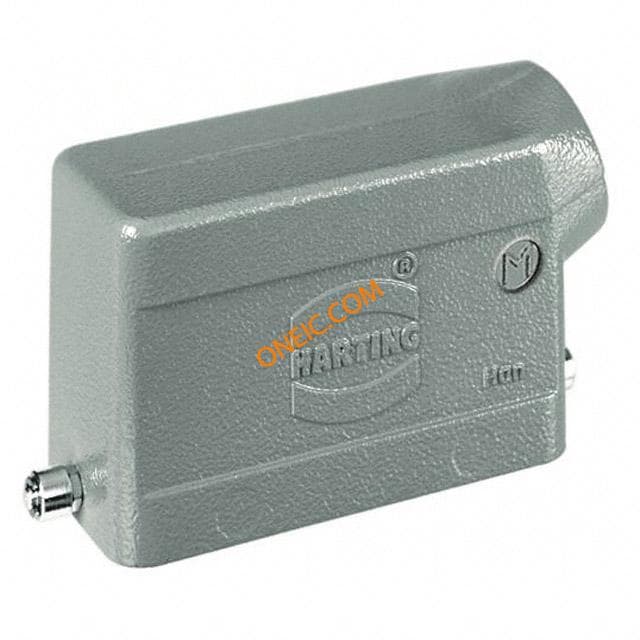

19300241542

Harting

HAN B HOOD SIDE LC M32 2 REELS Heavy Duty Power Connectors METAL HOOD HAN 24B 1 LVR LCKING "HAN 24B HOOD SIDE ENTRY LC M32 2 PEG HAN24BHOODSIDEENTRYLCM322PEG Han B Hoods: Han B Hood Side Entry LC M32 4 Peg Drill Harting Han B 系列侧入电源连接器

¥58.2410

详情

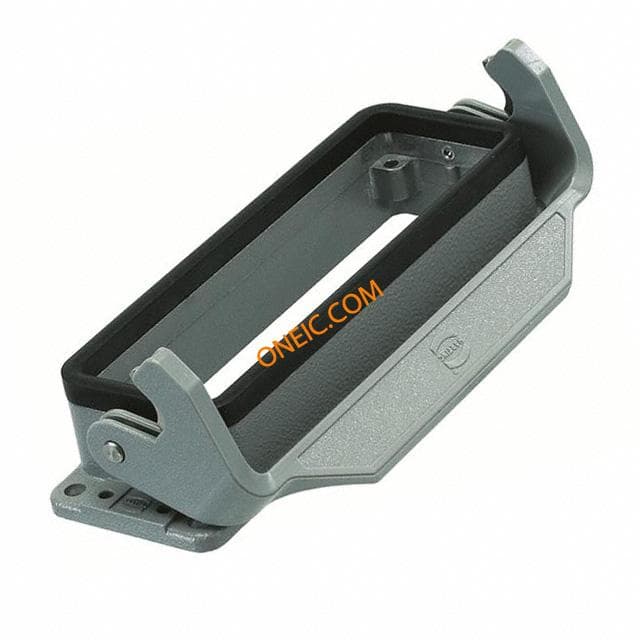

09300240307

Harting

HAN B BASE PANEL 1 LEVER Heavy Duty Power Connectors HAN 24B BULKHEAD MNT 1 LEVER METAL Low panel mount housing w/1 lever,24B Housing;Metal;SingleLever;140mmLx65.7mmWx28.5mmH;HanComSeries Enclosure: for Han connectors; Han; flange (4 holes), on panel Han B Housings: Han B Base Panel 1 Lever Harting Han B 系列电源连接器

¥172.1400

详情

19300241231

Harting

HAN B BASE LC 2 LEVERS 1 X M25 Heavy Duty Power Connectors SURFACE MOUNTING HSG HAN 24B 1 SIDE ENTRY Low surface mount housing w/2 levers,M25 24BS/MNTHOUSING1XM25 Enclosure: for Han connectors; Han; size 24B; with double latch Han B Housings: Han B Base Surface LC 2 Levers 1 x M25 Harting Han B 系列电源连接器

¥193.0207

详情

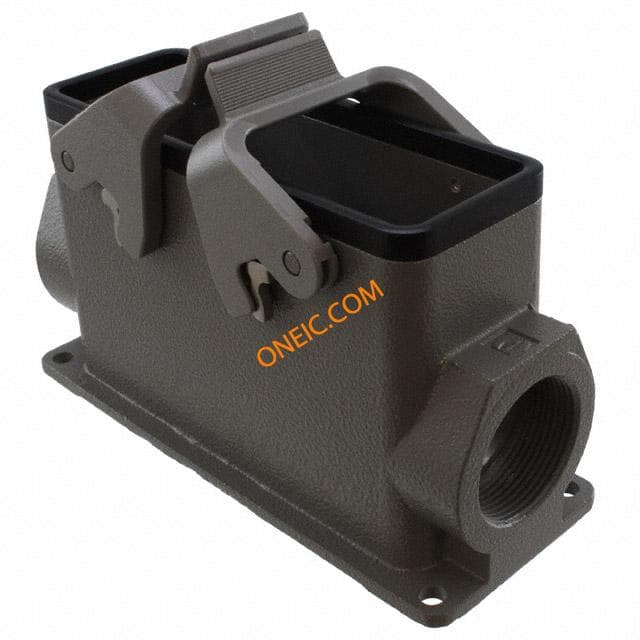

19300240272

Harting

HAN B BASE HC 2 LEVERS 2 X M32 Heavy Duty Power Connectors SURFACE MOUNTING HSG HAN 24B 2 SIDE ENTRY High SMT 24B housing w/2levers,M32 SIDEENTRYHOOD,SIZE24B,METAL,Each Enclosure: for Han connectors; Han; size 24B; with double latch Han B Housings: Han B Base Surface HC 2 Levers 2 x M32 Harting Han B 系列电源连接器

¥144.6823

详情

09370240521

Harting

HAN M HOOD SIDE HC 4 PEGS PG 29 Heavy Duty Power Connectors METAL HOOD HAN 24B 2 LVR LCKING HanMHoodSideEntryHC4PegsPG29 Han M Hoods: Han M Hood Side Entry HC 4 Pegs PG 29 Harting HAN M 系列侧入电源连接器外壳

¥303.0080

详情

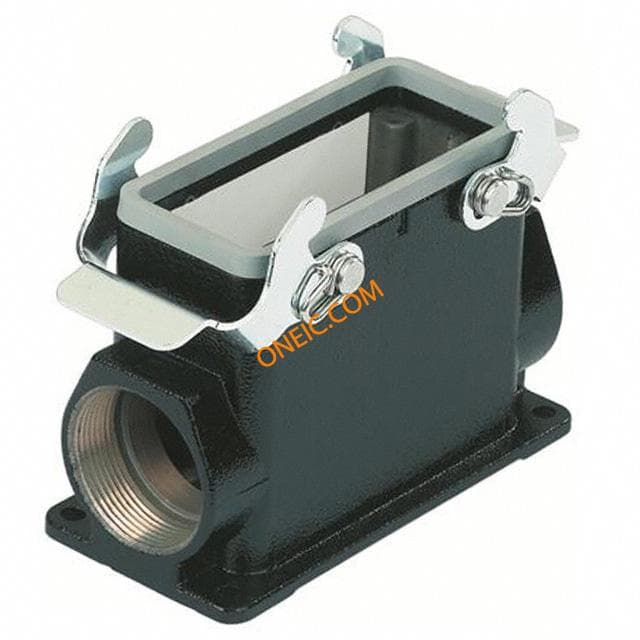

19370240272
