点击放大查看

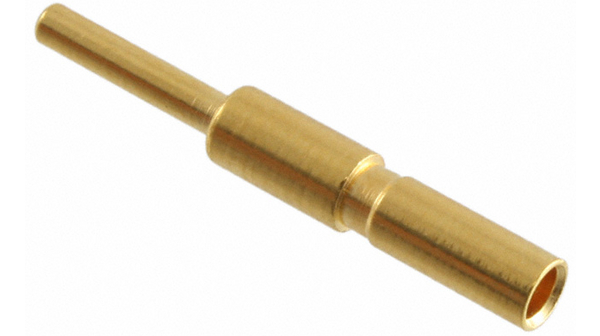

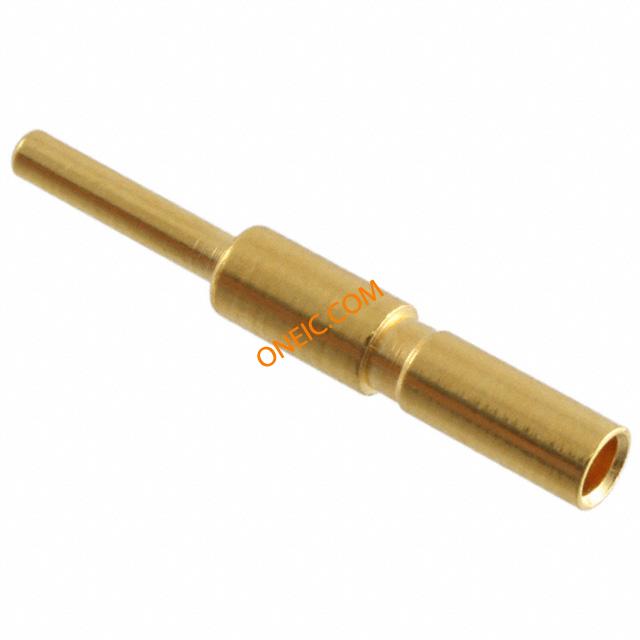

SC000036
| 制造商 | |
| 描述 | Contact PIN Crimp ST Cable Mount CONTACT PIN CRIMP 14AWG AU 2.0MM M23 B Series Male Circular Connector Contact, Crimp Circular Metric Connectors Pin Contact Machined RockSolid 2.0mm CRIMP PIN, MACHINED, 2MM Contact; Pin; Crimp; 2.0 mm Dia.; M23; B Ser. Socket contact, Size 2 mm, SC000036, Amphenol Amphenol M23 B 系列 公 压接端接 圆形 连接器 触芯, 使用于M23 连接器 |
| 分类 |
商业参数
| 其他名称 | 889-1119 | 零件号别名 | 14R7595 |
| 产品类别 | Circular Metric Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | ||
电气参数
| 测试电压 | 6000V | 额定电压 | 630V |
| 短路电流 | 28A/30A | ||
机械参数
| 尺寸 | 2.0mm | 重量 | 0.00154 |
| 包装方式 | Bulk | 导线线规 | 14 AWG |
| 屏蔽类型 | No | 端接方式 | Crimp |
| 安装类型 | Cable Mount | 插针或插孔 | Pin |
| 连接器类型 | Connector Circular | 接触镀层 | Gold |
| 触头材料 | Brass | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 接触件端接 | Crimp |
| 接触镀层厚度 | 10µin (0.25µm) | 线规或范围 - AWG | :14AWG |
产品信息
| 类型 | Machined | 连接器性别 | PIN |
| 系列 | M23 B | 产品子类型 | Contacts |
| 适用产品/相关产品 | :M23 Series Circular Connectors | ||
环境参数
| 工作温度 | +130°C | ||
文档与媒体
相关型号
AF8
amphenol
AF8 CRIMP TOOL, 12-26 AWG
AFM8
amphenol
TOOL CRIMP TOOL, 20-32 AWG
MB1JJN0600
amphenol-sine systems
Conn Circular SKT 6 POS ST Cable Mount 6 Terminal 1 Port CONN RCPT 6POS MALE STR 6 Pole Female Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Circular Metric Connectors M23 B-Series Strt Extension 6 Pos. EXTENSION PLUG, M23-B, 6WAY, PIN Conn; Circ; Plug; Male; Extension; 6 Pos; Crimp; M23; B Ser. Amphenol 6路 电缆安装 直向 连接器 插座 , 母触点
MB1JJN0900
amphenol-sine systems
Conn Circular PIN 9 POS ST Cable Mount 9 Terminal 1 Port CONN RCPT 9POS MALE STR 9 Pole Female Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Circular Metric Connectors M23 B-Series Strt Extension 9 Pos. EXTENSION PLUG, M23-B, 9WAY, PIN Conn; Circ; Plug; Male; Extension; 8 Pos; Crimp; M23; B Ser. Amphenol 9路 电缆安装 直向 连接器 插座 , 公触点
MB1RJN0600
amphenol-sine systems
Conn Circular SKT 6 POS RA Panel Mount 6 Terminal 1 Port CONN RCPT 6POS MALE R/A 6 Pole Female Right Angle Panel Mount Industrial & Automation Circular Connector with Female Contacts RECEPT, R/A, PANEL, M23-B, 6WAY, PIN QRATE Amphenol 6路 面板安装 直角 连接器 插座 , 母触点
MB1RJN0800
amphenol-sine systems
Conn Circular PIN/SKT 8 POS RA Panel Mount 8 Terminal 1 Port CONN RCPT 8POS MALE R/A 8 Pole Female Right Angle Panel Mount Industrial & Automation Circular Connector with Male to Female Contacts RECEPT, R/A, PANEL, M23-B, 8WAY, PIN Amphenol 8路 面板安装 直角 连接器 插座 , 公-母触点
SC000014
amphenol-sine systems
Contact SKT Crimp ST Cable Mount CONTACT SKT CRIMP 14AWG AU 2.0MM M23 B Series Female Circular Connector Contact, Crimp Circular Metric Connectors RockSolid 2.0mm Socket Contact CRIMP SOCKET, ROCKSOLID, 2MM Contact; Socket; RockSolid; Crimp; 2.0 mm Dia.; M23; B Ser. Socket contact, machined, Size 2 mm, RockSolid PU=500 ST, SC000014, Amphenol Amphenol M23 B 系列 母 压接端接 圆形 连接器 触芯, 使用于M23 连接器

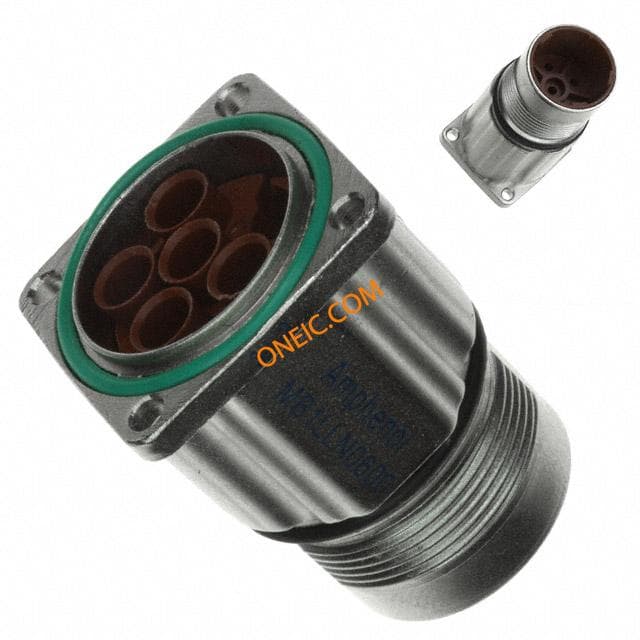

MB1LLN0600
