点击放大查看

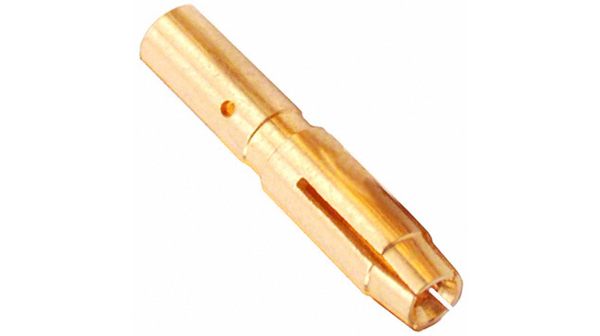

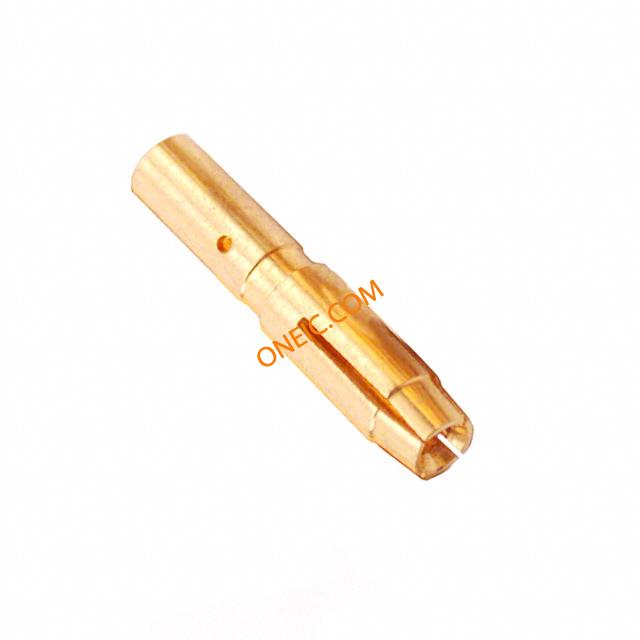

SC000045
| 制造商 | |
| 描述 | Contact SKT Crimp ST Cable Mount CONTACT SKT CRIMP 14AWG AU 2.0MM M23 B Series Female Circular Connector Contact, Crimp Circular Metric Connectors Socket Contact Slit Machined 2.0mm CRIMP SOCKET, SLIT MACHINED, 2MM Contact; Socket; Split Machined; Crimp; 2.0 mm Dia.; M23; B Ser. Socket contact, machined, Size 2 mm, SC000045, Amphenol Amphenol M23 B 系列 母 压接端接 圆形 连接器 触芯, 使用于M23 连接器 |
| 分类 |
商业参数
| 其他名称 | 889-1121 | 零件号别名 | 14R7600 |
| 产品类别 | Circular Metric Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | ||
电气参数
| 测试电压 | 6000V | 额定电压 | 630V |
| 短路电流 | 28A/30A | ||
机械参数
| 尺寸 | 2.0mm | 重量 | 0.00113 |
| 材料（通用） | Zinc Die-Cast | 包装方式 | Bulk |
| 导线线规 | 14 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 安装类型 | Cable Mount |
| 插针或插孔 | Socket | 连接器类型 | Connector Circular |
| 接触镀层 | Gold | 触头材料 | Brass |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 接触件端接 | Crimp | 接触镀层厚度 | 10µin (0.25µm) |
| 线规或范围 - AWG | :14AWG | ||
产品信息
| 类型 | Machined | 连接器性别 | SKT |
| 系列 | M23 B | 产品子类型 | Contacts |
| 适用产品/相关产品 | :M23 and M40 Series Circular Connectors | ||
环境参数
| 工作温度 | +130°C | ||
文档与媒体
相关型号
AF8
amphenol
AF8 CRIMP TOOL, 12-26 AWG
AFM8
amphenol
TOOL CRIMP TOOL, 20-32 AWG
MB1CKN0600
amphenol-sine systems
Conn Circular SKT 6 POS ST Cable Mount 6 Terminal 1 Port CONN PLUG 6POS FEMALE STR SHORT 6 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Circular Metric Connectors M23 B-Series St Plug 6 Position PLUG, M23-B, 6WAY, SKT Conn; Circ; Plug; Female; 6 Pos; HC Crimp; Short Housing; M23; B Ser. Amphenol 6路 电缆安装 直向 连接器 插头 , 母触点
MB1CKN0900
amphenol-sine systems
Conn Circular PIN 9 POS ST Cable Mount 9 Terminal 1 Port CONN PLUG 9POS FEMALE STR SHORT 9 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Circular Metric Connectors M23 B-Series St Plug 9 Position PLUG, M23-B, 9WAY, SKT Conn; Circ; Plug; Female; 9 Pos; HC Crimp; Short Housing; M23; B Ser. Amphenol 9路 电缆安装 直向 连接器 插头 , 公触点
SC000040
amphenol-sine systems
Contact PIN Crimp ST Cable Mount CONTACT PIN CRIMP 14AWG AU 2.0MM M23 B Series Male Circular Connector Contact, Crimp Circular Metric Connectors RockSolid 2.0mm Pin Contact CRIMP PIN, MACHINED, 2MM Contact; Pin; Crimp; 2.0 mm Dia; M40; CSer. Contact;Pin;Crimp;2.0mmDia;M40;CSer. Amphenol M23 B 系列 公 压接端接 圆形 连接器 触芯, 使用于M23 连接器
MB1EJN0600
amphenol-sine systems
Conn Circular SKT 6 POS RA Cable Mount 6 Terminal 1 Port CONN PLUG 6POS FEMALE R/A Circular Metric Connectors M23 B-Series Plug 6 Pos R/A Rotatable PLUG, R/A, M23-B, 6WAY, SKT

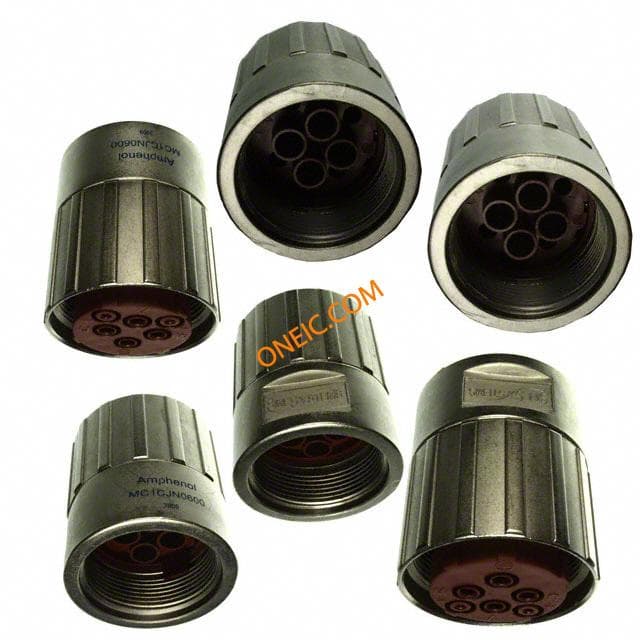

MC1CJN0600
amphenol-sine systems
Conn Circular SKT 6 POS ST Cable Mount 6 Terminal 1 Port CONN PLUG 6POS FEMALE STR 6 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Circular Metric Connectors M40 C Straight Plug 6 Position PLUG, M40-C, 6WAY, SKT Conn; Circ; Plug; Female; 6 Pos; HC Crimp; M40; C Ser. Amphenol 6路 电缆安装 直向 连接器 插头 , 母触点

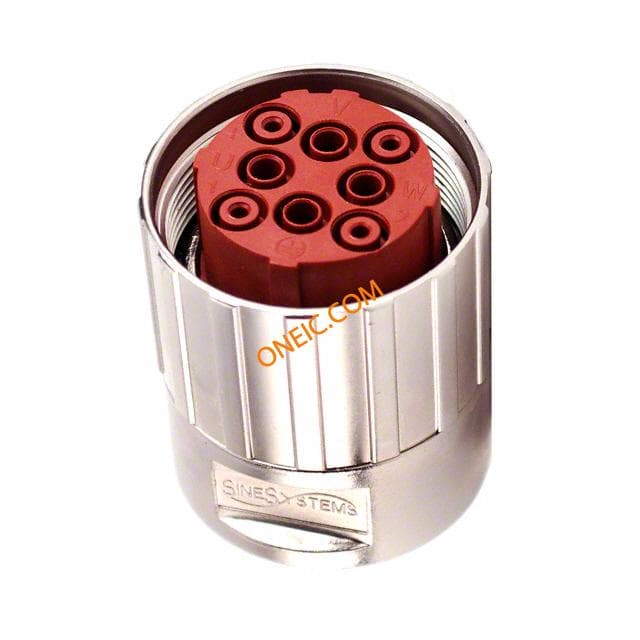

MC1CJN0800
