点击放大查看

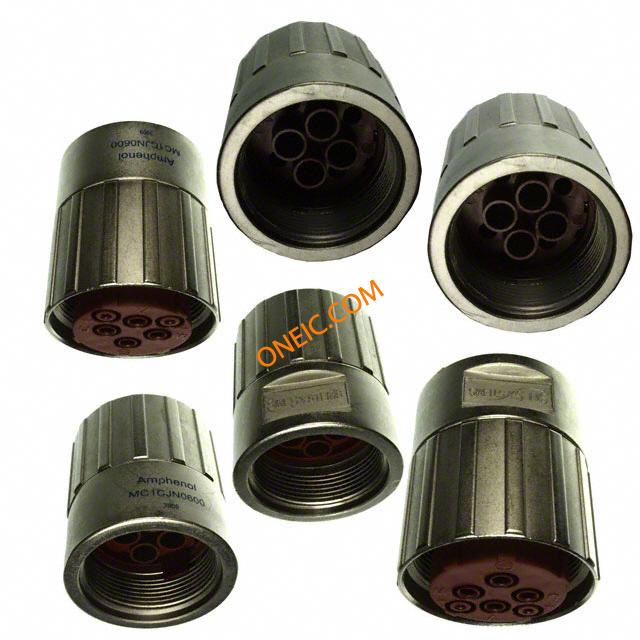

MC1CJN0600
| 制造商 | |
| 描述 | Conn Circular SKT 6 POS ST Cable Mount 6 Terminal 1 Port CONN PLUG 6POS FEMALE STR 6 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Circular Metric Connectors M40 C Straight Plug 6 Position PLUG, M40-C, 6WAY, SKT Conn; Circ; Plug; Female; 6 Pos; HC Crimp; M40; C Ser. Amphenol 6路 电缆安装 直向 连接器 插头 , 母触点 |
| 分类 |
商业参数
| 其他名称 | 889-1122 | 零件号别名 | 14R7041 |
| 产品类别 | Circular Metric Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 抗辐射加固 | No |
电气参数
| 额定电压 | 630 V ac/dc | 最大额定电流 | 75A |
机械参数
| 重量 | 0.203 | 直径 | 45.5 |
| 包装方式 | Bulk | 出线方向 | No |
| 方向 | Keyed | 外壳样式 | Plug |
| 触点形式 | 6Signal | 触点尺寸 | 2.0mm, 3.6mm |
| 触头类型 | 6Signal | 安装类型 | Cable Mount |
| 连接器类型 | Plug for Female Contacts | 接触镀层 | Gold |
| 紧固类型 | Threaded | 安装样式 | Cable |
| 插入角度 | :- | 本体材料 | :Zinc |
| 触头材料 | Brass | 端接样式 | Crimp |
| 第一触头极性 | SKT | 触点数 | 6 |
| 位数 | 6 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Zinc Die Cast | 第一连接器安装类型 | :Cable |
产品信息
| 备注 | Contacts Not Provided | 类型 | Circular |
| 连接器性别 | PL | 系列 | M40 |
| 产品特性 | Shielded | 产品子类型 | Connectors |
环境参数
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | +130°C |
文档与媒体
相关型号

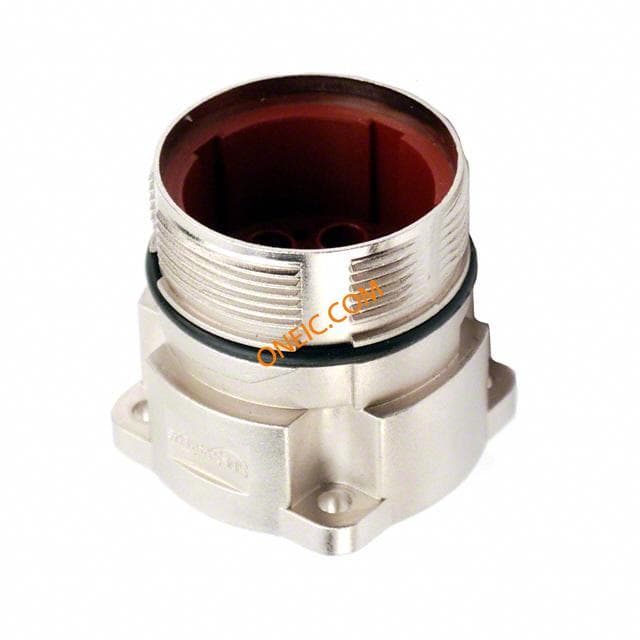

MC1LKN0600
amphenol-sine systems
Conn Circular PIN/SKT 6 POS ST Panel Mount 6 Terminal 1 Port CONN RCPT 6POS MALE STR SHORT 6 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Male to Female Contacts Circular Metric Connectors M40 C Straight Recpt 6 Position RECEPTACLE, M40-C, 6WAY, PIN Conn; Circ; Recept; Male; 6 Pos; Crimp; Short; Straight; M40; C Ser. Amphenol 6路 面板安装 直向 连接器 插座 , 公-母触点
MC1NJN0600
amphenol-sine systems
Conn Circular RCP 6 POS Solder RA Thru-Hole 6 Terminal 1 Port CONN RCPT 6POS MALE R/A 6 Pole Female Right Angle Through Hole Industrial & Automation Circular Connector with Female Contacts Circular Metric Connectors M40 Fixed R/A Recpt 6 Position RECEPT, R/A, FIXED, M40-C, 6WAY, PIN FIXED 90 DEGREE RECEPTACLE, 6 POSITION, M40 CIRCULAR CONNECTOR QRATE Amphenol 6路 通孔 直角 连接器 插座 , 母触点

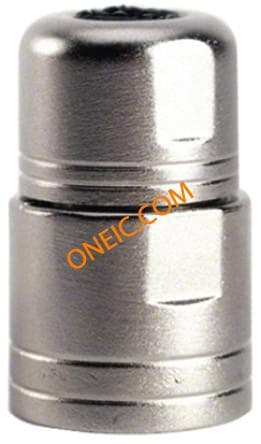

MC3CG-S3
amphenol-sine systems
Connector Accessories Grip Core Zinc Die Cast CORD GRIP 17-21.5MM DIAM C grip core,Crimp cable Dia.14.5~17mm Circular Metric Connectors M40 C Grip Core Crimp Dia. 17-21.5mm CORD GRIP, M40-C, DIA. 14.5-17MM Cord Grip Core; Crimp; Cable Dia; 14.5-17 mm; M40; C Ser. CordGripCore;Crimp;CableDia;14.5-17mm;M40;CSer.
MC3CG-S4
amphenol-sine systems
Connector Accessories Grip Core Zinc Die Cast CORD GRIP 21.5-26MM DIAM C grip core,Crimp cable Dia.14.5~20.5mm Circular Metric Connectors M40 C Grip Core Crimp Dia. 21.5-26mm CORD GRIP, M40-C, DIA. 17-19.5MM Amphenol 电缆固定头 , -20°C至+130°C, M36螺纹
MC3CG-S5
amphenol-sine systems
Connector Accessories Cord Grip Zinc Die Cast Circular Metric Connectors C GRIP CORE CRIMP CABLE DIA 19 21.5MM CORD GRIP 19-21.5MM DIAM C grip core,Crimp cable Dia.20.5~26mm CORD GRIP, M40-C, DIA. 19.5-21.5MM Amphenol 电缆固定头 , -20°C至+130°C, M40螺纹
SC000014
amphenol-sine systems
Contact SKT Crimp ST Cable Mount CONTACT SKT CRIMP 14AWG AU 2.0MM M23 B Series Female Circular Connector Contact, Crimp Circular Metric Connectors RockSolid 2.0mm Socket Contact CRIMP SOCKET, ROCKSOLID, 2MM Contact; Socket; RockSolid; Crimp; 2.0 mm Dia.; M23; B Ser. Socket contact, machined, Size 2 mm, RockSolid PU=500 ST, SC000014, Amphenol Amphenol M23 B 系列 母 压接端接 圆形 连接器 触芯, 使用于M23 连接器
SC000046
amphenol-sine systems
Contact SKT Crimp ST Cable Mount CONTACT SKT CRIMP 8AWG AU 3.6MM M23 B Series Female Circular Connector Contact, Crimp Circular Metric Connectors Socket Contact Slit Machined 3.6mm CRIMP SKT, MACHINED, 3.6MM Contact; Socket; Split Machined; Crimp; 3.6 mm Dia; M40; C Ser. Contact;Socket;SplitMachined;Crimp;3.6mmDia;M40;CSer. Amphenol M23 B 系列 母 压接端接 圆形 连接器 触芯, 使用于M23 连接器
MC3CG-S2
amphenol-sine systems
Connector Accessories Grip Core Zinc Die Cast Circular Metric Connectors M40 C Grip Core Crimp Dia. 15-17mm CORD GRIP 15-17MM DIAM C grip core,Crimp cable Dia.11~14.5mm CORD GRIP, M40-C, DIA. 12.5-14.5MM Cord Grip Core; Crimp; Cable Dia; 12.5-14.5 mm; M40; C Ser. CordGripCore;Crimp;CableDia;12.5-14.5mm;M40;CSer. Amphenol MotionGrade 系列 IP67 灰色 电缆固定头 , 11mm 至 15mm电缆直径, -20°C至+130°C, M23螺纹
MC4FSR-C18.5
amphenol-sine systems
Connector Accessories Flex Grip Zinc Die Cast BOOT STRAIN RELIEF 18.5MM DIAM Flexible Strain Relief,Exit Dia.18.5mm Circular Metric Connectors M40 C-Series Exit Dia. 18.5mm Felxgrip CIRCULAR STRAIN RELIEF, ZINC Amphenol MotionGrade 系列 IP67 灰色 电缆固定头 , 17.5mm 至 19mm电缆直径, -20°C至+130°C, M40螺纹

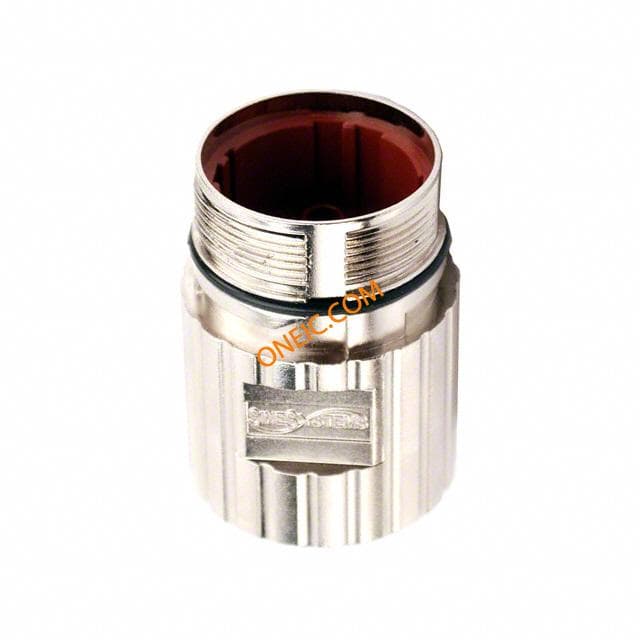

MC1JJN0600
amphenol-sine systems
Conn Circular SKT 6 POS ST Cable Mount 6 Terminal 1 Port CONN RCPT 6POS MALE STR 6 Pole Female Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Circular Metric Connectors M40 C Straight 6 Position Extension EXTENSION PLUG, M40-C, 6WAY, PIN Conn; Circ; Plug; Male; Extension; 6 Pos; Crimp; M40; C Ser. Amphenol 6路 电缆安装 直向 连接器 插座 , 母触点

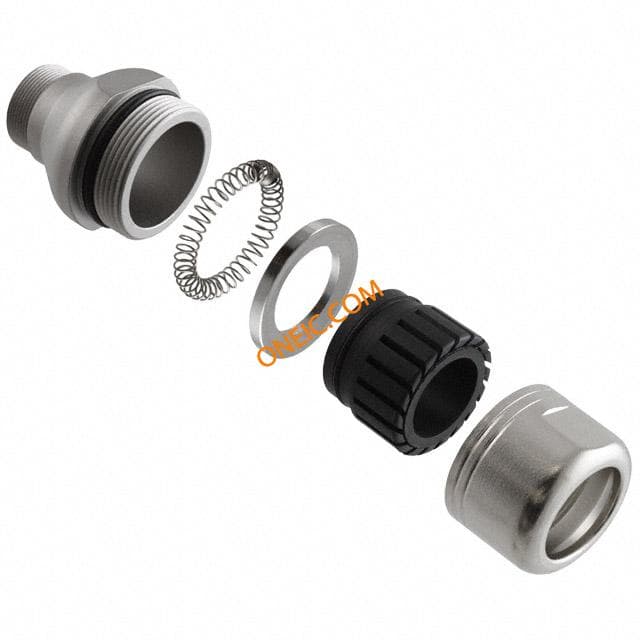

MC3CG-S1
amphenol-sine systems
Connector Accessories Grip Core Zinc Die Cast CORD GRIP 10.5-15MM DIAM C grip core,Crimp cable Dia. 7.5~11mm Circular Metric Connectors M40 C Grip Core Crimp Dia. 10.5-15mm CORD GRIP, M40-C, DIA. 9-12.5MM Cord Grip Core; Crimp; Cable Dia; 9-12.5 mm; M40; C Ser. Amphenol 电缆固定头 , -20°C至+130°C, M23螺纹

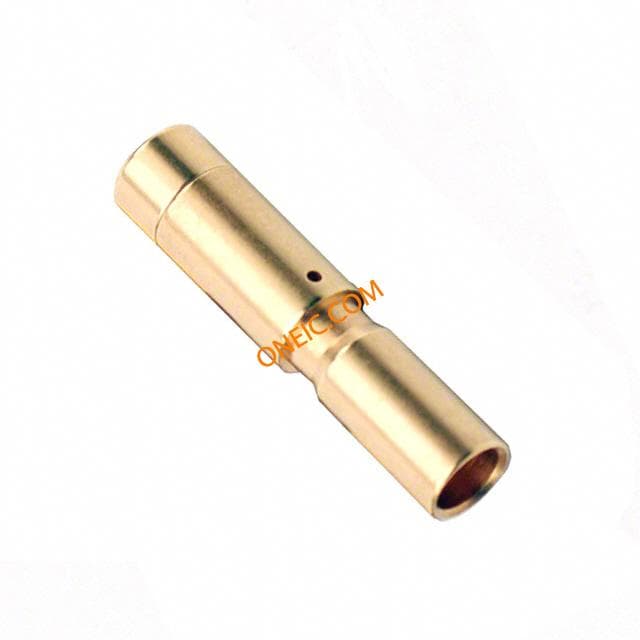

SC000039
