点击放大查看

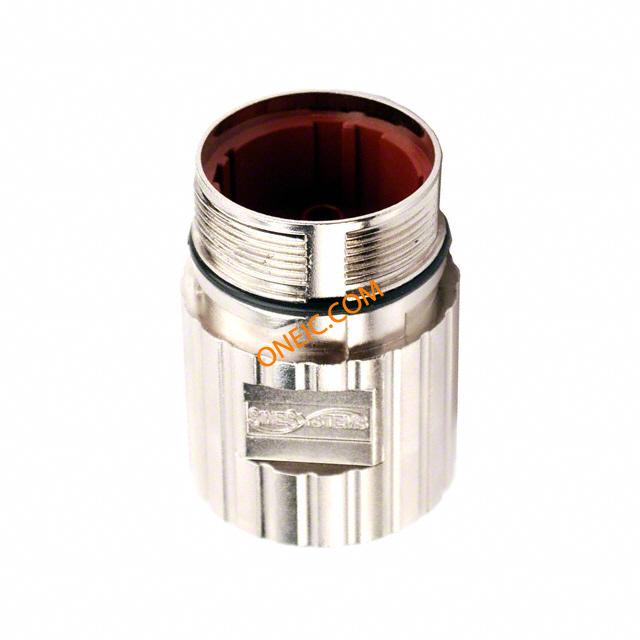

MC1JJN0600
| 制造商 | |
| 描述 | Conn Circular SKT 6 POS ST Cable Mount 6 Terminal 1 Port CONN RCPT 6POS MALE STR 6 Pole Female Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Circular Metric Connectors M40 C Straight 6 Position Extension EXTENSION PLUG, M40-C, 6WAY, PIN Conn; Circ; Plug; Male; Extension; 6 Pos; Crimp; M40; C Ser. Amphenol 6路 电缆安装 直向 连接器 插座 , 母触点 |
| 分类 |
商业参数
| 其他名称 | 889-1124 | 零件号别名 | 14R7043 |
| 产品类别 | Circular Metric Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | 630 V ac/dc | 最大额定电流 | 75A |
机械参数
| 重量 | 0.2075 | 直径 | 45 |
| 包装方式 | Bulk | 出线方向 | No |
| 方向 | Keyed | 外壳样式 | Plug |
| 触点尺寸 | 2.0mm, 3.6mm | 触头类型 | 6Signal |
| 安装类型 | Cable Mount | 连接器类型 | Receptacle for Male Contacts |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 安装样式 | Cable | 插入角度 | :- |
| 本体材料 | :Zinc | 触头材料 | Brass |
| 总长度 | 62 | 端接样式 | Crimp |
| 第一触头极性 | SKT | 触点数 | 6 |
| 位数 | 6 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Zinc Die Cast | 第一连接器安装类型 | :Cable |
产品信息
| 备注 | Contacts Not Provided | 类型 | Circular |
| 连接器性别 | RCP | 系列 | M40 |
| 产品特性 | Shielded | 产品子类型 | Connectors |
环境参数
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | +130°C |
