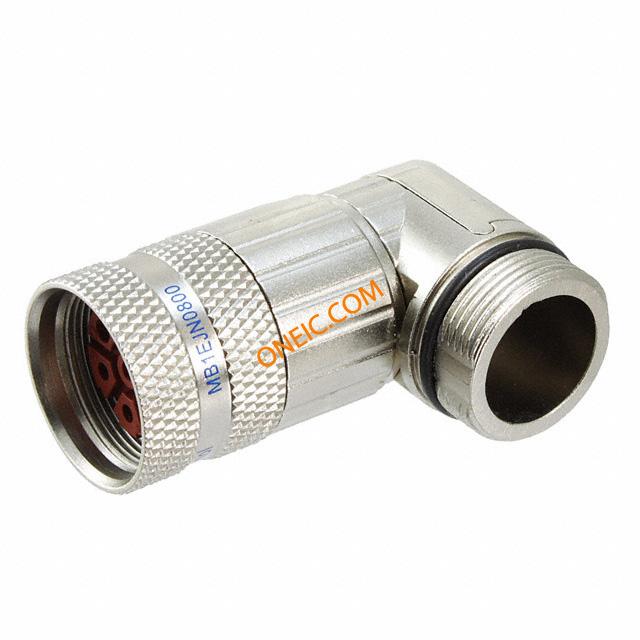

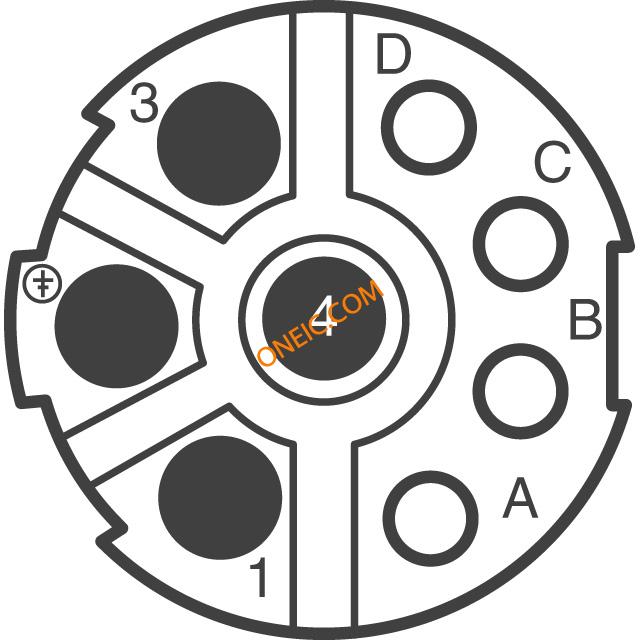

MB1EJN0800
| 制造商 | |
| 描述 | Conn Circular PIN/SKT 8 POS RA Cable Mount 8 Terminal 1 Port CONN PLUG 8POS FEMALE R/A 8 Pole Male Right Angle Cable Mount Industrial & Automation Circular Connector with Male to Female Contacts Circular Metric Connectors M23 B-Series Plug 8 Pos R/A Rotatable PLUG, R/A, M23-B, 8WAY, SKT Plug, female, 8way, HC Crimp, Angle Amphenol 8路 电缆安装 直角 连接器 插头 , 公-母触点 |
| 分类 |
商业参数
| 其他名称 | 889-1089 | 零件号别名 | 14R7023 |
| 产品类别 | Circular Metric Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 抗辐射加固 | No |
电气参数
| 额定电压 | 630 V ac/dc | 最大额定电流 | 30A |
机械参数
| 重量 | 0.1058 | 直径 | 27 mm |
| 包装方式 | Bulk | 出线方向 | No |
| 方向 | Keyed | 外壳样式 | Plug |
| 触点形式 | 8Signal | 触点尺寸 | 1.0mm, 2.0mm |
| 触头类型 | 8Signal | 安装类型 | Cable Mount |
| 连接器类型 | Plug for Female Contacts | 接触镀层 | Gold |
| 紧固类型 | Threaded | 安装样式 | Cable |
| 插入角度 | :- | 本体材料 | :Zinc |
| 触头材料 | Brass | 总长度 | 60.6 mm |
| 端接样式 | Crimp | 第一触头极性 | PIN/SKT |
| 触点数 | 8 | 位数 | 8 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Zinc Die Cast |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Circular |
| 连接器性别 | PL | 系列 | M23 |
| 产品特性 | Shielded | 产品子类型 | Connectors |
环境参数
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | +130°C |
文档与媒体
相关型号
MB1RJN0800
amphenol-sine systems
Conn Circular PIN/SKT 8 POS RA Panel Mount 8 Terminal 1 Port CONN RCPT 8POS MALE R/A 8 Pole Female Right Angle Panel Mount Industrial & Automation Circular Connector with Male to Female Contacts RECEPT, R/A, PANEL, M23-B, 8WAY, PIN Amphenol 8路 面板安装 直角 连接器 插座 , 公-母触点
MB3CG-S1
amphenol-sine systems
Connector Accessories Cord Grip Zinc Die Cast CORD GRIP 7.5-10.5MM DIAM Cord Grip, Cable Range 7.5 ~ 11mm Circular Metric Connectors M23 B Cord Grip IP67 Cable 7.5-10.5mm CORD GRIP, M23-B, DIA. 7.5-11.0MM Cord Grip; Cable Dia. 7.5-11 mm; M23; BSer. Amphenol MotionGrade 系列 IP67 灰色 电缆固定头 , 7.5mm 至 11mm电缆直径, -20°C至+130°C, M23螺纹
MB3CG-S2
amphenol-sine systems
Connector Accessories Cord Grip Zinc Die Cast CORD GRIP 10.5-15MM DIAM Cord Grip, Cable Range 11 ~ 14.5mm Circular Metric Connectors M23 B Cord Grip IP67 Cable 10.5-15mm CORD GRIP, M23-B, DIA. 11.0-14.5MM Cord Grip; Cable Dia. 11-14.5 mm; M23; B. Ser. Amphenol MotionGrade 系列 IP67 灰色 电缆固定头 , 11mm 至 15mm电缆直径, -20°C至+130°C, M23螺纹
MB4FSR-B14.5
amphenol-sine systems
Connector Accessories Flex Grip Zinc Die Cast BOOT STRAIN RELIEF 14.5MM DIAM Flexible Strain Relief, Exit Dia. ~14mm Circular Metric Connectors M23 B Flexgrip Exit Dia. 14.5mm QRATE Amphenol 电缆固定头 , -20°C至+130°C, M23螺纹
MB4FSR-B17
amphenol-sine systems
Connector Accessories Flex Grip Zinc Die Cast BOOT STRAIN RELIEF 17MM DIAM Flexible Strain Relief, Exit Dia. ~17mm Circular Metric Connectors M23 B Flexgrip Exit Dia. 17mm QRATE Amphenol 电缆固定头 , -20°C至+130°C, M23螺纹
SC000014
amphenol-sine systems
Contact SKT Crimp ST Cable Mount CONTACT SKT CRIMP 14AWG AU 2.0MM M23 B Series Female Circular Connector Contact, Crimp Circular Metric Connectors RockSolid 2.0mm Socket Contact CRIMP SOCKET, ROCKSOLID, 2MM Contact; Socket; RockSolid; Crimp; 2.0 mm Dia.; M23; B Ser. Socket contact, machined, Size 2 mm, RockSolid PU=500 ST, SC000014, Amphenol Amphenol M23 B 系列 母 压接端接 圆形 连接器 触芯, 使用于M23 连接器
MB4FSR-B10.3
amphenol-sine systems
Connector Accessories Flex Grip Zinc Die Cast BOOT STRAIN RELIEF 10.3MM DIAM Flexible Strain Relief,Exit Dia.~10.3mm Circular Metric Connectors M23 B Flexgrip Exit Dia. 10.3mm Amphenol 电缆固定头 , -20°C至+130°C, M23螺纹
MB3CG-S3
amphenol-sine systems
Connector Accessories Cord Grip Zinc Die Cast CORD GRIP 15-17MM DIAM Cord Grip, Cable Range 14.5 ~ 17mm Circular Metric Connectors M23 B Cord Grip IP67 Cable 15-17mm CORD GRIP, M23-B, DIA. 14.5-17.0MM Cord Grip; Cable Dia. 14.5-17 mm; M23; B Ser. Amphenol 电缆固定头 , -20°C至+130°C, M23螺纹
MB1JJN0800
amphenol-sine systems
Conn Circular PIN/SKT 8 POS ST Cable Mount 8 Terminal 1 Port CONN RCPT 8POS MALE STR 8 Pole Female Straight Cable Mount Industrial & Automation Circular Connector with Male to Female Contacts Circular Metric Connectors M23 B-Series Strt Extension 8 Pos. EXTENSION PLUG, M23-B, 8WAY, PIN Conn; Circ; Plug; Male; Extension; 8 Pos; Crimp; M23; B Ser. Amphenol 8路 电缆安装 直向 连接器 插座 , 公-母触点
SC000013
amphenol-sine systems
Contact SKT Crimp ST Cable Mount CONTACT SKT CRIMP 18AWG AU 1.0MM M23 A Series Female Circular Connector Contact, Crimp Circular Metric Connectors Socket Contact Rock Solid 1.0mm CRIMP SOCKET, ROCKSOLID, 1MM Contact; Socket; Crimp; 1.0 mm Dia.; RockSolid; M23; A, B Ser. Socket contact, machined Size 1 mm, RockSolid, SC000013, Amphenol Amphenol M23 A 系列 母 压接端接 圆形 连接器 触芯, 使用于M23 连接器
SC000044
amphenol-sine systems
Contact SKT Crimp ST Cable Mount CONTACT SKT CRIMP 18AWG AU 1.0MM M23 A Series Female Circular Connector Contact, Crimp Circular Metric Connectors Skt Contact 1.0mm RockSolid Machined CRIMP SOCKET, SLIT MACHINED, 1MM Contact; Socket; Split Machined, ; Crimp; 1.0 mm Dia.; M23; A, B Ser. Socket contact, machined Size 1 mm, SC000044, Amphenol Amphenol M23 A 系列 母 压接端接 圆形 连接器 触芯, 使用于M23 连接器
SC000045
amphenol-sine systems
Contact SKT Crimp ST Cable Mount CONTACT SKT CRIMP 14AWG AU 2.0MM M23 B Series Female Circular Connector Contact, Crimp Circular Metric Connectors Socket Contact Slit Machined 2.0mm CRIMP SOCKET, SLIT MACHINED, 2MM Contact; Socket; Split Machined; Crimp; 2.0 mm Dia.; M23; B Ser. Socket contact, machined, Size 2 mm, SC000045, Amphenol Amphenol M23 B 系列 母 压接端接 圆形 连接器 触芯, 使用于M23 连接器
MB4FSR-B12.5
amphenol-sine systems
Connector Accessories Flex Grip Zinc Die Cast BOOT STRAIN RELIEF 12.5MM DIAM Flexible Strain Relief, Exit Dia. ~12mm Circular Metric Connectors M23 B Flexgrip Exit Dia. 12.5mm CIRCULAR STRAIN RELIEF, ZINC Amphenol MotionGrade 系列 IP67 灰色 电缆固定头 , 11.5mm 至 13mm电缆直径, -20°C至+130°C, M23螺纹
MB1LLN0800
amphenol-sine systems
Conn Circular PIN 8 POS ST Panel Mount 8 Terminal 1 Port CONN RCPT 8POS MALE STR LONG 8 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Circular Metric Connectors M23 B-Series Strt Recpt 8 Position RECEPT, PANEL, M23-B, 8WAY, PIN Conn; Circ; Receptacle; Male; 8 Pos; Crimp; Long Straight; M23; A Ser. Amphenol 8路 面板安装 直向 连接器 插座 , 公触点
MB1LLN0800-KIT
Amphenol Sine Systems Corp

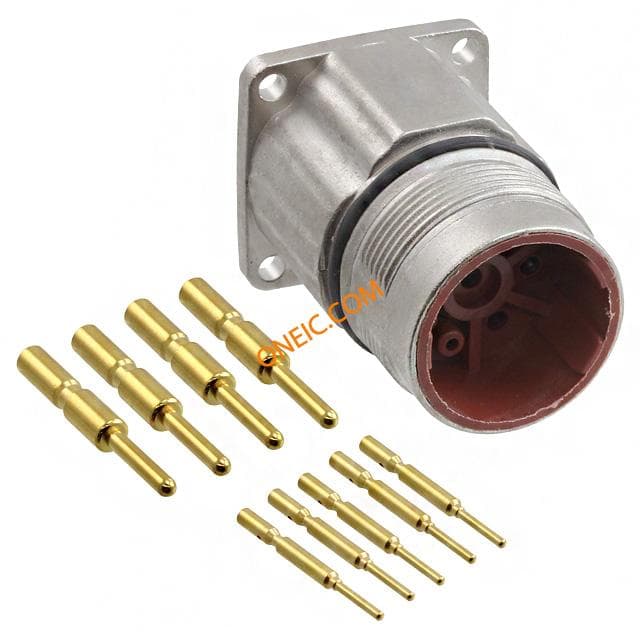

CONN RCPT 8POS MALE STR KIT Circular Metric Connectors Receptacle male 8 pos Crimp
