点击放大查看

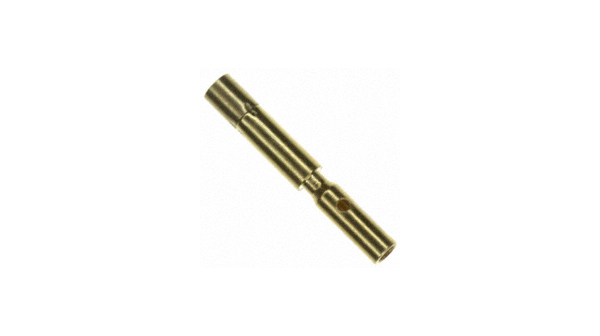

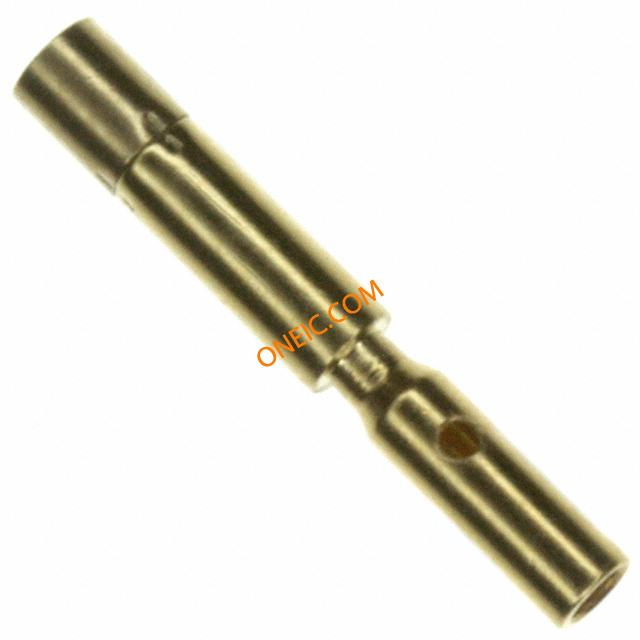

SC000013
| 制造商 | |
| 描述 | Contact SKT Crimp ST Cable Mount CONTACT SKT CRIMP 18AWG AU 1.0MM M23 A Series Female Circular Connector Contact, Crimp Circular Metric Connectors Socket Contact Rock Solid 1.0mm CRIMP SOCKET, ROCKSOLID, 1MM Contact; Socket; Crimp; 1.0 mm Dia.; RockSolid; M23; A, B Ser. Socket contact, machined Size 1 mm, RockSolid, SC000013, Amphenol Amphenol M23 A 系列 母 压接端接 圆形 连接器 触芯, 使用于M23 连接器 |
| 分类 |
商业参数
| 其他名称 | 889-1116 | 零件号别名 | 14R7592 |
| 产品类别 | Circular Metric Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 测试电压 | 2500V | 额定电压 | 125V/160V |
| 短路电流 | 9A/10A | ||
机械参数
| 尺寸 | 1.0mm | 重量 | 0.00043 |
| 包装方式 | Bulk | 导线线规 | 18 AWG |
| 端接方式 | Crimp | 安装类型 | Cable Mount |
| 插针或插孔 | Socket | 连接器类型 | Connector Circular |
| 接触镀层 | Gold | 触头材料 | Brass |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 接触件端接 | Crimp | 线规或范围 - AWG | :18AWG |
产品信息
| 类型 | Machined | 连接器性别 | SKT |
| 系列 | M23 A | 产品子类型 | Contacts |
| 适用产品/相关产品 | :M23 Series Circular Connectors | ||
环境参数
| 工作温度 | +130°C | ||
文档与媒体
