点击放大查看

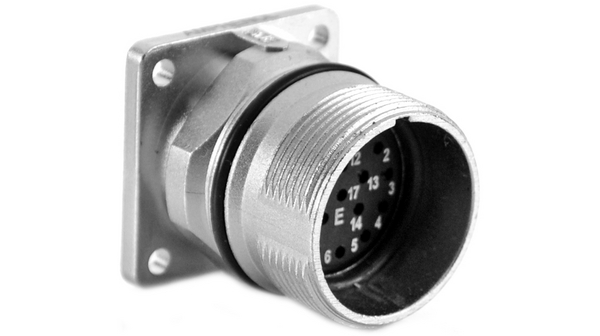

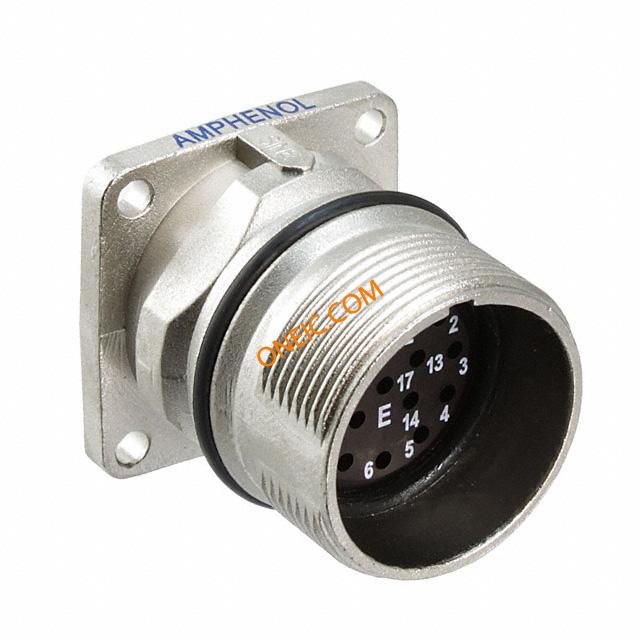

MA1LAE1700
| 制造商 | |
| 描述 | Conn Circular PIN 17 POS ST Panel Mount 17 Terminal 1 Port CONN RCPT 17POS MALE TYPE E STR 17 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Circular Metric Connectors M23 A-Series 17 Pos. St Recpt E Type RECEPT, PANEL, M23-A, TYPE E, 17WAY Conn; Circ; Receptacle; E Type; CW; Male; 17 Pos; Straight; M23; A Ser. Straight Receptacle Type 17E 17, MA1LAE1700, Amphenol Amphenol 17路 面板安装 直向 连接器 插座 , 公触点 |
| 分类 |
商业参数
| 其他名称 | 889-1081 | 零件号别名 | 14R7006 AEGA034 |
| 产品类别 | Circular Metric Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | ||
电气参数
| 测试电压 | 2500V | 额定电压 | 125 V ac/dc |
| 最大额定电流 | 9 A | 短路电流 | 9A |
机械参数
| 深度 | 25.6 | 高度 | 25.6 |
| 重量 | 0.0303 | 材料（通用） | Zinc Die-Cast |
| 包装方式 | Bulk | 出线方向 | No |
| 方向 | E | 外壳样式 | Receptacle |
| 触点尺寸 | 1.0mm | 触头类型 | 17Signal |
| 安装类型 | Panel Mount | 连接器类型 | Receptacle for Male or Female Contacts |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 安装样式 | Cable | 插入角度 | :- |
| 本体材料 | :Zinc | 触头材料 | Brass |
| 总长度 | 27.5 | 端接样式 | Pin |
| 第一触头极性 | PIN | 触点数 | 17 |
| 位数 | 17 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Zinc Die Cast | 第一连接器安装类型 | :Panel |
产品信息
| 备注 | Contacts Not Provided | 类型 | Circular |
| 连接器性别 | RCP | 系列 | M23 |
| 产品特性 | Shielded | 制造商全称 | A Series |
| 产品子类型 | Connectors | ||
环境参数
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | +130°C |
文档与媒体
