点击放大查看

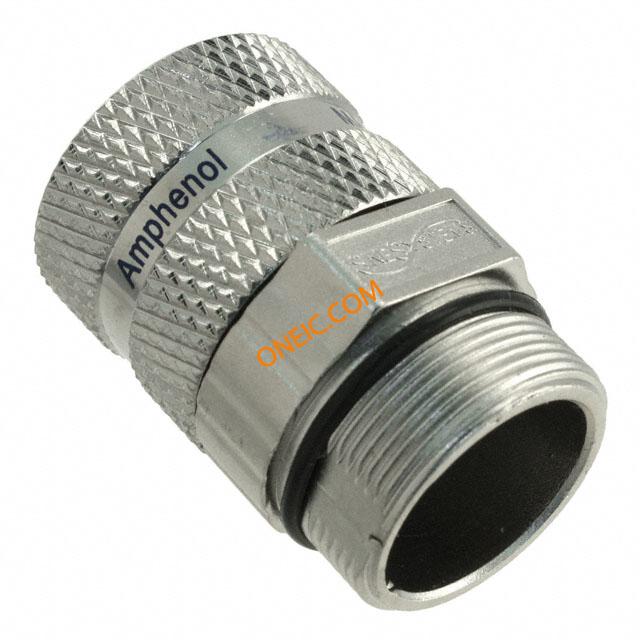

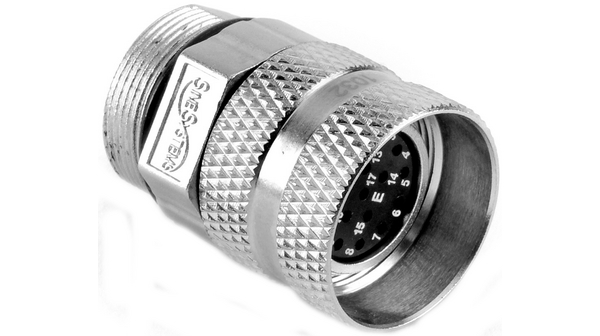

MA1CAE1700
| 制造商 | |
| 描述 | Conn Circular PIN 17 POS ST Cable Mount 17 Terminal 1 Port CONN PLUG 17POS FMALE TYPE E STR 17 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Circular Metric Connectors M23 A-Series St Plug 17 Position E Type PLUG, M23-A, TYPE E, 17WAY Conn; Circ; Plug; E Type; CW; Female; 17 Pos, ; Straight; M23; A Ser. Straight Plug Type 17E 17, MA1CAE1700, Amphenol Amphenol 17路 电缆安装 直向 连接器 插头 , 公触点 |
| 分类 |
商业参数
| 其他名称 | 889-1067 | 零件号别名 | 14R6994 ASTA034 |
| 产品类别 | Circular Metric Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 抗辐射加固 | No |
电气参数
| 测试电压 | 2500V | 额定电压 | 125 V ac/dc |
| 最大额定电流 | 9 A | 短路电流 | 9A |
机械参数
| 重量 | 0.0451 | 直径 | 25.8 mm |
| 材料（通用） | Zinc Die-Cast | 包装方式 | Bulk |

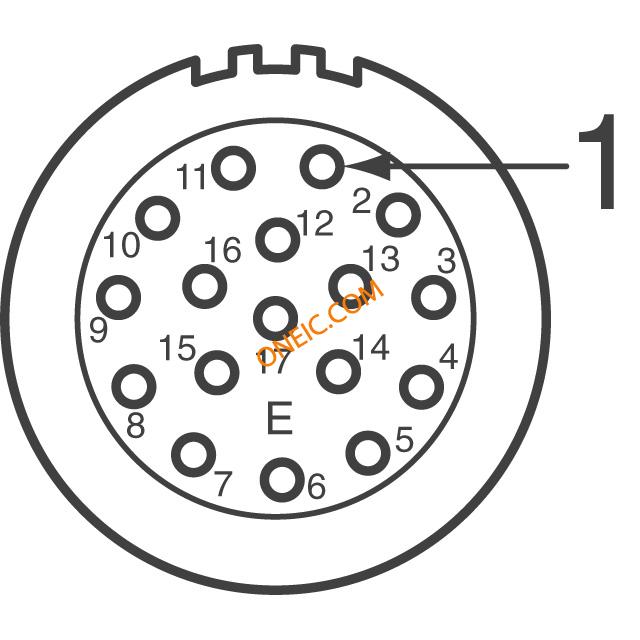

| 出线方向 | No | 方向 | E |
| 外壳样式 | Plug | 触点形式 | 17Signal |
| 触点尺寸 | 1.0mm | 触头类型 | 17Signal |
| 安装类型 | Cable Mount | 连接器类型 | Plug for Male or Female Contacts |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 安装样式 | Cable | 插入角度 | :- |
| 本体材料 | :Zinc | 触头材料 | Brass |
| 端接样式 | Pin | 第一触头极性 | PIN |
| 触点数 | 17 | 位数 | 17 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Zinc Die Cast |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Circular |
| 连接器性别 | PL | 系列 | M23 |
| 产品特性 | Shielded | 制造商全称 | A Series |
| 产品子类型 | Connectors | 射频系列/标准 | A |
环境参数
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | +130°C |
文档与媒体
相关型号
MA1RAE1700
Amphenol SINE Systems
Circular Metric Connectors M23 A Rotatable R/A Recpt 17 Pos E Type CONN RCPT 17POS MALE TYPE E R/A 17 Pole Female Right Angle Panel Mount Industrial & Automation Circular Connector with Male Contacts RECEPT, R/A,, M23-A, TYPE E, 17WAY QRATE Amphenol 17路 面板安装 直角 连接器 插座 , 公触点
MA1JAE1700
amphenol-sine systems
Conn Circular PIN 17 POS ST Cable Mount 17 Terminal 1 Port Circular Metric Connectors M23 A-Series 17 Pos. St Extension E Type CONN RCPT 17POS MALE TYPE E STR 17 Pole Female Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts EXTENSION PLUG, M23-A, TYPE E, 17WAY Conn; Circ; Plug; E Type; CW; Male; Extension; 17 Pos; M23; A Ser. Amphenol 17路 电缆安装 直向 连接器 插座 , 公触点
MA3CG-S1
amphenol-sine systems
Connector Accessories Cord Grip Zinc Die Cast CORD GRIP 4.5-10.5MM DIAM Cord Grip, crimp cable Dia.4.5~7.5mm Circular Metric Connectors M23 A Cord Grip IP67 Cable Range 4.5-10mm CORD GRIP, M23-A, DIA. 4.5-7.5MM Cord Grip; Crimp; Cable Dia. 4.5-7.5 mm; M23; A Ser. Cordgrip M23 4.5...7.5 mm, MA3CG-S1, Amphenol Amphenol MotionGrade 系列 IP67 灰色 电缆固定头 , 4.5mm 至 8mm电缆直径, -20°C至+130°C, M23螺纹
MA4FSR-A10.5
amphenol-sine systems
Connector Accessories Flex Grip Zinc Die Cast BOOT STRAIN RELIEF 10.5MM DIAM Flexible Strain Relief,Exit Dia.~10.5mm Circular Metric Connectors M23 A Flexgrip Exit Diameter 10.5mm CIRCULAR STRAIN RELIEF, ZINC Amphenol MotionGrade 系列 IP67 电缆固定头 , -20°C至+130°C, M23螺纹
MA4FSR-A8.5
amphenol-sine systems
Connector Accessories Flex Grip Zinc Die Cast BOOT STRAIN RELIEF 8.5MM DIAM Flexible Strain Relief, Exit Dia. ~8.5mm Circular Metric Connectors M23 A Flexgrip Exit Diameter 8.5mm CIRCULAR STRAIN RELIEF, ZINC QRATE Amphenol 电缆固定头 , -20°C至+130°C, M23螺纹
SC000035
amphenol-sine systems
Contact PIN Crimp ST Cable Mount CONTACT PIN CRIMP 18AWG AU 1.0MM M23 A Series Male Circular Connector Contact, Crimp Circular Metric Connectors Pin Contact Rock Solid 1.0mm CRIMP PIN, MACHINED, 1MM Contact; Pin; Crimp; 1.0 mm Dia.; M23; A, B Ser. Pin contact, machined Size 1 mm, SC000035, Amphenol Amphenol M23 A 系列 公 压接端接 圆形 连接器 触芯, 使用于M23 连接器
MA4FSR-A12.8
amphenol-sine systems
Connector Accessories Flex Grip Zinc Die Cast BOOT STRAIN RELIEF 12.8MM DIAM Flexible Strain Relief,Exit Dia.~12.8mm Circular Metric Connectors M23 A Flexgrip Exit Diameter 12-8mm CIRCULAR STRAIN RELIEF, ZINC Amphenol 电缆固定头 , -20°C至+130°C, M23螺纹
MA3CG-S3
amphenol-sine systems
Connector Accessories Cord Grip Zinc Die Cast CORD GRIP 10-12.5MM DIAM Cord Grip, crimp cable Dia.11~15mm Circular Metric Connectors CORD GRIP CRIMP CABLE DIA 10 12.5MM CORD GRIP, M23-A, DIA. 11.0-15.0MM Cord Grip; Crimp; Cable Dia; 11-15 mm; M23; A Ser. Cordgrip M23 11...15 mm, MA3CG-S3, Amphenol Amphenol MotionGrade 系列 IP67 灰色 电缆固定头 , 11mm 至 15mm电缆直径, -20°C至+130°C, M23螺纹
MA3CG-S2
amphenol-sine systems
Connector Accessories Cord Grip Zinc Die Cast CORD GRIP 10.5-15MM DIAM Cord Grip, crimp cable Dia.7.5~11mm Circular Metric Connectors M23 A Cord Grip IP67 Cable 7.5-11 mm CORD GRIP, M23-A, DIA. 7.5-11.0MM Cord Grip; Crimp; Cable Dia. 7.5-11 mm; M23; A Ser. Cordgrip M23 7.5...11 mm, MA3CG-S2, Amphenol Amphenol IP67 电缆固定头 , -20°C至+130°C, M23螺纹
SC000013
amphenol-sine systems
Contact SKT Crimp ST Cable Mount CONTACT SKT CRIMP 18AWG AU 1.0MM M23 A Series Female Circular Connector Contact, Crimp Circular Metric Connectors Socket Contact Rock Solid 1.0mm CRIMP SOCKET, ROCKSOLID, 1MM Contact; Socket; Crimp; 1.0 mm Dia.; RockSolid; M23; A, B Ser. Socket contact, machined Size 1 mm, RockSolid, SC000013, Amphenol Amphenol M23 A 系列 母 压接端接 圆形 连接器 触芯, 使用于M23 连接器
SC000044
amphenol-sine systems
Contact SKT Crimp ST Cable Mount CONTACT SKT CRIMP 18AWG AU 1.0MM M23 A Series Female Circular Connector Contact, Crimp Circular Metric Connectors Skt Contact 1.0mm RockSolid Machined CRIMP SOCKET, SLIT MACHINED, 1MM Contact; Socket; Split Machined, ; Crimp; 1.0 mm Dia.; M23; A, B Ser. Socket contact, machined Size 1 mm, SC000044, Amphenol Amphenol M23 A 系列 母 压接端接 圆形 连接器 触芯, 使用于M23 连接器
MA1LAE1700
amphenol-sine systems
Conn Circular PIN 17 POS ST Panel Mount 17 Terminal 1 Port CONN RCPT 17POS MALE TYPE E STR 17 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Circular Metric Connectors M23 A-Series 17 Pos. St Recpt E Type RECEPT, PANEL, M23-A, TYPE E, 17WAY Conn; Circ; Receptacle; E Type; CW; Male; 17 Pos; Straight; M23; A Ser. Straight Receptacle Type 17E 17, MA1LAE1700, Amphenol Amphenol 17路 面板安装 直向 连接器 插座 , 公触点

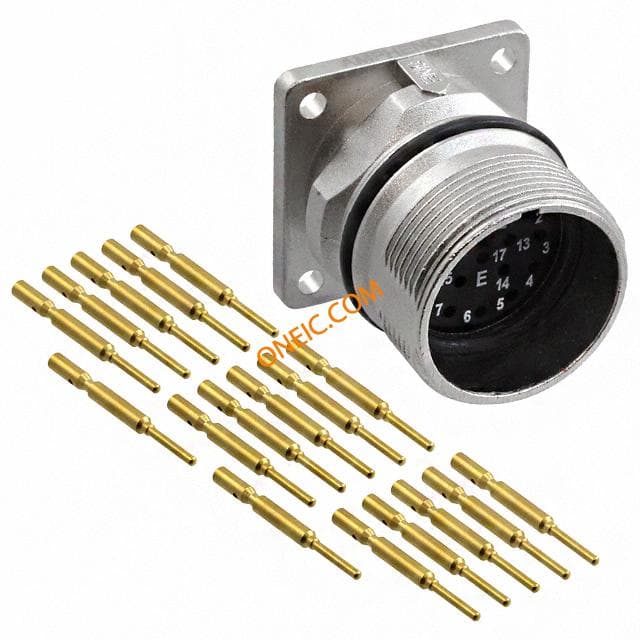

MA1LAE1700-KIT
