点击放大查看

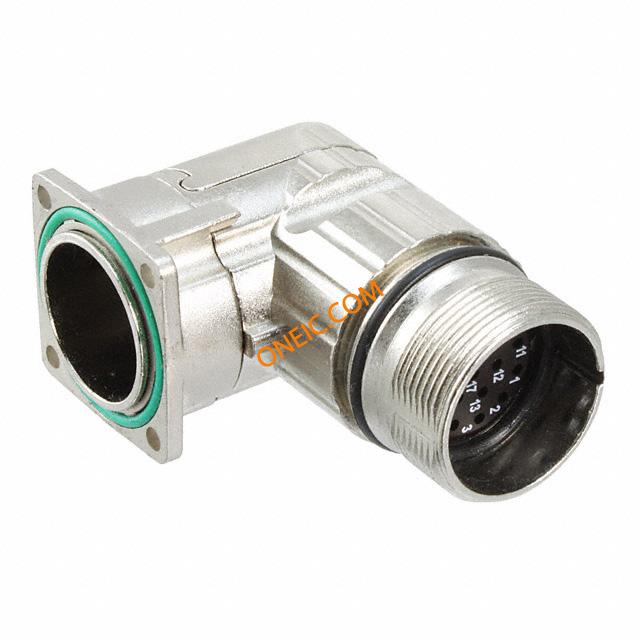

MA1RAE1700
| 制造商 | |
| 描述 | Circular Metric Connectors M23 A Rotatable R/A Recpt 17 Pos E Type CONN RCPT 17POS MALE TYPE E R/A 17 Pole Female Right Angle Panel Mount Industrial & Automation Circular Connector with Male Contacts RECEPT, R/A,, M23-A, TYPE E, 17WAY QRATE Amphenol 17路 面板安装 直角 连接器 插座 , 公触点 |
| 分类 |
商业参数
| 其他名称 | 889-1083 | 零件号别名 | 14R7010 AEDA034 |
| 产品类别 | Circular Metric Connectors | 标准包装数量 | 168 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 125 V ac/dc | 最大额定电流 | 9 A |
机械参数
| 重量 | 0.0903 | 包装方式 | Bulk |
| 方向 | E | 外壳样式 | Receptacle |
| 触点尺寸 | 1.0mm | 触头类型 | Crimp |
| 安装类型 | Panel Mount, Right Angle | 连接器类型 | Receptacle for Male or Female Contacts |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 安装样式 | Cable | 插入角度 | :- |
| 本体材料 | :Zinc | 触头材料 | Brass |
| 端接样式 | Pin | 第一触头极性 | Pin (Male) |
| 触点数 | 17 | 位数 | 17 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Zinc Die Cast |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | M23 | 产品特性 | Shielded |
| 产品子类型 | Connectors | ||
环境参数
| 机械寿命 | Obsolete | 防护等级 | IP67 - Dust Tight, Waterproof |
| 工作温度 | +130°C | ||
