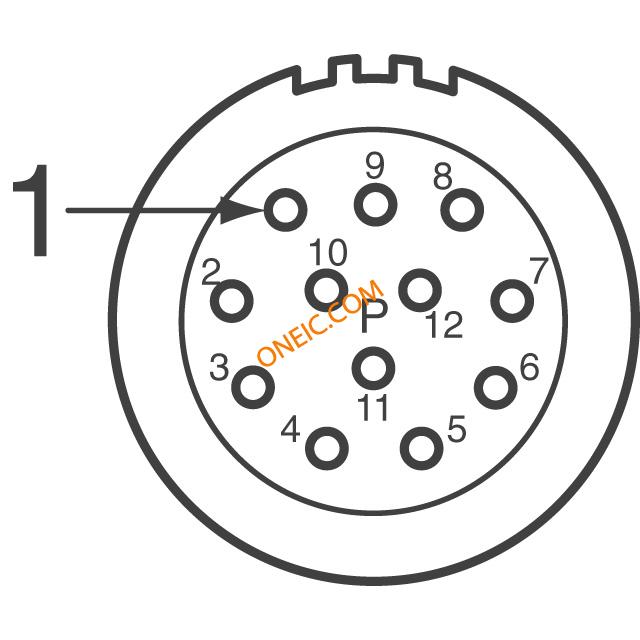

MA1EAP1200
| 制造商 | |
| 描述 | Conn Circular PIN 12 POS RA Cable Mount 12 Terminal 1 Port CONN PLUG 12POS FMALE TYPE P R/A Circular Metric Connectors M23 A Rotatable R/A Plug 12 Pos. P Type PLUG, R/A, M23-A, TYPE P, 12WAY |
| 分类 |
商业参数
| 其他名称 | 889-1071 | 零件号别名 | 14R6999 ASDA020 |
| 产品类别 | Circular Metric Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | ||
电气参数
| 最大额定电流 | 10 A | ||
机械参数
| 重量 | 0.0863 | 直径 | 25.8 |
| 包装方式 | Bulk | 出线方向 | No |
| 方向 | P | 外壳样式 | Plug |
| 触点尺寸 | 1.0mm | 触头类型 | 12Signal |
| 安装类型 | Cable Mount | 连接器类型 | Plug for Male or Female Contacts |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 安装样式 | Cable | 插入角度 | :- |
| 本体材料 | :Zinc | 触头材料 | Brass |
| 总长度 | 53.9 | 端接样式 | Pin |
| 第一触头极性 | PIN | 触点数 | 12 |
| 位数 | 12 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Zinc Die Cast | 第一连接器安装类型 | :Cable |
产品信息
| 备注 | Contacts Not Provided | 类型 | Circular |
| 连接器性别 | PL | 系列 | M23 |
| 产品特性 | Shielded | 产品子类型 | Connectors |
环境参数
| 防护等级 | IP67 - Dust Tight, Waterproof | ||
文档与媒体
相关型号
MA1JAP1200
amphenol-sine systems
Conn Circular PIN 12 POS ST Cable Mount 12 Terminal 1 Port CONN RCPT 12POS MALE TYPE P STR 12 Pole Female Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Circular Metric Connectors M23 A-Series 12 Pos. St Extension P Type EXTENSION PLUG, M23-A, TYPE P, 12WAY Conn; Circ; Plug; P Type; CCW; Male; Extension, ; 12 Pos; M23; A Ser. Extension (cable receptacle) 12P 12, MA1JAP1200, Amphenol Amphenol 12路 电缆安装 直向 连接器 插座 , 公触点
MA1LAP1200
amphenol-sine systems
Conn Circular PIN 12 POS ST Panel Mount 12 Terminal 1 Port CONN RCPT 12POS MALE TYPE P STR 12 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Circular Metric Connectors M23 A-Series 12 Pos. St Recpt P Type RECEPT, PANEL, M23-A, TYPE P, 12WAY Conn; Circ; Receptacle; P Type; CCW; Male; 12 Pos; Straight; M23; A Ser. Straight Receptacle Type 12P 12, MA1LAP1200, Amphenol Amphenol 12路 面板安装 直向 连接器 插座 , 公触点
MA1RAP1200
amphenol-sine systems
Conn Circular PIN 12 POS RA Panel Mount 12 Terminal 1 Port CONN RCPT 12POS MALE TYPE P R/A 12 Pole Female Right Angle Panel Mount Industrial & Automation Circular Connector with Male Contacts RECEPT, R/A,, M23-A, TYPE P, 12WAY QRATE Amphenol 12路 面板安装 直角 连接器 插座 , 公触点
MA3CG-S1
amphenol-sine systems
Connector Accessories Cord Grip Zinc Die Cast CORD GRIP 4.5-10.5MM DIAM Cord Grip, crimp cable Dia.4.5~7.5mm Circular Metric Connectors M23 A Cord Grip IP67 Cable Range 4.5-10mm CORD GRIP, M23-A, DIA. 4.5-7.5MM Cord Grip; Crimp; Cable Dia. 4.5-7.5 mm; M23; A Ser. Cordgrip M23 4.5...7.5 mm, MA3CG-S1, Amphenol Amphenol MotionGrade 系列 IP67 灰色 电缆固定头 , 4.5mm 至 8mm电缆直径, -20°C至+130°C, M23螺纹
MA4FSR-A10.5
amphenol-sine systems
Connector Accessories Flex Grip Zinc Die Cast BOOT STRAIN RELIEF 10.5MM DIAM Flexible Strain Relief,Exit Dia.~10.5mm Circular Metric Connectors M23 A Flexgrip Exit Diameter 10.5mm CIRCULAR STRAIN RELIEF, ZINC Amphenol MotionGrade 系列 IP67 电缆固定头 , -20°C至+130°C, M23螺纹
MA4FSR-A8.5
amphenol-sine systems
Connector Accessories Flex Grip Zinc Die Cast BOOT STRAIN RELIEF 8.5MM DIAM Flexible Strain Relief, Exit Dia. ~8.5mm Circular Metric Connectors M23 A Flexgrip Exit Diameter 8.5mm CIRCULAR STRAIN RELIEF, ZINC QRATE Amphenol 电缆固定头 , -20°C至+130°C, M23螺纹
SC000035
amphenol-sine systems
Contact PIN Crimp ST Cable Mount CONTACT PIN CRIMP 18AWG AU 1.0MM M23 A Series Male Circular Connector Contact, Crimp Circular Metric Connectors Pin Contact Rock Solid 1.0mm CRIMP PIN, MACHINED, 1MM Contact; Pin; Crimp; 1.0 mm Dia.; M23; A, B Ser. Pin contact, machined Size 1 mm, SC000035, Amphenol Amphenol M23 A 系列 公 压接端接 圆形 连接器 触芯, 使用于M23 连接器
MA4FSR-A12.8
amphenol-sine systems
Connector Accessories Flex Grip Zinc Die Cast BOOT STRAIN RELIEF 12.8MM DIAM Flexible Strain Relief,Exit Dia.~12.8mm Circular Metric Connectors M23 A Flexgrip Exit Diameter 12-8mm CIRCULAR STRAIN RELIEF, ZINC Amphenol 电缆固定头 , -20°C至+130°C, M23螺纹
MA3CG-S3
amphenol-sine systems
Connector Accessories Cord Grip Zinc Die Cast CORD GRIP 10-12.5MM DIAM Cord Grip, crimp cable Dia.11~15mm Circular Metric Connectors CORD GRIP CRIMP CABLE DIA 10 12.5MM CORD GRIP, M23-A, DIA. 11.0-15.0MM Cord Grip; Crimp; Cable Dia; 11-15 mm; M23; A Ser. Cordgrip M23 11...15 mm, MA3CG-S3, Amphenol Amphenol MotionGrade 系列 IP67 灰色 电缆固定头 , 11mm 至 15mm电缆直径, -20°C至+130°C, M23螺纹
MA3CG-S2
amphenol-sine systems
Connector Accessories Cord Grip Zinc Die Cast CORD GRIP 10.5-15MM DIAM Cord Grip, crimp cable Dia.7.5~11mm Circular Metric Connectors M23 A Cord Grip IP67 Cable 7.5-11 mm CORD GRIP, M23-A, DIA. 7.5-11.0MM Cord Grip; Crimp; Cable Dia. 7.5-11 mm; M23; A Ser. Cordgrip M23 7.5...11 mm, MA3CG-S2, Amphenol Amphenol IP67 电缆固定头 , -20°C至+130°C, M23螺纹
SC000013
amphenol-sine systems
Contact SKT Crimp ST Cable Mount CONTACT SKT CRIMP 18AWG AU 1.0MM M23 A Series Female Circular Connector Contact, Crimp Circular Metric Connectors Socket Contact Rock Solid 1.0mm CRIMP SOCKET, ROCKSOLID, 1MM Contact; Socket; Crimp; 1.0 mm Dia.; RockSolid; M23; A, B Ser. Socket contact, machined Size 1 mm, RockSolid, SC000013, Amphenol Amphenol M23 A 系列 母 压接端接 圆形 连接器 触芯, 使用于M23 连接器
SC000044
amphenol-sine systems
Contact SKT Crimp ST Cable Mount CONTACT SKT CRIMP 18AWG AU 1.0MM M23 A Series Female Circular Connector Contact, Crimp Circular Metric Connectors Skt Contact 1.0mm RockSolid Machined CRIMP SOCKET, SLIT MACHINED, 1MM Contact; Socket; Split Machined, ; Crimp; 1.0 mm Dia.; M23; A, B Ser. Socket contact, machined Size 1 mm, SC000044, Amphenol Amphenol M23 A 系列 母 压接端接 圆形 连接器 触芯, 使用于M23 连接器

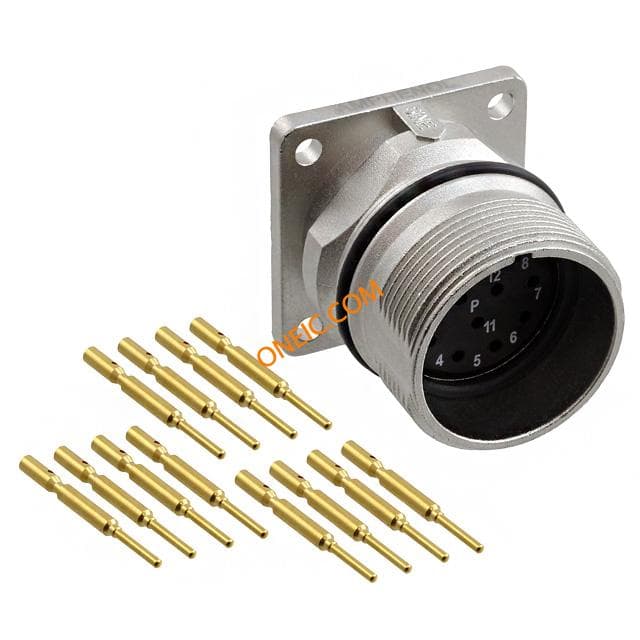

MA1LAP1200-KIT
