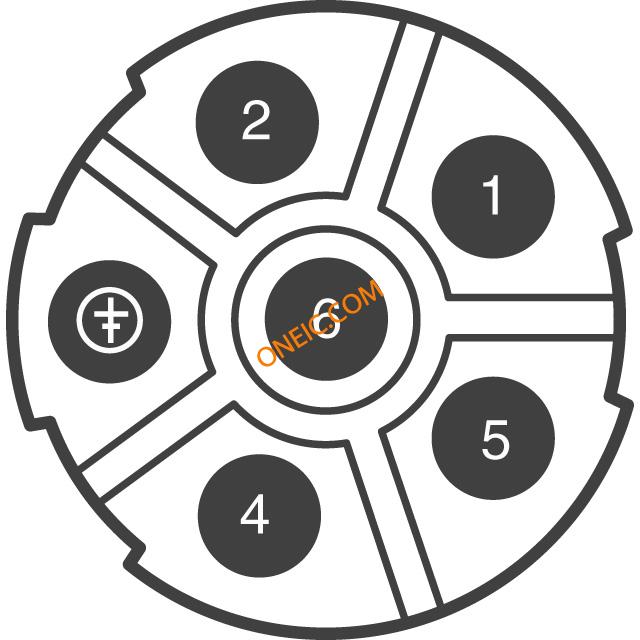

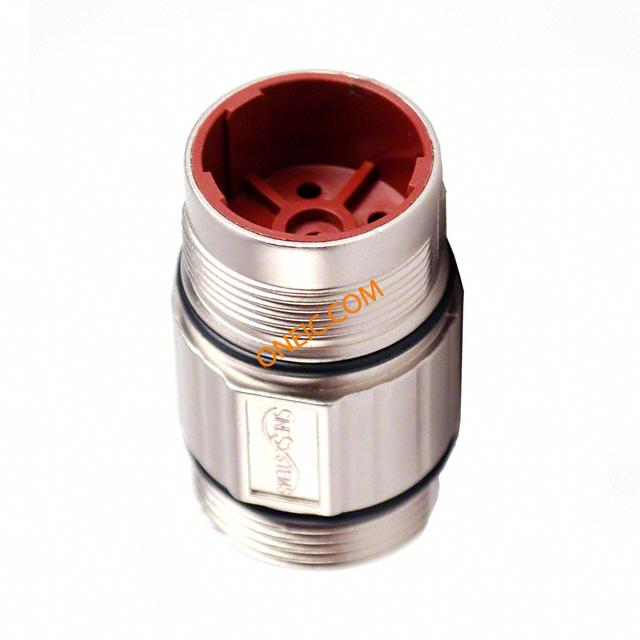

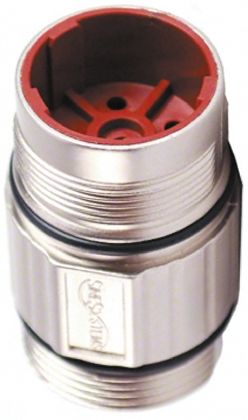

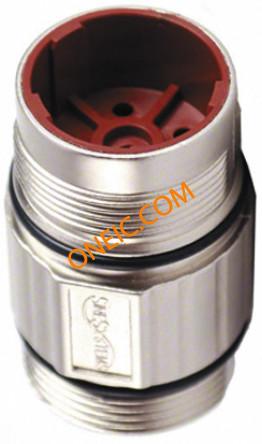

MB1JJN0600
| 制造商 | |
| 描述 | Conn Circular SKT 6 POS ST Cable Mount 6 Terminal 1 Port CONN RCPT 6POS MALE STR 6 Pole Female Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Circular Metric Connectors M23 B-Series Strt Extension 6 Pos. EXTENSION PLUG, M23-B, 6WAY, PIN Conn; Circ; Plug; Male; Extension; 6 Pos; Crimp; M23; B Ser. Amphenol 6路 电缆安装 直向 连接器 插座 , 母触点 |
| 分类 |
商业参数
| 其他名称 | 889-1100 | 零件号别名 | 14R7025 |
| 产品类别 | Circular Metric Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | ||
电气参数
| 测试电压 | 6000V | 额定电压 | 630 V ac/dc |
| 最大额定电流 | 28A | 短路电流 | 30A |
机械参数
| 重量 | 0.0403 | 直径 | 25 |
| 材料（通用） | Zinc Die-Cast | 包装方式 | Bulk |
| 出线方向 | No | 方向 | Keyed |
| 外壳样式 | Plug | 触点尺寸 | 2.0mm |
| 触头类型 | 6Signal | 安装类型 | Cable Mount |
| 连接器类型 | Receptacle for Male Contacts | 接触镀层 | Gold |
| 紧固类型 | Threaded | 安装样式 | Cable |
| 插入角度 | :- | 本体材料 | :Zinc |
| 触头材料 | Brass | 端接样式 | Crimp |
| 第一触头极性 | SKT | 触点数 | 6 |
| 位数 | 6 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Zinc Die Cast | 第一连接器安装类型 | :Cable |
产品信息
| 备注 | Contacts Not Provided | 类型 | Circular |
| 连接器性别 | RCP | 系列 | M23 |
| 产品特性 | Shielded | 制造商全称 | B Series |
| 产品子类型 | Connectors | ||
环境参数
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | +130°C |
文档与媒体
相关型号
MB1CKN0600
amphenol-sine systems
Conn Circular SKT 6 POS ST Cable Mount 6 Terminal 1 Port CONN PLUG 6POS FEMALE STR SHORT 6 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Circular Metric Connectors M23 B-Series St Plug 6 Position PLUG, M23-B, 6WAY, SKT Conn; Circ; Plug; Female; 6 Pos; HC Crimp; Short Housing; M23; B Ser. Amphenol 6路 电缆安装 直向 连接器 插头 , 母触点

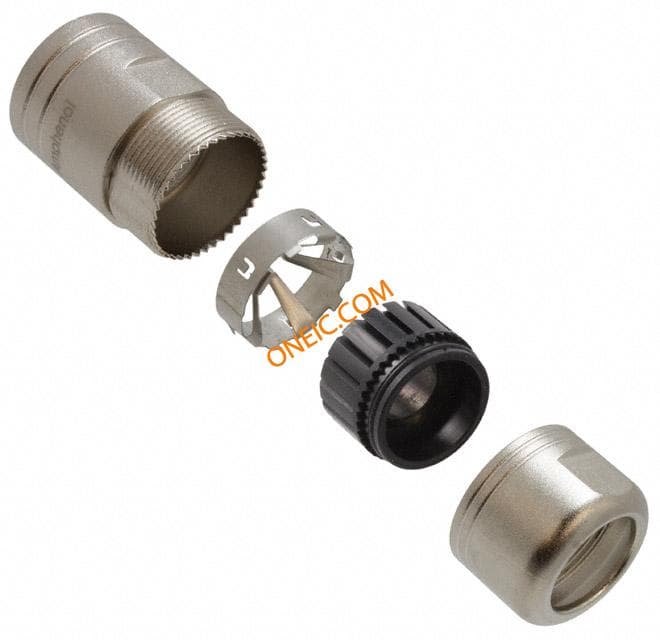

MB3CG-S1
amphenol-sine systems
Connector Accessories Cord Grip Zinc Die Cast CORD GRIP 7.5-10.5MM DIAM Cord Grip, Cable Range 7.5 ~ 11mm Circular Metric Connectors M23 B Cord Grip IP67 Cable 7.5-10.5mm CORD GRIP, M23-B, DIA. 7.5-11.0MM Cord Grip; Cable Dia. 7.5-11 mm; M23; BSer. Amphenol MotionGrade 系列 IP67 灰色 电缆固定头 , 7.5mm 至 11mm电缆直径, -20°C至+130°C, M23螺纹
MB3CG-S2
amphenol-sine systems
Connector Accessories Cord Grip Zinc Die Cast CORD GRIP 10.5-15MM DIAM Cord Grip, Cable Range 11 ~ 14.5mm Circular Metric Connectors M23 B Cord Grip IP67 Cable 10.5-15mm CORD GRIP, M23-B, DIA. 11.0-14.5MM Cord Grip; Cable Dia. 11-14.5 mm; M23; B. Ser. Amphenol MotionGrade 系列 IP67 灰色 电缆固定头 , 11mm 至 15mm电缆直径, -20°C至+130°C, M23螺纹
MB4FSR-B14.5
amphenol-sine systems
Connector Accessories Flex Grip Zinc Die Cast BOOT STRAIN RELIEF 14.5MM DIAM Flexible Strain Relief, Exit Dia. ~14mm Circular Metric Connectors M23 B Flexgrip Exit Dia. 14.5mm QRATE Amphenol 电缆固定头 , -20°C至+130°C, M23螺纹
MB4FSR-B17
amphenol-sine systems
Connector Accessories Flex Grip Zinc Die Cast BOOT STRAIN RELIEF 17MM DIAM Flexible Strain Relief, Exit Dia. ~17mm Circular Metric Connectors M23 B Flexgrip Exit Dia. 17mm QRATE Amphenol 电缆固定头 , -20°C至+130°C, M23螺纹

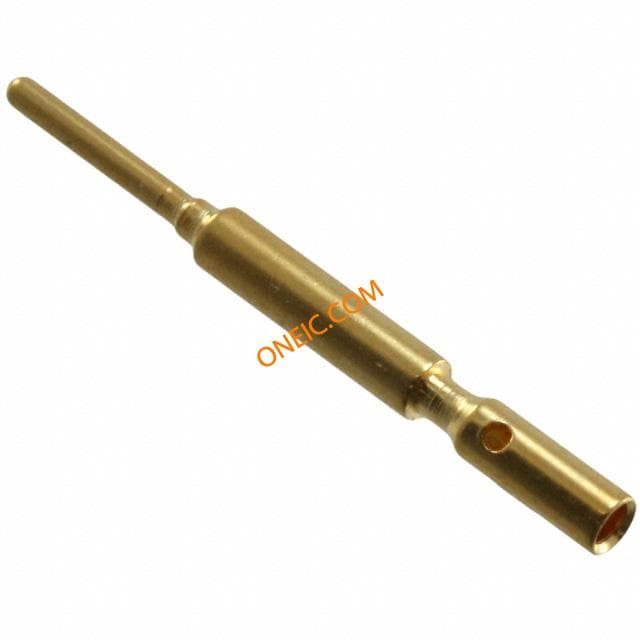

SC000035
