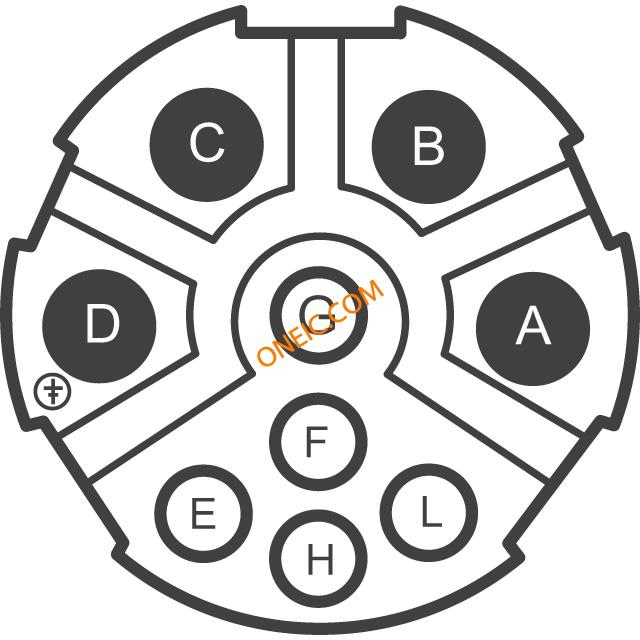

MB1JJN0900
| 制造商 | |
| 描述 | Conn Circular PIN 9 POS ST Cable Mount 9 Terminal 1 Port CONN RCPT 9POS MALE STR 9 Pole Female Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Circular Metric Connectors M23 B-Series Strt Extension 9 Pos. EXTENSION PLUG, M23-B, 9WAY, PIN Conn; Circ; Plug; Male; Extension; 8 Pos; Crimp; M23; B Ser. Amphenol 9路 电缆安装 直向 连接器 插座 , 公触点 |
| 分类 |
商业参数
| 其他名称 | 889-1099 | 零件号别名 | 14R7027 |
| 产品类别 | Circular Metric Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 抗辐射加固 | No |
电气参数
| 测试电压 | 6000V | 额定电压 | 630 V ac/dc |
| 最大额定电流 | 30A | 短路电流 | 30A |
机械参数
| 重量 | 0.0402 | 直径 | 25 mm |
| 材料（通用） | Zinc Die-Cast | 包装方式 | Bulk |
| 出线方向 | No | 方向 | Keyed |
| 外壳样式 | Plug | 触点形式 | 9Signal |
| 触点尺寸 | 1.0mm, 2.0mm | 触头类型 | Crimp |
| 安装类型 | Cable Mount | 连接器类型 | Receptacle for Male Contacts |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 安装样式 | Cable | 插入角度 | :- |
| 本体材料 | :Zinc | 触头材料 | Brass |
| 端接样式 | Crimp | 第一触头极性 | Male |
| 触点数 | 9 | 位数 | 9 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Zinc Die Cast |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Circular |
| 连接器性别 | RCP | 系列 | M23 |
| 产品特性 | Shielded | 制造商全称 | B Series |
| 产品子类型 | Connectors | ||
环境参数
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | +130°C |
