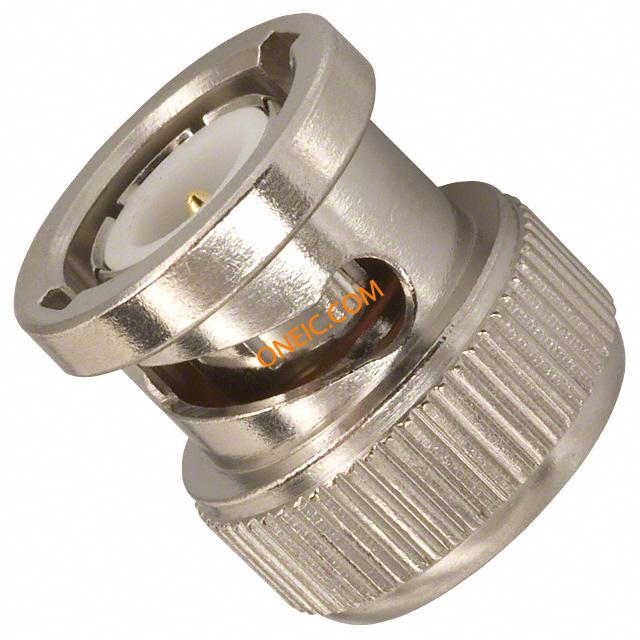

点击放大查看
202114
| 制造商 | Amphenol Corporation |
| 描述 | Connector Accessories BNC Male Shorting Cap Brass Nickel Finish CONN BNC PLUG SHORTING CAP connector accessory;rf coaxial;bnc male shorting cap less chain;for jacks&recept RF Connector Accessories BNC MALE SHORTING CAP RF/COAXIAL SHORTING CAP Coaxial/RF; Cap-NoChain; BNC; Shorting; Male; Brass; forBNCFemale; Straight |
| 分类 |
商业参数
| 产品 | Accessories | 其他名称 | ACX1069 |
| 零件号别名 | 319-0063 99H6102 | 产品类别 | RF Connector Accessories |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | ||
机械参数
| 重量 | 0.299123 oz | 直径 | 14.5 |
| 电缆类型 | RG174, 188, 316 | 本体表面处理 | Nickel |
| 基体材料 | Brass | 行程角度 | Straight |
| 连接器类型 | :Intra Series Coaxial | 外壳涂层 | Nickel |
| 连接器样式 | BNC | 本体材料 | Brass |
| 总长度 | 18 | 主要材料 | BNC |
| 第二连接器性别 | :- | 中心触点表面处理 | Gold |
| 中心触点材料 | Brass | 供应商器件封装 | :- |
| 第一连接器安装特征 | :Plug | ||
产品信息
| 类型 | Cap | 连接器性别 | Male |
| 附件类型 | Cap (Cover), Shorting | 射频系列/标准 | 202114 |
| 应用细节 | Commercial | 转换端（适配器端） | :BNC |
| 转换自（适配器端） | :BNC Coaxial | 适用产品/相关产品 | BNC Jacks |
| 适用/相关制造商 | BNC Female | ||
