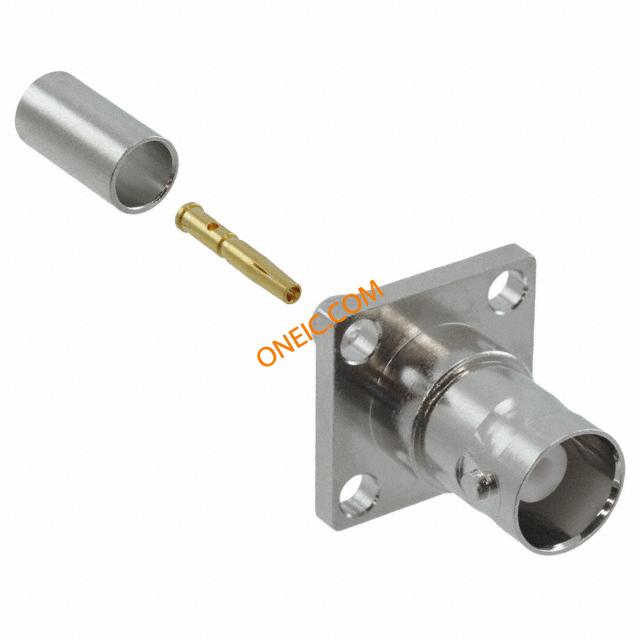

112272
| 制造商 | Amphenol Corporation |
| 描述 | Conn BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Panel Mount Gold RF Connectors BNC PANEL CRIMP JACK RG58-50 OHM CONN BNC JACK STR 50 OHM CRIMP RF Connectors / Coaxial Connectors BNC PANEL CRIMP JACK RG58-50 OHM BNC, BNC PANEL CRP JACK RG58-50~-TF |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1977 |
| 产品类别 | RF Connectors | 标准包装数量 | Bag |
合规参数
| RoHS | RoHS Compliant By Exemption | ||
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500 V | 耦合系数 | Bayonet |
| 最大频率 | 4 GHz | ||
机械参数
| 包装方式 | Bulk | 电缆类型 | RG-58, RG-58A, RG-58C, RG-141, RG-303, LMR195, Belden 7806A |
| 本体表面处理 | Nickel | 电缆组 | RG-58, LMR-195 |
| 方向 | Straight | 端接方式 | Crimp |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Panel Mount | 连接器类型 | Panel Jack Crimp Attachments for Flexible Cable/Receptacle |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 连接器样式 | BNC | 触头材料 | Phosphor Bronze |
| 端接样式 | Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Crimp | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Phosphor Bronze |
产品信息
| 类型 | BNC | 连接器性别 | RCP |
| 极性 | Normal | 连接类型 | Flexible Cable |
| 射频系列/标准 | 112272 | ||
环境参数
| 插拔次数 | 500 | 工作温度 | - 65 C to + 165 C |
