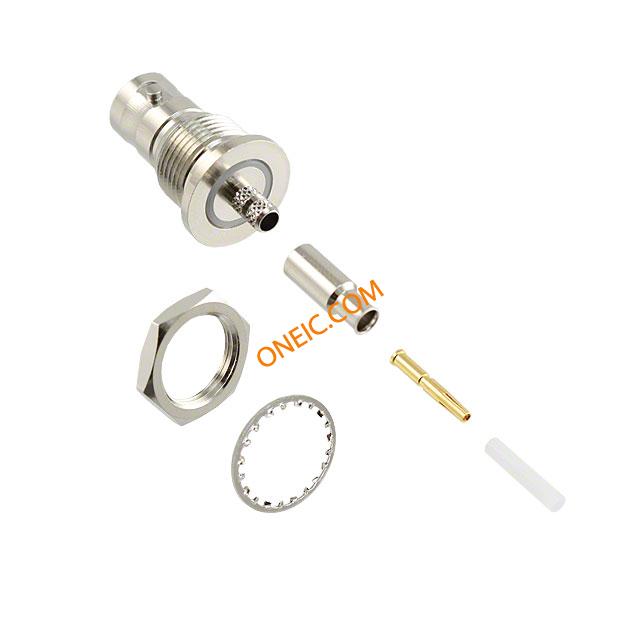

112252
| 制造商 | Amphenol Corporation |
| 描述 | Conn BNC F 0Hz to 4GHz 50Ohm Crimp ST Panel Mount Gold CONN BNC JACK STR 50 OHM CRIMP RF Connectors / Coaxial Connectors BNC BULKHEAD ISOL CRIMP JACK RG174 RF/COAXIAL, BNC BHD JACK STR 50 OHM CRIMP connector, rf coaxial, bnc bulkhead jack, isolated, crimp, 50 ohm, rg174, 316, lmr100 |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1839 |
| 零件号别名 | 319-0511 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | ||
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 耦合系数 | Bayonet |
| 最大频率 | 4GHz | ||
机械参数
| 重量 | 0.469144 oz | 直径 | 15.5 |
| 包装方式 | Bulk | 电缆类型 | RG-174, RG-188A, RG-316, Belden 7805A |
| 本体表面处理 | Nickel | 电缆组 | RG-174, 316, LMR-100 |
| 方向 | Straight | 端接方式 | Crimp |
| 重量（g） | 14.00000 | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Panel Mount |
| 行程角度 | Straight | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 外壳涂层 | Nickel | 壳体镀层 | Nickel |
| 连接器样式 | BNC | 连接器用途 | Bayonet |
| 触头材料 | Phosphor Bronze | 壳体材料 | Brass |
| 总长度 | 28.5 | 主要材料 | BNC |
| 端接样式 | Cable - Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Crimp | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 类型 | Polytetrafluoroethylene | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Phosphor Bronze | 供应商器件封装 | :Straight Bulkhead Jack |
产品信息
| 类型 | BNC | 连接器性别 | F |
| 产品特性 | Isolated | 极性 | Standard |
| 连接类型 | Flexible Cable | 射频系列/标准 | 112252 |
| 应用细节 | Commercial | ||
环境参数
| 插拔次数 | 500 | 工作温度 | - 65 C to + 165 C |
