点击放大查看

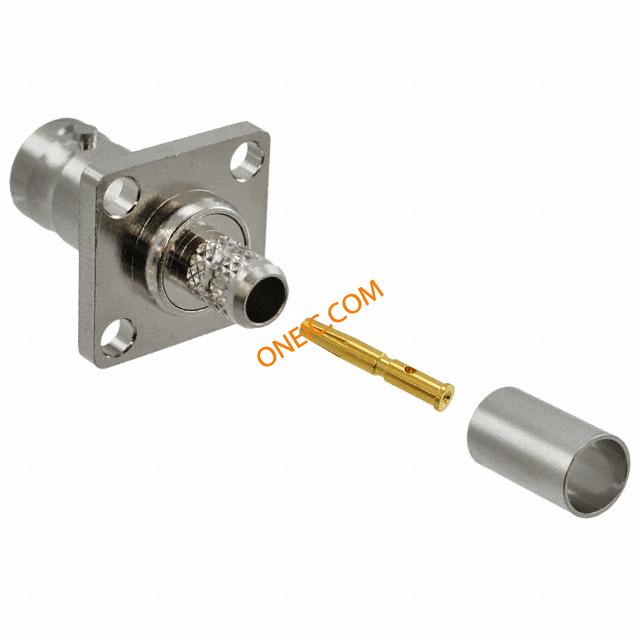

112275
| 制造商 | Amphenol Corporation |
| 描述 | CONN JACK BNC STR CRIMP RG-59 CONN BNC JACK STR 75 OHM CRIMP RF Connectors / Coaxial Connectors Pannel Crimp Plug (RG-59/u cable) |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1953 |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 阻抗 | 75 Ohm | 额定电压 | 500V |
| 耦合系数 | Bayonet | 最大频率 | 4GHz |
机械参数
| 重量 | 0.470308 oz | 包装方式 | Bulk |
| 电缆类型 | RG-59, RG-62, RG-140, RG-210 | 本体表面处理 | Nickel |
| 电缆组 | RG-59 | 方向 | Straight |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Panel Mount, Square Flange | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 连接器样式 | BNC | 触头材料 | Phosphor Bronze |
| 端接样式 | Cable - Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Crimp | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Phosphor Bronze |
产品信息
| 连接器性别 | Jack | 极性 | Standard |
| 射频系列/标准 | BNC | ||
环境参数
| 插拔次数 | 500 | 工作温度 | - 65 C to + 165 C |
