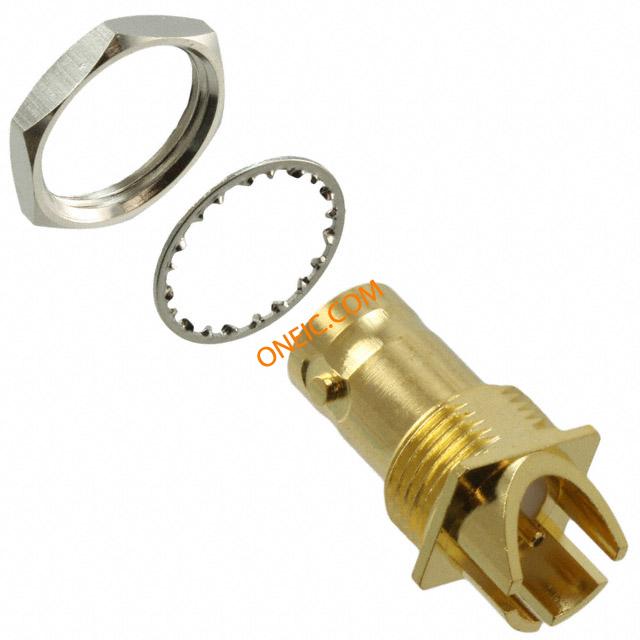

112740-13
| 制造商 | Amphenol Corporation |
| 描述 | Conn BNC RCP 75Ohm Solder ST Panel Mount Gold CONN BNC JACK 75 OHM EDGE MNT RF Connectors / Coaxial Connectors BNC END LAUNCH JACK 14MM HEX .062 PCB Conn BNC RCP 0Hz to 4GHz 75Ohm Solder ST Panel Mount Gold RF/COAXIAL BNC JACK STR 75OHM EDGE MOUNT JACK, BNC, STR, 75OHM, SOLDER BNC End Launch Jk for 0.062 inch PCB, 75 Ohm, Blkhd, 14mm Hex Nut |
| 分类 |
商业参数
| 产品 | PCB Connectors | 零件号别名 | 112740-13 |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | 抗辐射加固 | No |
电气参数
| 阻抗 | 75 Ohm | 额定电压 | 500V |
| 耦合系数 | Bayonet | 最大频率 | 4GHz |
机械参数
| 重量 | 0.299123 oz | 直径 | 15.88 mm |
| 包装方式 | Bulk | 电缆类型 | :- |
| 本体表面处理 | Gold | 方向 | Straight |
| 端接方式 | Solder | 基体材料 | Brass |
| 外壳颜色 | Gold | 安装类型 | Panel Mount |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 安装样式 | Panel |
| 壳体镀层 | Gold | 连接器样式 | BNC |
| 触头材料 | Phosphor Bronze | 总长度 | 25.55 mm |
| 端接样式 | PCB - End Launch | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 类型 | Polytetrafluoroethylene | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Phosphor Bronze | 供应商器件封装 | Bulkhead |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 类型 | BNC | 连接器性别 | RCP |
| 系列 | :- | 已删除 | Compliant |
| 极性 | Standard | 连接类型 | PCB |
| 射频系列/标准 | 112740 | ||
环境参数
| 插拔次数 | 500 | 工作温度 | - 65 C to + 165 C |
文档与媒体
相关型号
142-0000-005
Johnson / Emerson Connectivity Solutions
RF Connectors 70pc RF ADAPTER KIT KIT RF ADAPTER 50 OHM 72PCS connector;adapter kit;72 in-series and between series adapters;50 ohm RF Connectors / Coaxial Connectors 70pc RF ADAPTER KIT RF Adapter Kit 72 In Series and Between Series RF/Coxial Adapter Kit, 50 Ohm
202100-10
amphenol connex
Connector Accessories BNC Male Cap CONN CAP BNC MALE NO CHAIN RF Connector Accessories BNC TERMINATOR MALE CAP NO CHAIN Coaxial/RF; Cap-NoChain; BNC; Terminator; Male; Brass; forFemaleConnector; Straight CONN CAP (COVER) FOR BNC JACKS
202114
amphenol connex
Connector Accessories BNC Male Shorting Cap Brass Nickel Finish CONN BNC PLUG SHORTING CAP connector accessory;rf coaxial;bnc male shorting cap less chain;for jacks&recept RF Connector Accessories BNC MALE SHORTING CAP RF/COAXIAL SHORTING CAP Coaxial/RF; Cap-NoChain; BNC; Shorting; Male; Brass; forBNCFemale; Straight
202100
Amphenol Connex
RF Connectors BNC MALE CAP AND CHAIN Connector Accessories BNC Male Cap with Chain Brass Nickel Finish CONN BNC PLUG CAP & CHAIN connector accessory;rf coaxial;bnc male cap & chain;for jacks and receptacles RF Connector Accessories BNC MALE CAP AND CHAIN Connector Accessories BNC Male Cap And Chain Nickel DUST CAP, BRASS Coaxial/RF; Cap-w/Chain; BNC; Protective; Male; Brass; forJacksandRecep; Straight 202100 BNC Male Cap with Chain
112740-13
amphenol connex
Conn BNC RCP 75Ohm Solder ST Panel Mount Gold CONN BNC JACK 75 OHM EDGE MNT RF Connectors / Coaxial Connectors BNC END LAUNCH JACK 14MM HEX .062 PCB Conn BNC RCP 0Hz to 4GHz 75Ohm Solder ST Panel Mount Gold RF/COAXIAL BNC JACK STR 75OHM EDGE MOUNT JACK, BNC, STR, 75OHM, SOLDER BNC End Launch Jk for 0.062 inch PCB, 75 Ohm, Blkhd, 14mm Hex Nut
B1121A9-003-NT3G-75
Amphenol

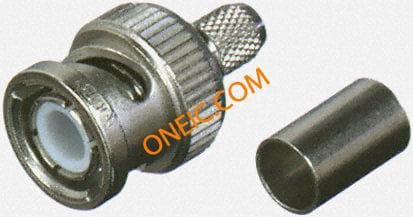

BNC Straight crimp plug 75 ohm PLUG, BNC, STRAIGHT, 75R Amphenol 直 75Ω 电缆安装 BNC 连接器 插头, 压接 端接, RG59, RG59 A/B, RG62 A/B电缆, 镀镍本体
